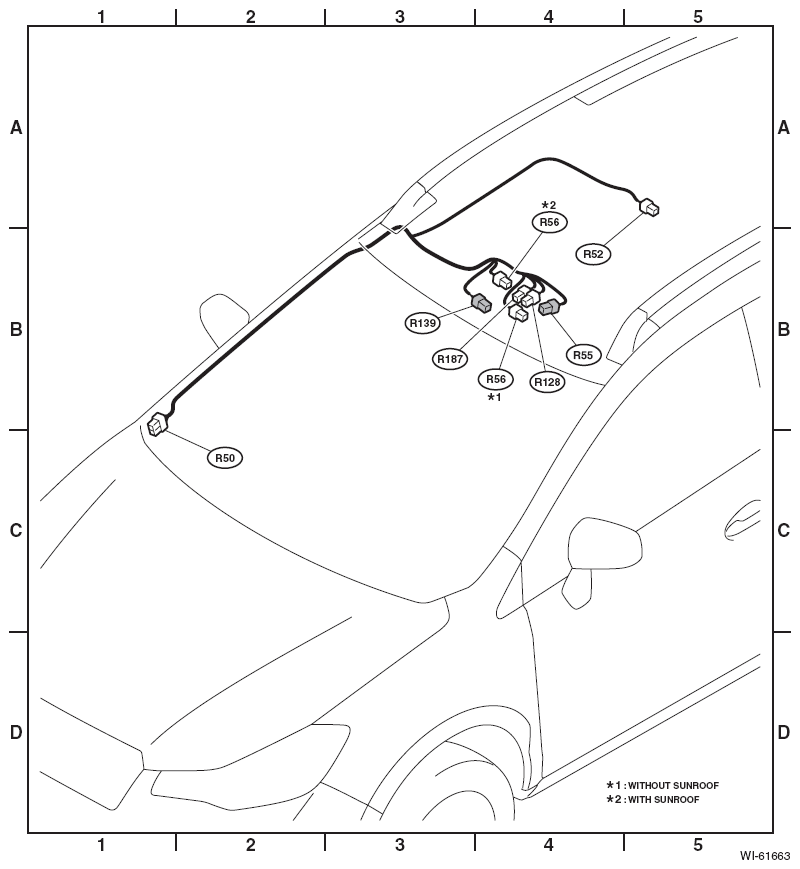

Roof Cord: Location
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| R50 | 20 | (1) | B-1 | B90 | Bulkhead wiring harness | ||
| R52 | 3 | (1) | A-5 | Room light | |||
| R55 | 8 | (1) | B-4 | Sunroof motor assembly | |||
| R56 | 6 | (1) | B-4 | Spot map light (without sunroof) | |||
| 10 | (1) | B-4 | Spot map light (with sunroof) | ||||
| R128 | 5 | (1) | B-4 | Sunroof switch | |||
| R139 | 3 | (1) | B-4 | Rear view mirror | |||
| R187 | 5 | Black | B-4 | Sunroof switch (tilt) | |||
|
|||||||
