Subaru
>>
2016
>>
Crosstrek Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Rearview Mirror System
>>
Wiring Diagram
Rearview Mirror System: Wiring Diagram

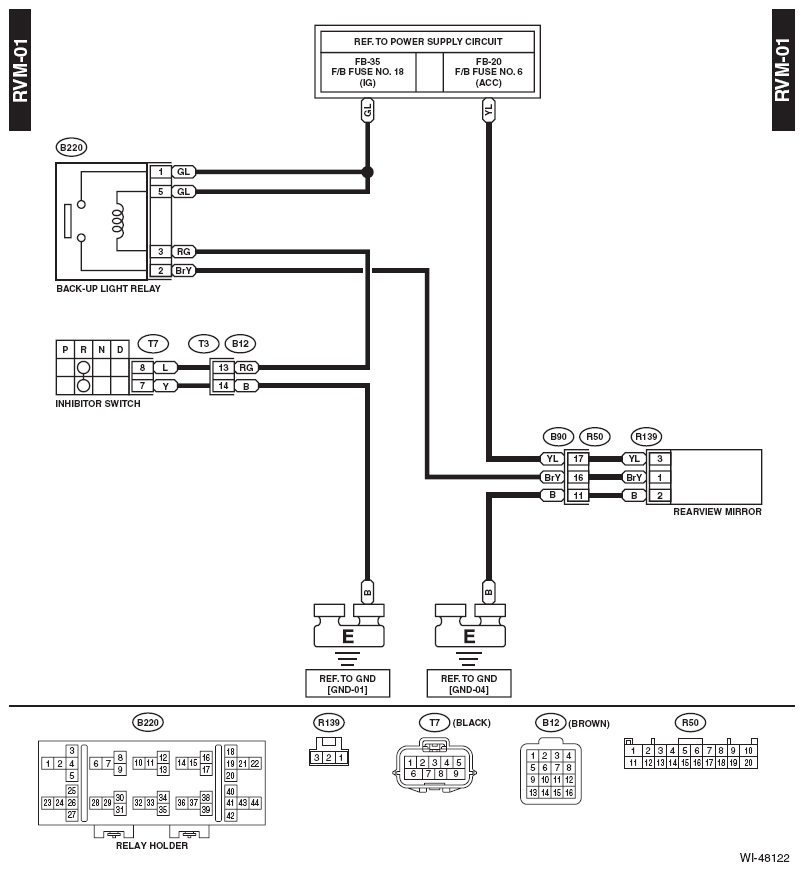

Fig 1: Rearview Mirror System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
