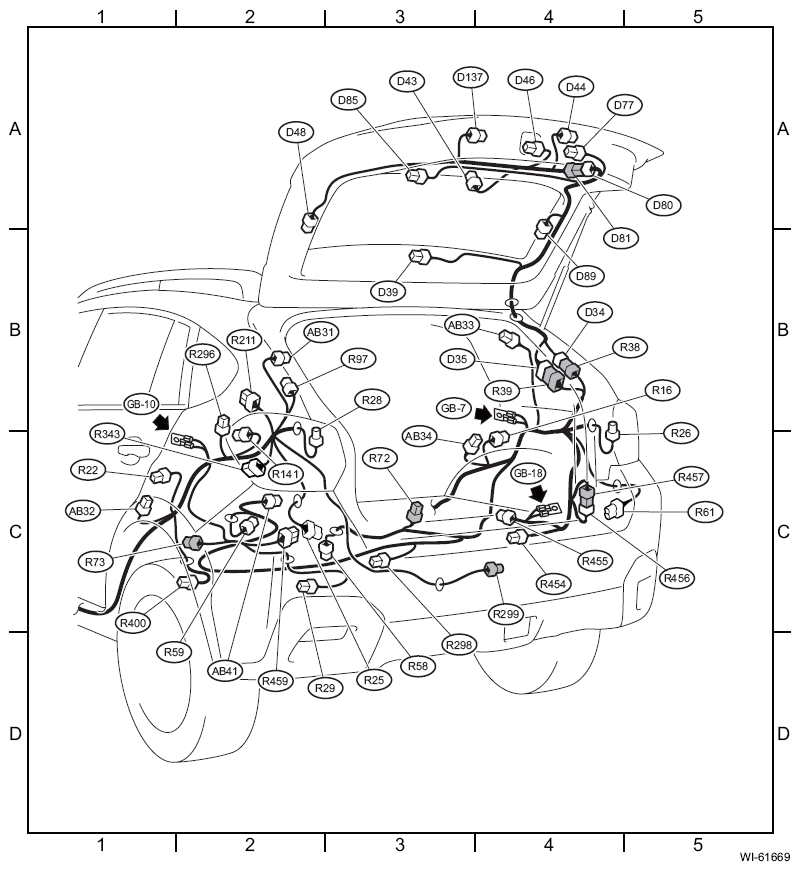

Rear Wiring Harness and Rear Gate Cord: Location
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| R16 | 3 | (1) | C-4 | Rear door switch RH | |||
| R22 | 3 | (1) | C-1 | Rear door switch LH | |||
| R25 | 10 | Black | C-2 | Radar sensor LH (master) | |||
| R26 | 6 | Gray | C-4 | Rear combination light RH | |||
| R28 | 6 | Gray | C-2 | Rear combination light LH | |||
| R29 | 3 | Black | C-2 | Rear vehicle height sensor | |||
| R38 | 8 | B-4 | D34 | Rear gate cord | |||
| R39 | 14 | Gray | B-4 | D35 | |||
| R58 | 4 | Gray | C-2 | Fuel pump assembly | |||
| R59 | 2 | C-2 | Fuel sub level sensor | ||||
| R61 | 10 | Black | C-4 | Radar sensor RH (slave) | |||
| R72 | 2 | Light gray | C-3 | Rear ABS wheel speed sensor RH | |||
| R73 | 2 | Light gray | C-2 | Rear ABS wheel speed sensor LH | |||
| R97 | 1 | B-2 | Antenna feeder cord | ||||
| R141 | 2 | Light gray | C-2 | Luggage room light | |||
| R211 | 12 | (1) | B-2 | TPMS CM | |||
| R296 | 5 | (1) | B-2 | Receiver (with push button start) | |||
| R298 | 3 | (1) | C-3 | Keyless access interior antenna (center) | |||
| R299 | 6 | (1) | C-4 | Keyless access exterior antenna (rear) | |||
| R343 | 10 | Green | C-2 | J/C | |||
| R400 | 8 | Gray | C-2 | ELCM | |||
| R454 | 8 | (1) | C-4 | R436 | Inverter harness | ||
| R455 | 4 | (1) | C-4 | R446 | Electric oil pump inverter | ||
| R456 | 4 | (1) | C-4 | J/C | |||
| R457 | 4 | (1) | C-4 | ||||
| R459 | 14 | (1) | C-2 | R444 | Inverter harness | ||
|
|||||||
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| D34 | 8 | (1) | B-4 | R38 | Rear wiring harness RH | ||
| D35 | 14 | Gray | B-4 | R39 | |||
| D39 | 2 | (1) | B-3 | High-mounted stop light | |||
| D43 | 4 | (1) | A-4 | Rear wiper motor | |||
| D44 | 2 | (1) | A-4 | License plate light RH | |||
| D46 | 4 | (1) | A-4 | Rear gate lock actuator & latch switch | |||
| D48 | 1 | Black | B-2 | Rear defogger | |||
| D77 | 4 | (1) | A-4 | Rear lock button & rear gate opener button | |||
| D80 | 8 | (1) | A-4 | D81 | Rear gate cord | ||
| D81 | 8 | (1) | A-4 | D80 | |||
| D85 | 4 | (1) | A-3 | Rearview camera | |||
| D89 | 1 | Black | B-4 | Rear defogger | |||
| D137 | 2 | (1) | A-4 | License plate light LH | |||
|
|||||||
| Connector | Connecting to | ||||
|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description |
| AB31 | 2 | Black | B-2 | Curtain airbag module LH | |
| AB32 | 4 | Yellow | C-1 | Curtain airbag sensor LH | |
| AB33 | 2 | Black | B-4 | Curtain airbag module RH | |
| AB34 | 4 | Yellow | C-3 | Curtain airbag sensor RH | |
| AB41 | 2 | Yellow | C-2 | Satellite safing sensor | |
| * White or natural color | |||||
