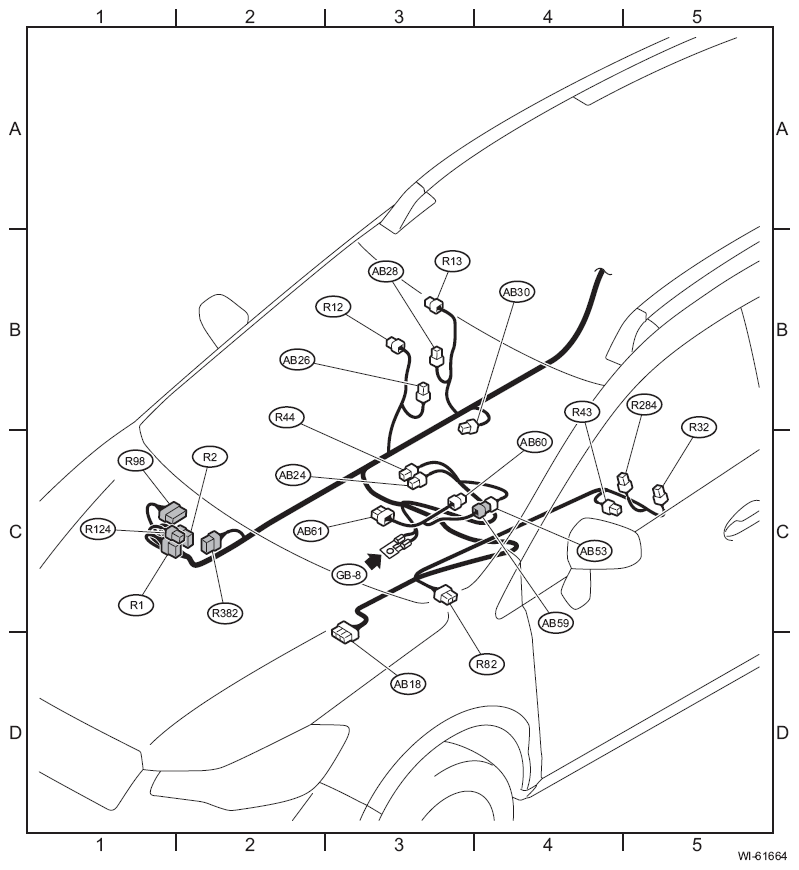

Rear Wiring Harness RH: Location
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| R1 | 20 | (1) | C-1 | B97 | Bulkhead wiring harness | ||
| R2 | 20 | (1) | C-2 | B98 | |||
| R12 | 3 | (1) | B-3 | Front door switch RH | |||
| R13 | 8 | (1) | B-3 | D28 | Rear door cord RH | ||
| R32 | 2 | (1) | C-5 | Rear accessory power supply socket | |||
| R43 | 8 | (1) | C-4 | Seat heater switch | |||
| R44 | 4 | (1) | C-3 | Seat heater RH | |||
| R82 | 19 | Black | C-3 | R81 | Rear wiring harness LH | ||
| R98 | 24 | C-1 | i53 | Instrument panel wiring harness | |||
| R124 | 2 | Yellow | C-1 | AB63 | Front door cord RH | ||
| R284 | 8 | (1) | C-5 | AUX input terminal | |||
| R382 | 10 | (1) | C-2 | i195 | Instrument panel wiring harness | ||
|
|||||||
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| AB18 | 24 | Yellow | D-3 | Airbag CM | |||
| AB24 | 4 | Yellow | C-3 | Side airbag module RH | |||
| AB26 | 2 | Black | B-3 | Pretensioner RH | |||
| AB28 | 4 | Yellow | B-3 | Side airbag sensor RH | |||
| AB30 | 2 | Yellow | B-3 | Lap seat belt pretensioner RH | |||
| AB53 | 3 | Dark gray | C-4 | AB59 | Occupant detection harness | ||
| AB59 | 3 | (1) | C-3 | AB53 | Rear wiring harness | ||
| AB60 | 2 | Yellow | C-3 | Buckle switch | |||
| AB61 | 10 | Black | C-3 | Occupant detection control module | |||
|
|||||||
