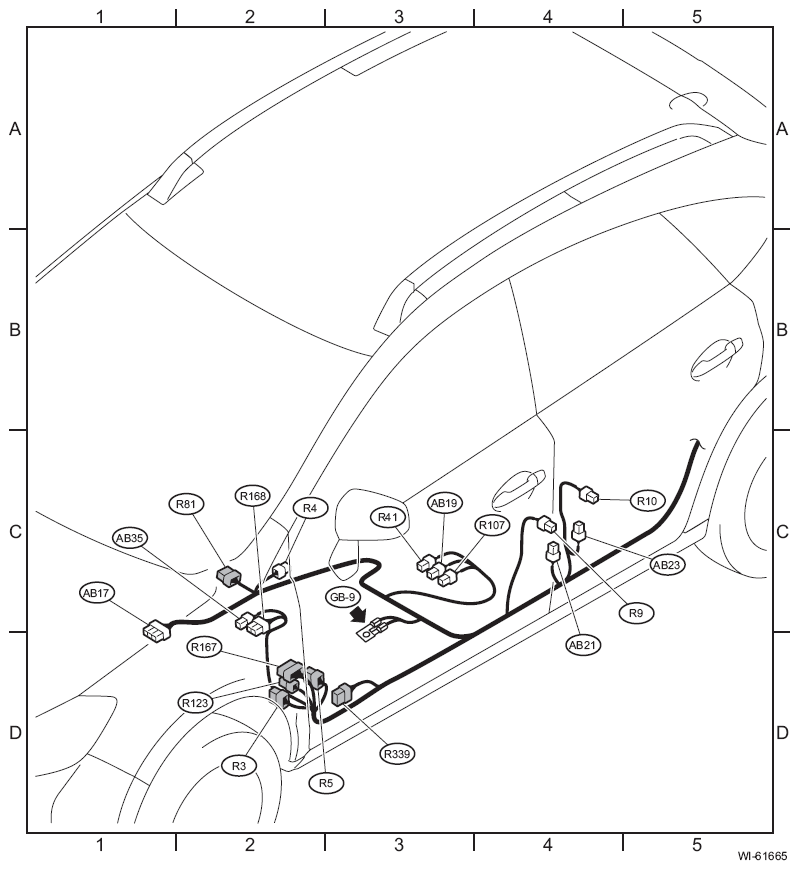

Rear Wiring Harness LH: Location
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| R3 | 20 | (1) | D-2 | B99 | Bulkhead wiring harness | ||
| R4 | 1 | Black | C-2 | Parking brake switch | |||
| R5 | 20 | (1) | D-2 | B92 | Bulkhead wiring harness | ||
| R9 | 3 | (1) | C-4 | Front door switch LH | |||
| R10 | 8 | (1) | C-4 | D22 | Rear door cord LH | ||
| R41 | 4 | (1) | C-3 | Seat heater LH | |||
| R81 | 19 | Black | C-2 | R82 | Rear wiring harness RH | ||
| R107 | 2 | C-3 | Seat belt switch LH | ||||
| R123 | 2 | Yellow | D-2 | AB62 | Front door cord LH | ||
| R167 | 24 | (1) | D-2 | i102 | Instrument panel wiring harness | ||
| R168 | 20 | (1) | C-2 | F/B | |||
| R339 | 10 | (1) | D-3 | i2 | Instrument panel wiring harness | ||
|
|||||||
| Connector | Connecting to | ||||
|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description |
| AB17 | 24 | Yellow | D-1 | Airbag CM | |
| AB19 | 4 | Yellow | C-3 | Side airbag module LH | |
| AB21 | 2 | Black | C-4 | Pretensioner LH | |
| AB23 | 4 | Yellow | C-4 | Side airbag sensor LH | |
| AB35 | 2 | Black | C-2 | F/B | |
| * White or natural color | |||||
