Rear Wiring Harness (HEV): Location

Connector Connecting to
No. Pole Color Area No. Description
R432 12 Gray C-4   Drive motor inverter
R433 4 Black C-3   DC/DC converter
R434 8 Black C-3   Drive motor inverter amperage sensor
R435 19 Black C-3 R437 Inverter harness
R436 8 (1) C-3 R454 Rear wiring harness
R437 19 Black C-3 R435 Inverter harness
R438 4 (1) C-3   High voltage battery cooling fan
R439 3 (1) C-2   Keyless access interior antenna (rear)
R440 12 (1) C-2   Relay holder
R441 10 Blue C-2   J/C
R442 22 Green C-2   DMCM
R443 26 Green C-2
R444 14 (1) C-2 R459 Rear wiring harness
R445 8 (1) B-2   High voltage battery
R446 4 (1) C-4 R455 Rear wiring harness
(1) White or natural color
Connector Connecting to
No. Pole Color Area No. Description
HV2 - - C-3   Drive motor inverter
HV3 - - C-3
HV4 - - C-3   Drive motor inverter amperage sensor
HV5 - - C-4   Drive motor inverter
HV6 - - C-4   Electric noise filter
HV7 - - B-4
HV8 - - B-3   High voltage battery
HV9 - - C-4   Electric oil pump inverter
HV10 - - C-4
* White or natural color

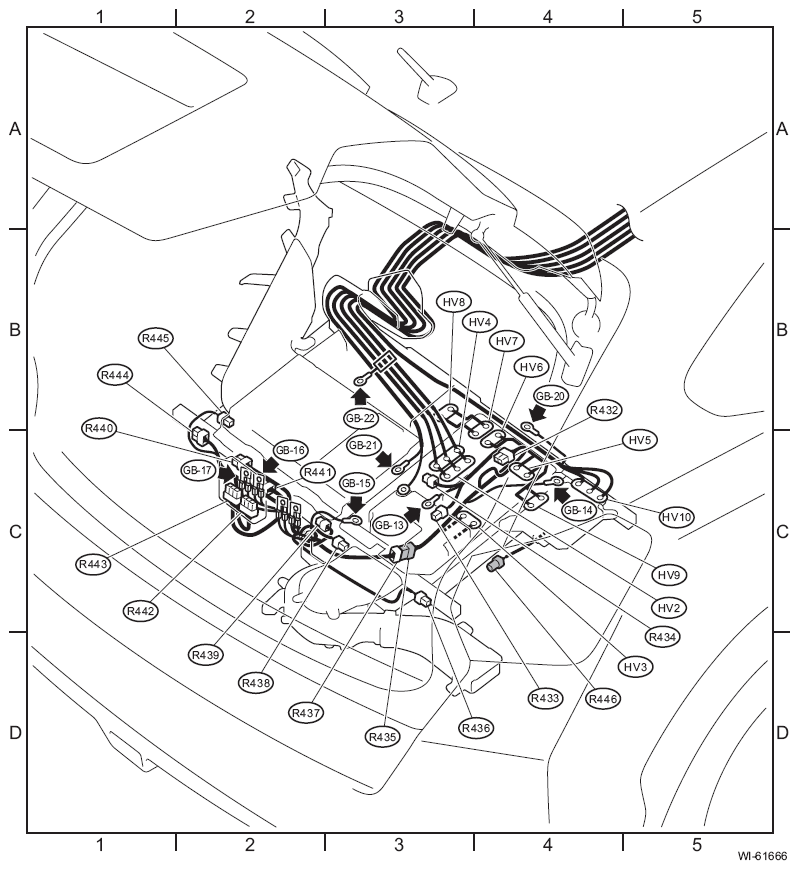

Fig 1: Rear Wiring Harness Location (HEV)
G11909393Courtesy of SUBARU OF AMERICA, INC.
