Push Button Start System: Wiring Diagram

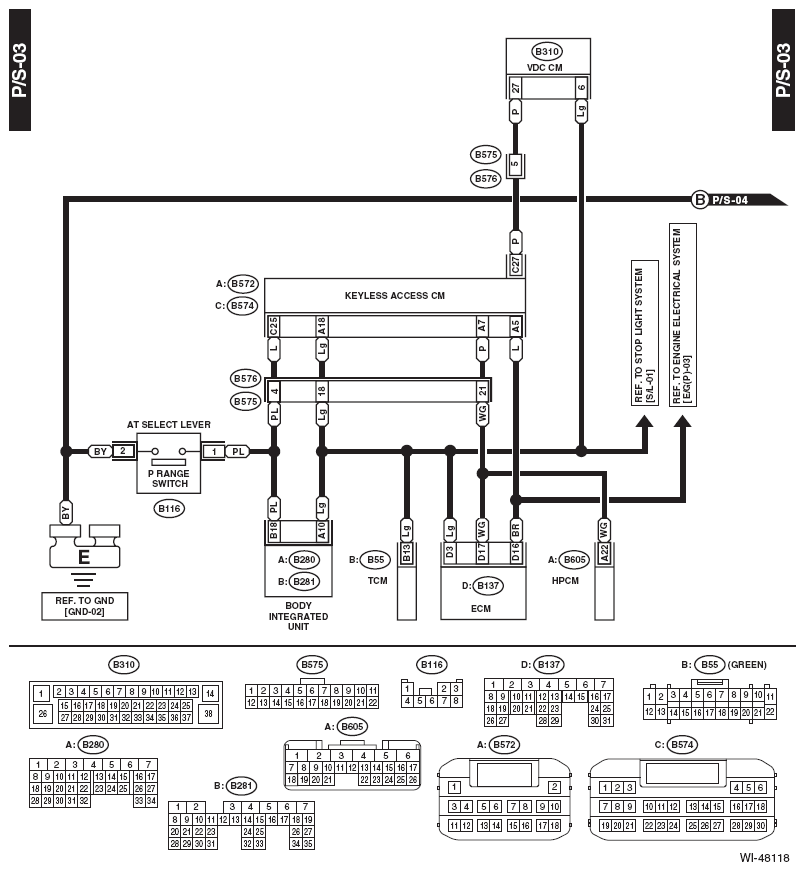

Fig 1: Push Button Start System Wiring Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

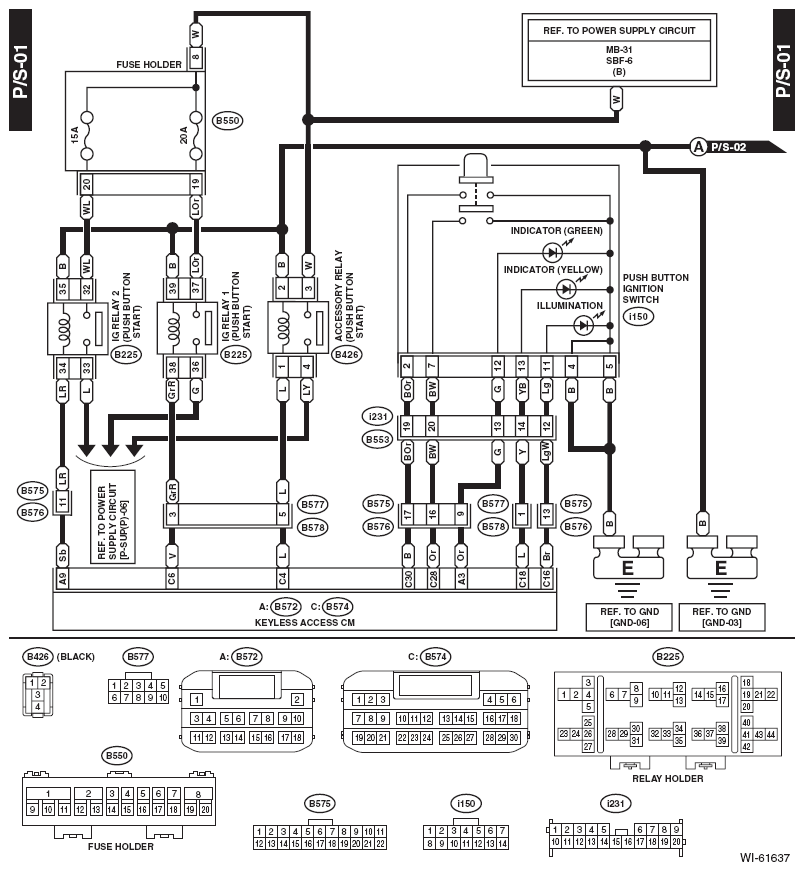

Fig 2: Push Button Start System Wiring Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

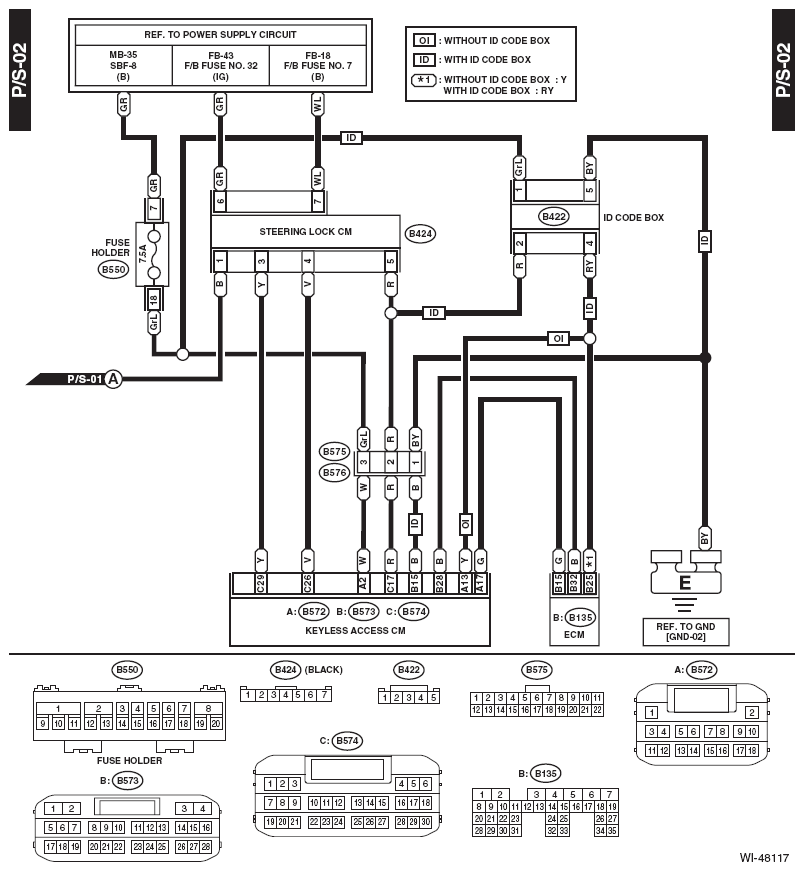

Fig 3: Push Button Start System Wiring Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

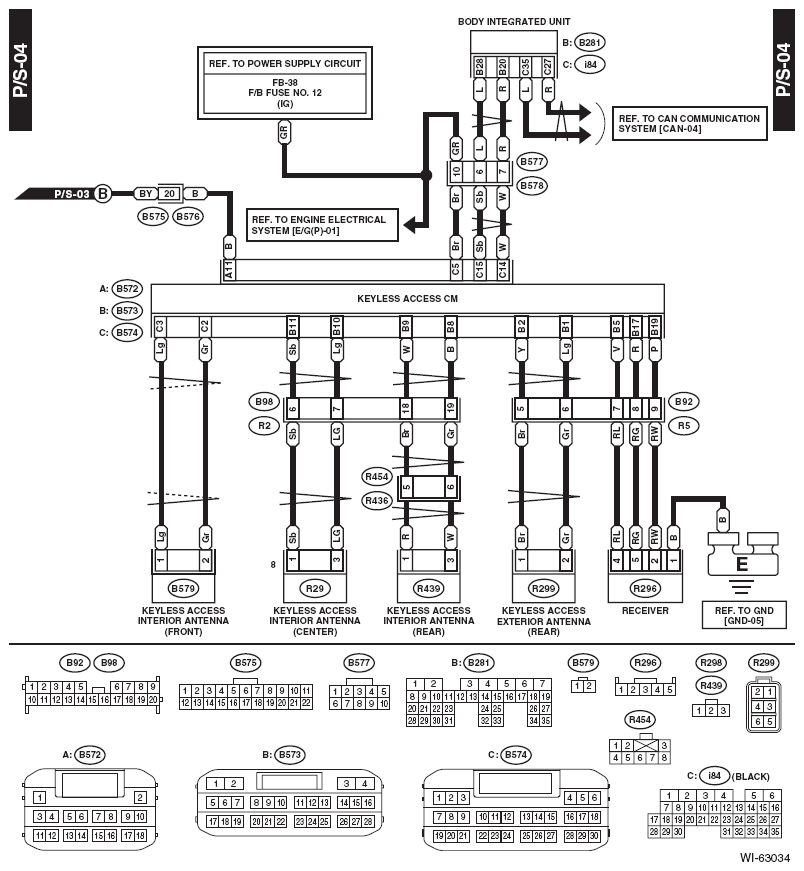

Fig 4: Push Button Start System Wiring Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
