Power Supply Circuit: Wiring Diagram

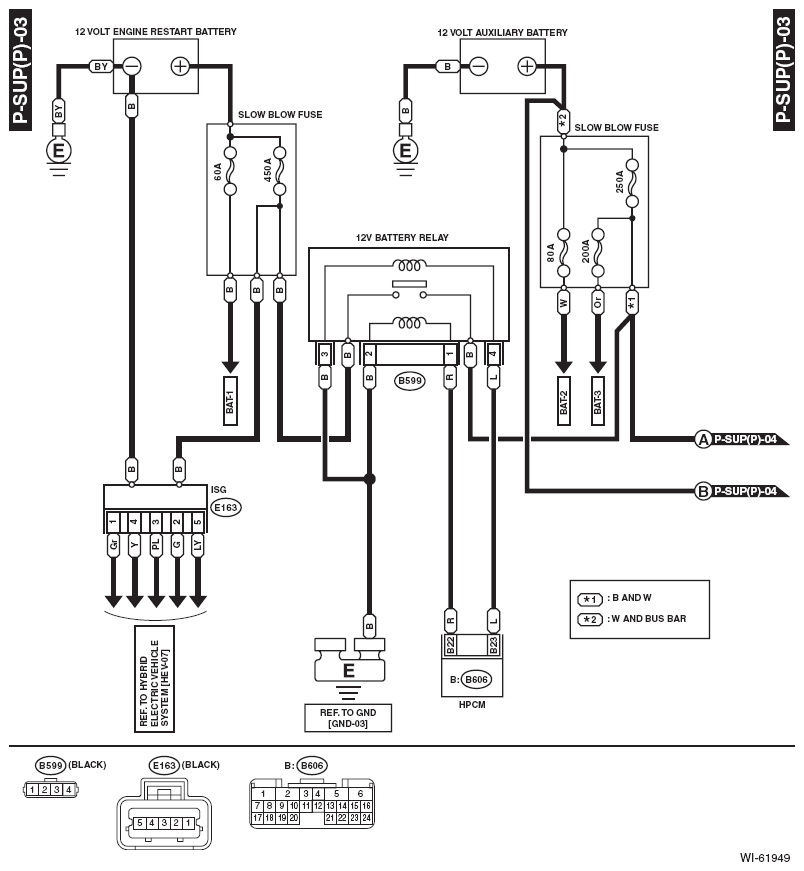

Fig 1: Power Supply Circuit Wiring Diagram (Passenger Room Side (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

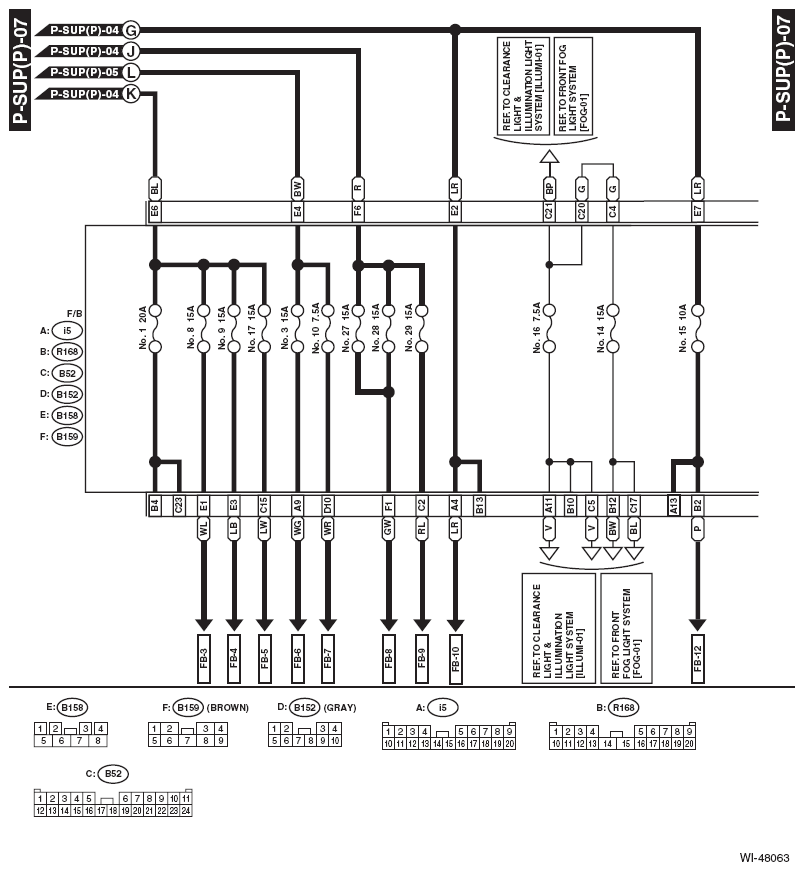

Fig 2: Power Supply Circuit Wiring Diagram (Passenger Room Side (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

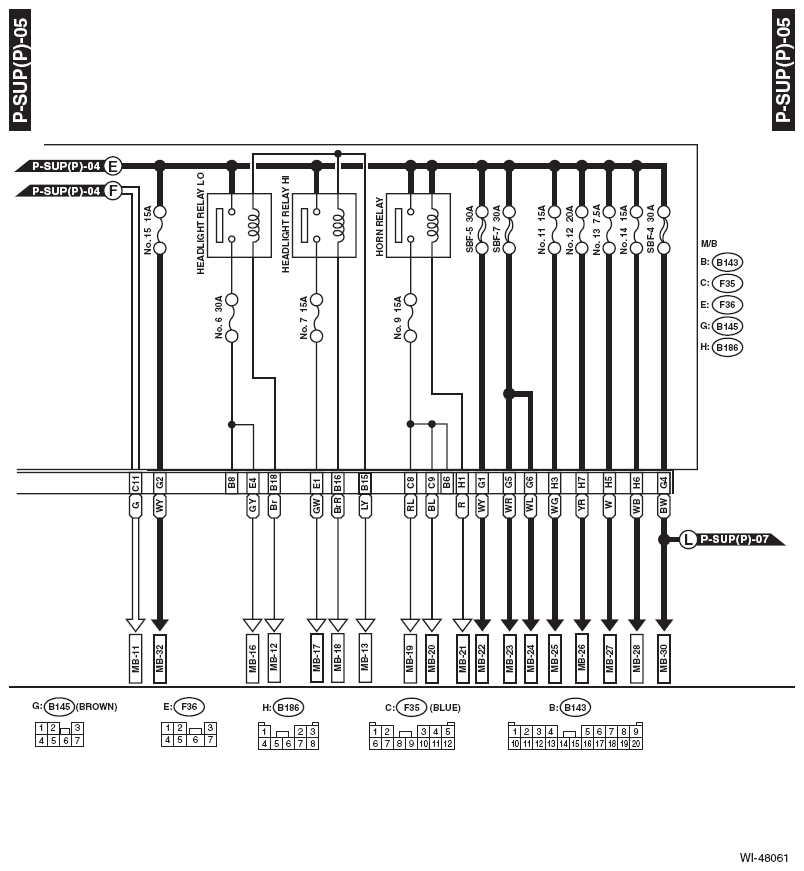

Fig 3: Power Supply Circuit Wiring Diagram (Passenger Room Side (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

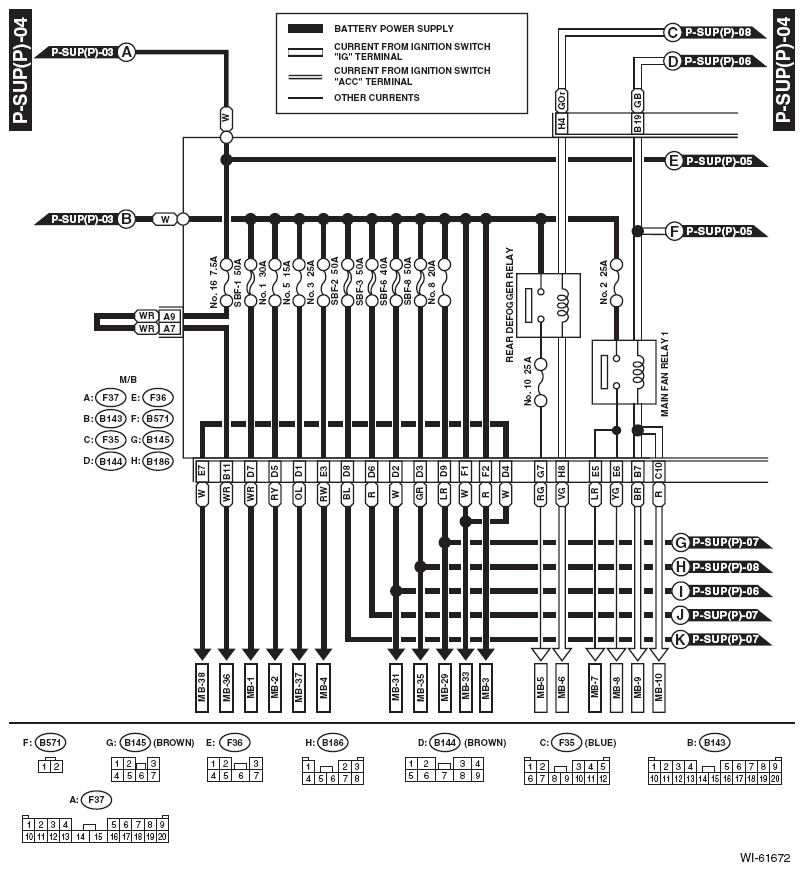

Fig 4: Power Supply Circuit Wiring Diagram (Passenger Room Side (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

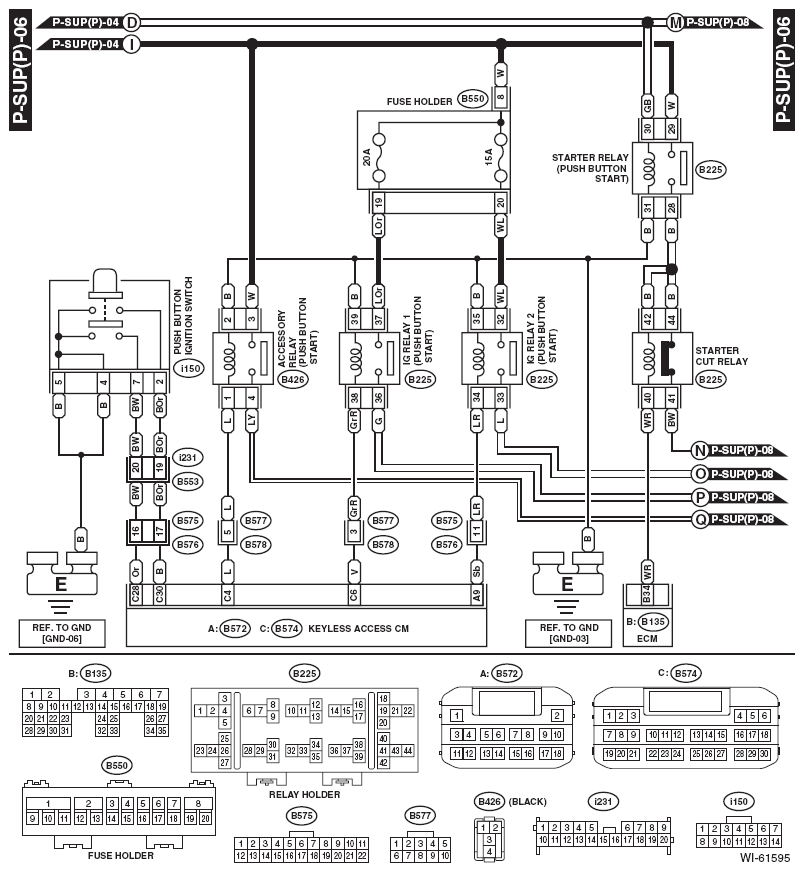

Fig 5: Power Supply Circuit Wiring Diagram (Passenger Room Side (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

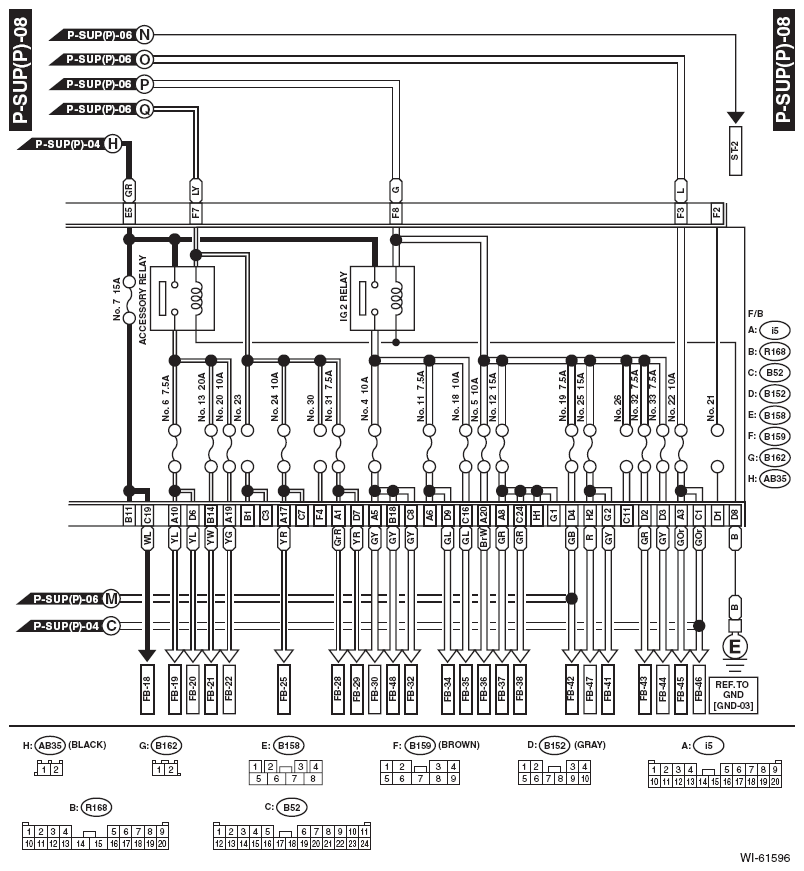

Fig 6: Power Supply Circuit Wiring Diagram (Passenger Room Side (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
