Pedestrian Alert System: Wiring Diagram

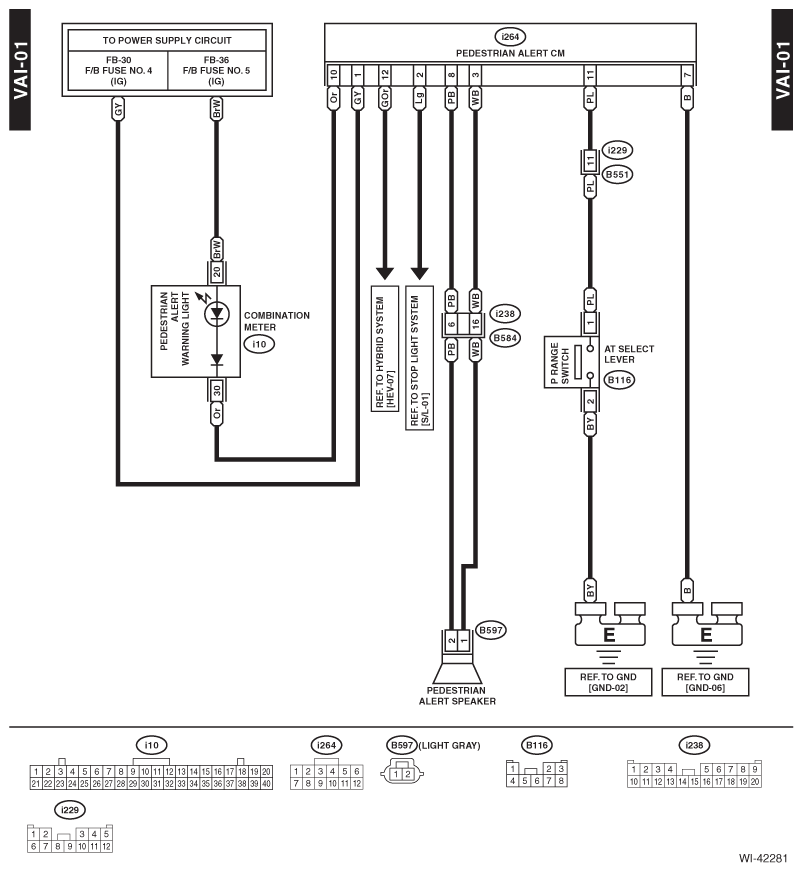

Fig 1: Pedestrian Alert System Wiring Diagram (1 Of 2)
G09490926Courtesy of SUBARU OF AMERICA, INC.

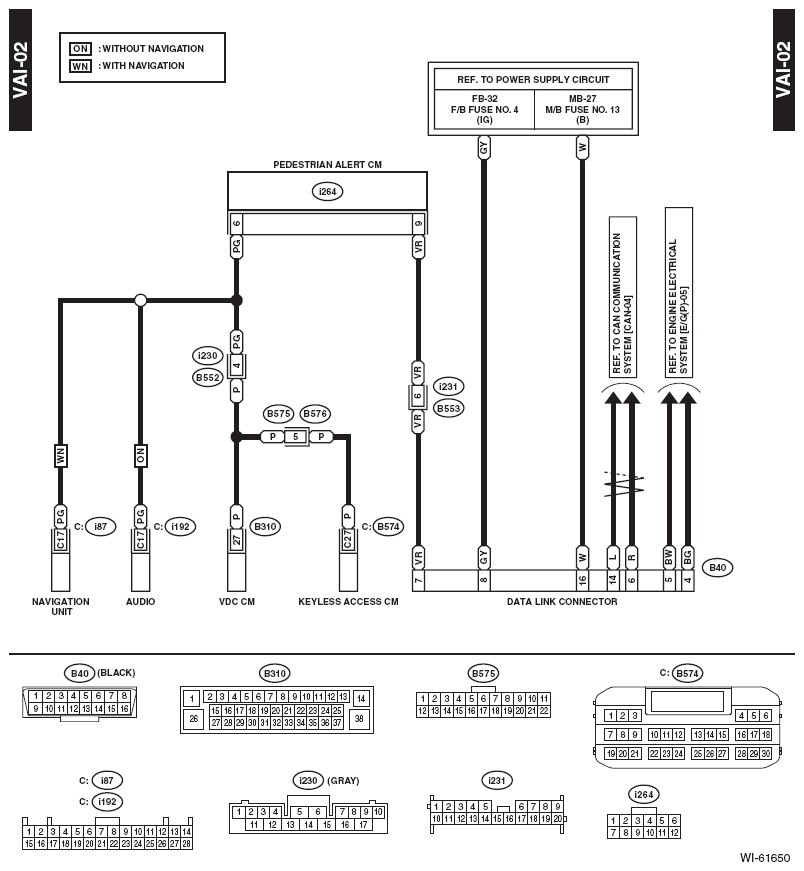

Fig 2: Pedestrian Alert System Wiring Diagram (2 Of 2)
G11909373Courtesy of SUBARU OF AMERICA, INC.
