OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Parking Brake/Brake Fluid Level Warning Light System
>>
Wiring Diagram
Parking Brake/Brake Fluid Level Warning Light System: Wiring Diagram

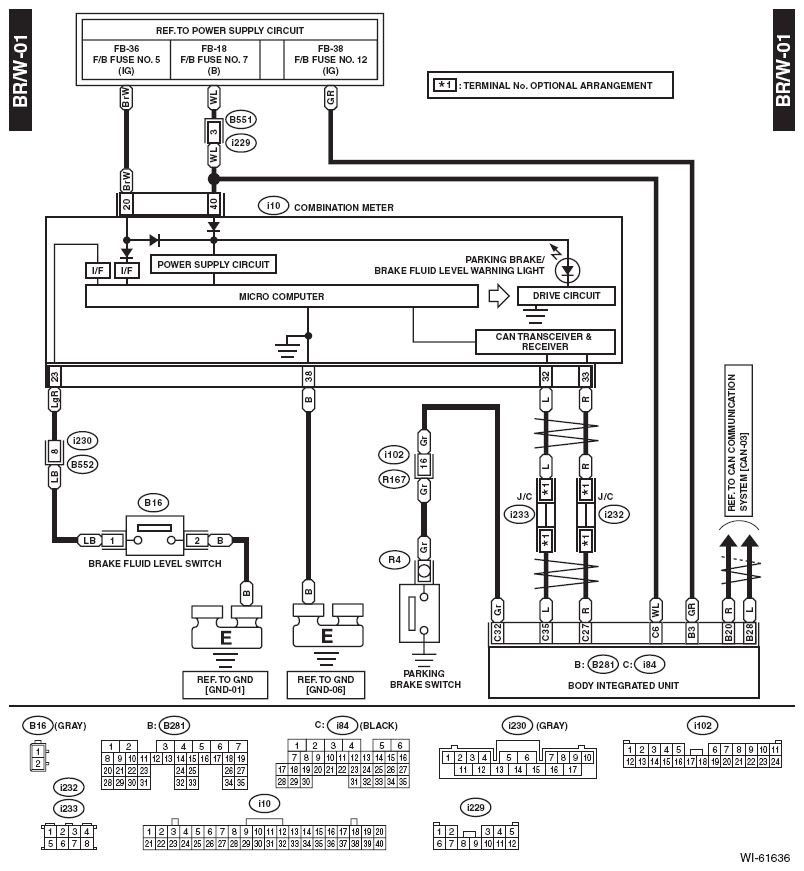

Fig 1: Parking Brake/Brake Fluid Level Warning Light System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
