Crosstrek Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Oil Pressure Warning Light System
>>
Wiring Diagram
Oil Pressure Warning Light System: Wiring Diagram

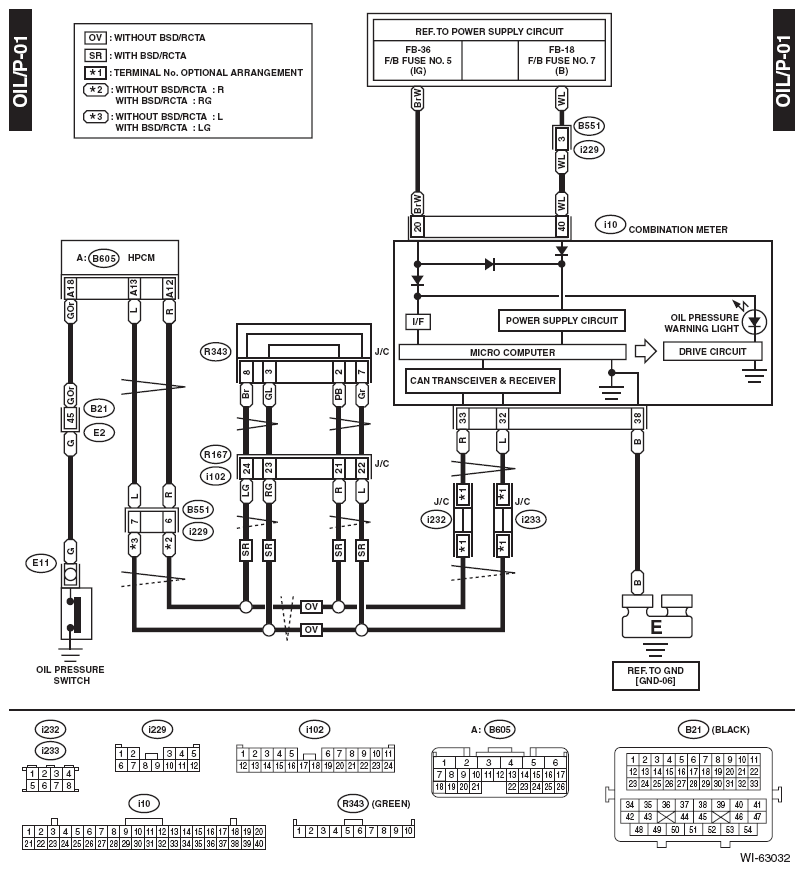

Fig 1: Oil Pressure Warning Light System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
