OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Navigation System
>>
Wiring Diagram
>>
Without Telematics
Without Telematics

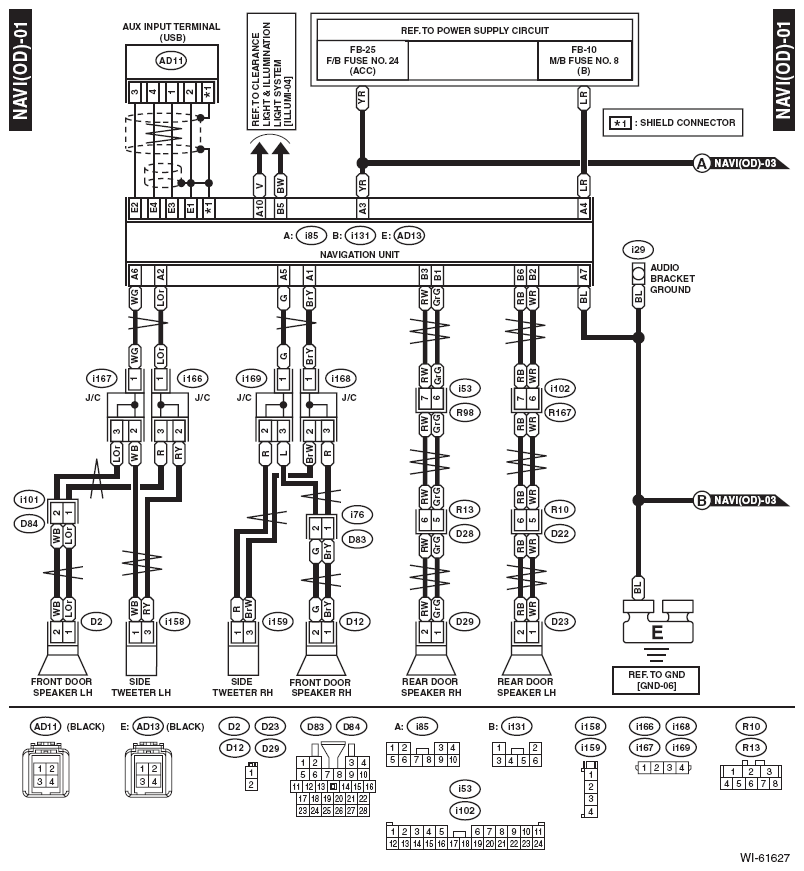

Fig 1: Navigation System Wiring Diagram (Without Telematics; 1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

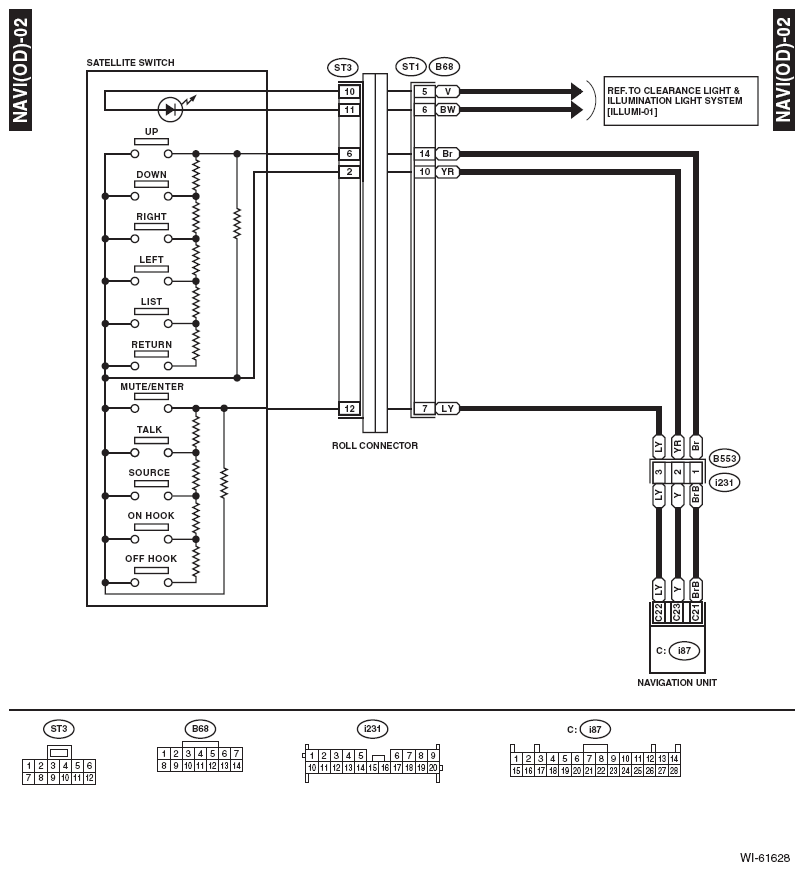

Fig 2: Navigation System Wiring Diagram (Without Telematics; 2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

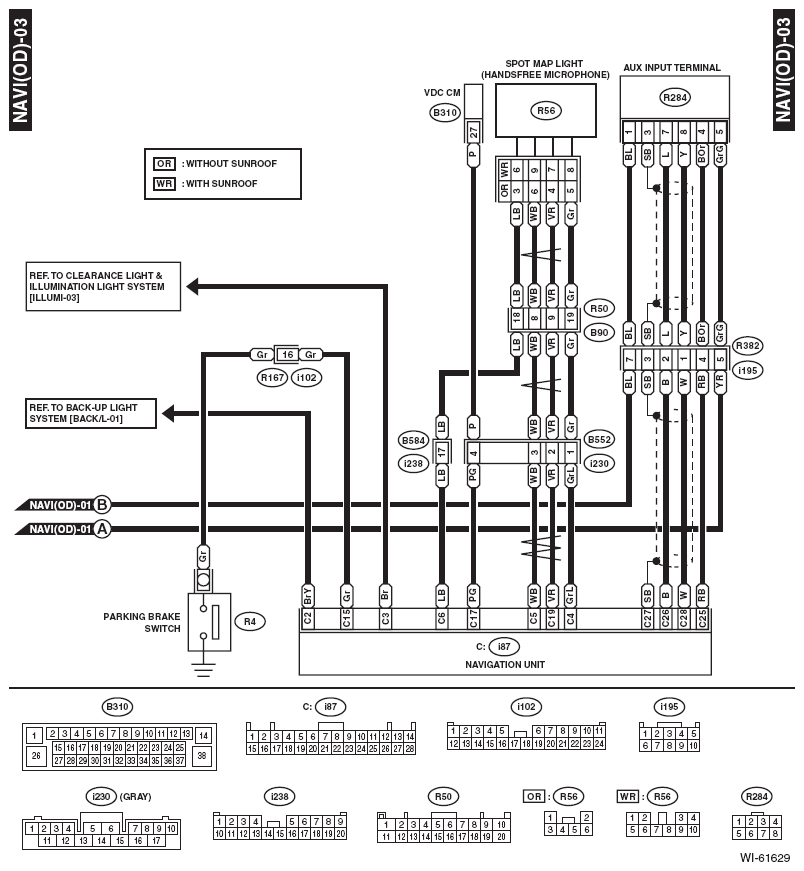

Fig 3: Navigation System Wiring Diagram (Without Telematics; 3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

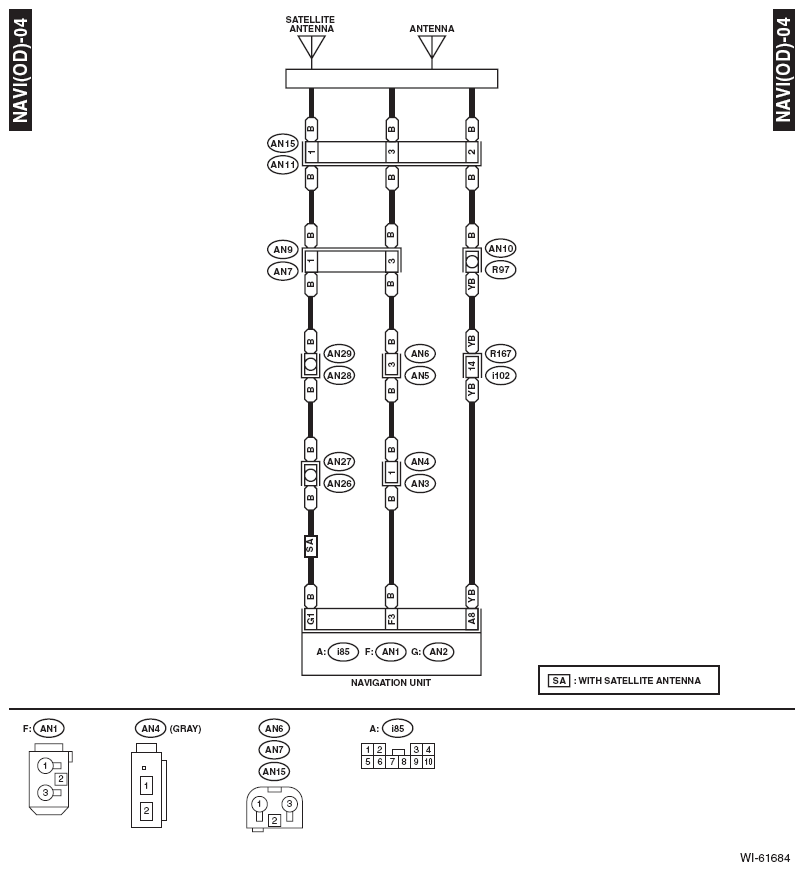

Fig 4: Navigation System Wiring Diagram (Without Telematics; 4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
