OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Navigation System
>>
Wiring Diagram
>>
With Telematics
With Telematics

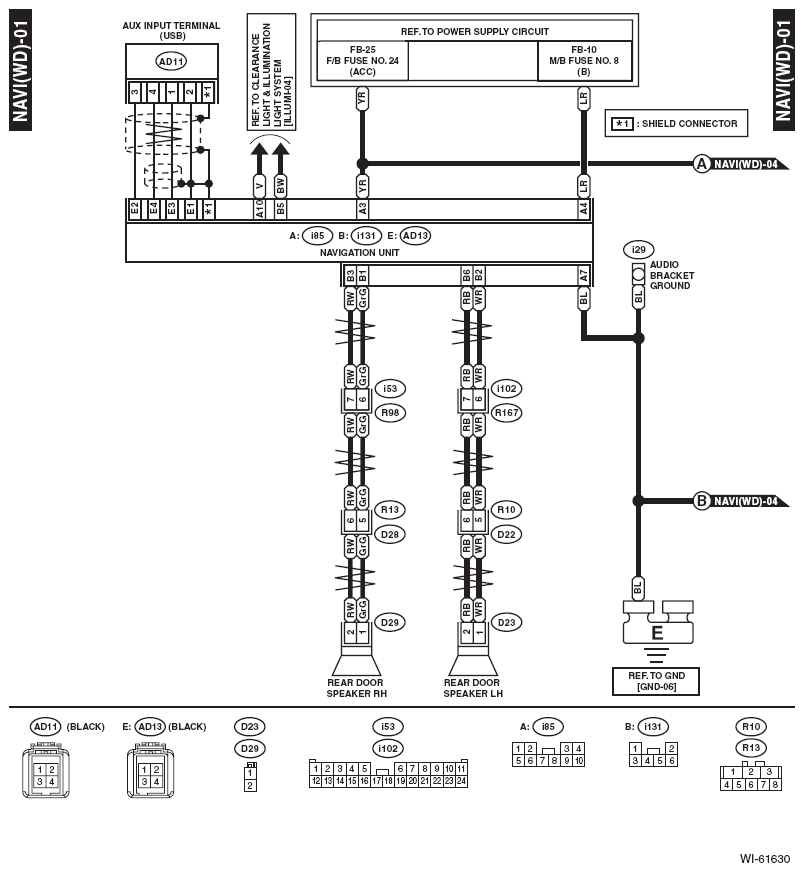

Fig 1: Navigation System Wiring Diagram (With Telematics; 1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

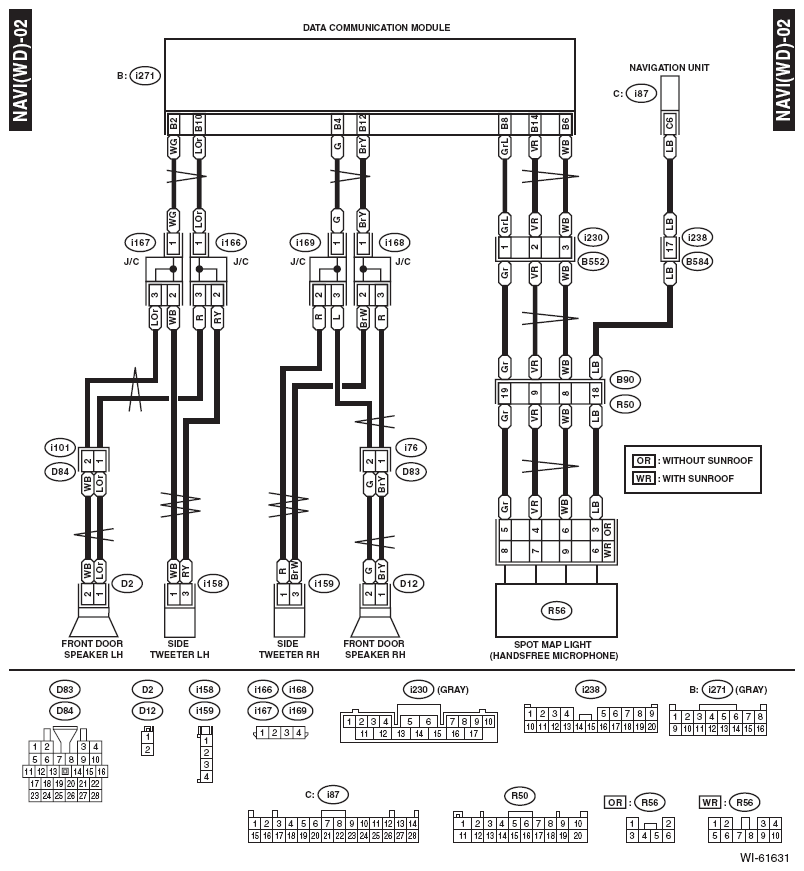

Fig 2: Navigation System Wiring Diagram (With Telematics; 2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

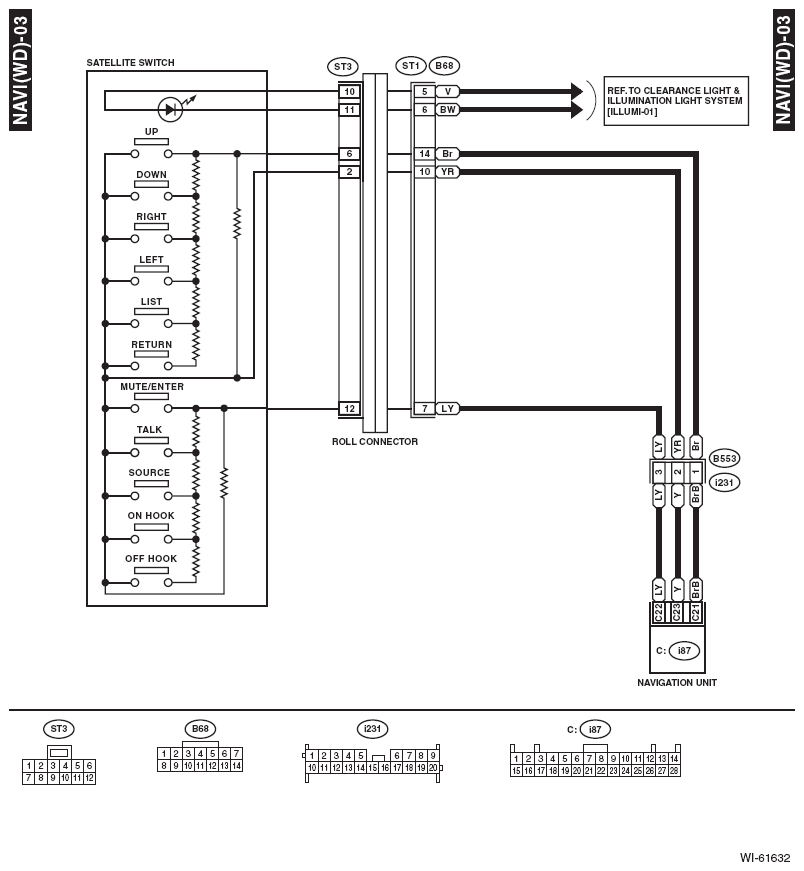

Fig 3: Navigation System Wiring Diagram (With Telematics; 3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

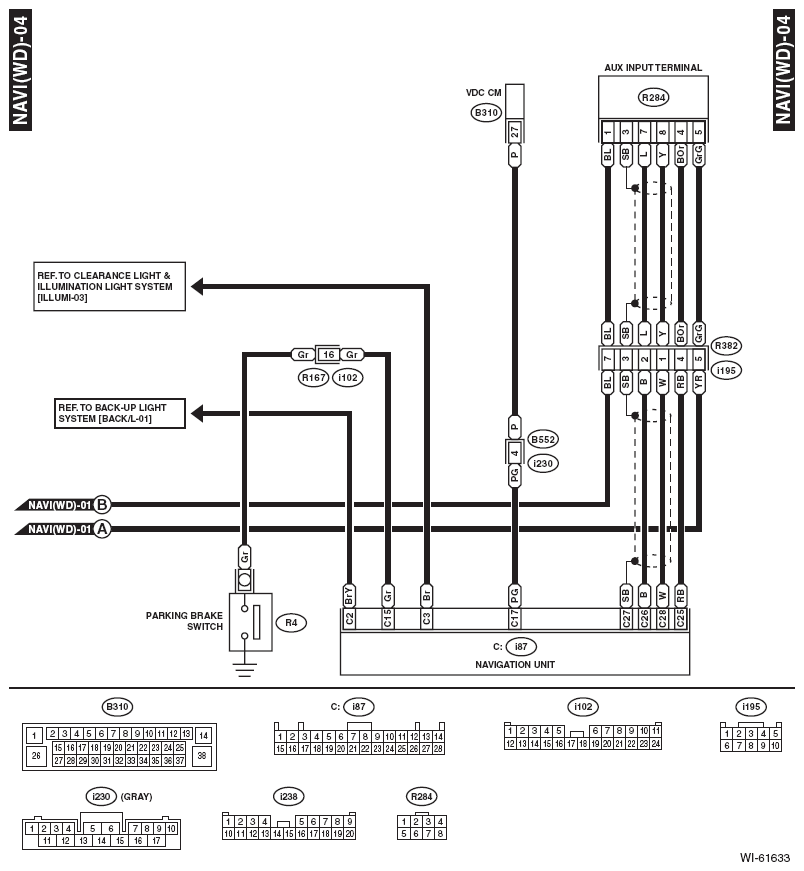

Fig 4: Navigation System Wiring Diagram (With Telematics; 4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

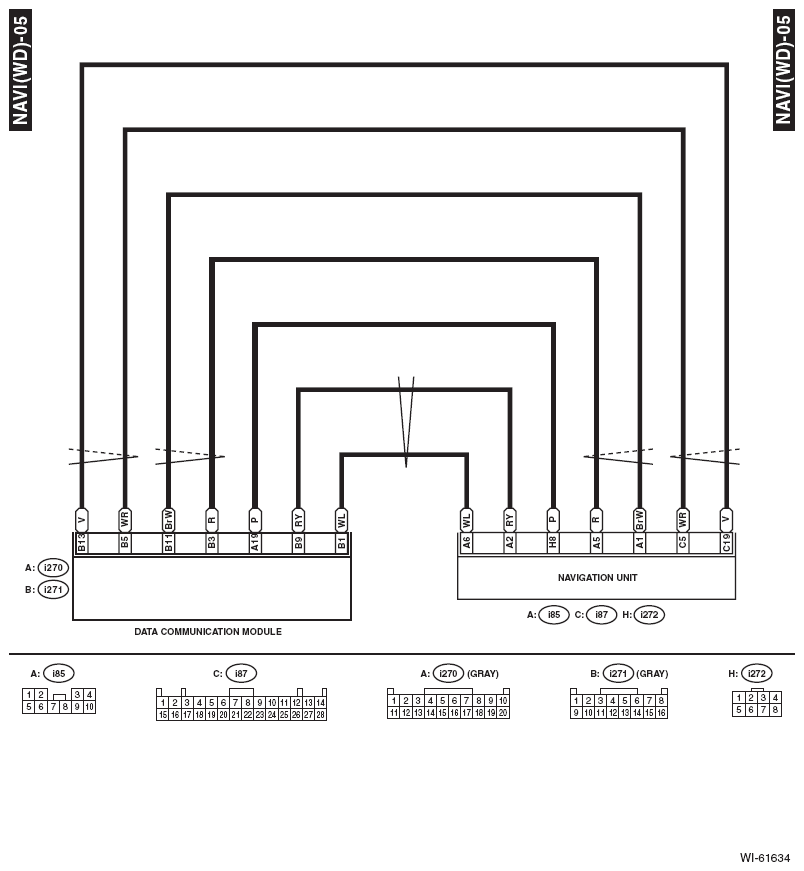

Fig 5: Navigation System Wiring Diagram (With Telematics; 5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

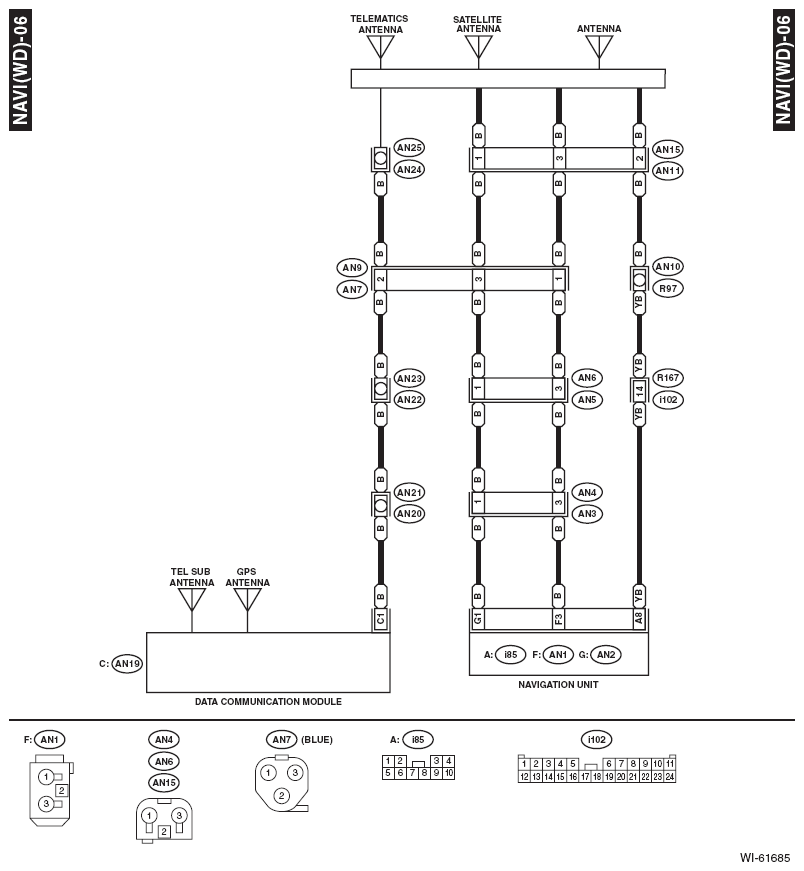

Fig 6: Navigation System Wiring Diagram (With Telematics; 6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
