Instrument Panel Wiring Harness RH: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
i7	4	Gray	B-2		MFD switch
i22	4	(1)	B-2		Hazard switch
i23	2	(1)	B-4		Glove box light
i24	2	(1)	C-2		Front accessory power supply socket
i29	1	(1)	C-2		Audio bracket ground
i53	24	(1)	C-5	R98	Rear wiring harness RH
i76	28	(1)	B-5	D83	Front door cord RH
i85	10	(1)	C-2		Audio
	10	(1)	C-2		Navigation unit
i87	28	(1)	C-2
i88	40	(1)	C-2		A/C control panel
i131	6	(1)	C-2		Audio
	6	(1)	C-2		Navigation unit
i146	5	(1)	B-2
i159	4	(1)	A-4		Side tweeter RH
i168	4	(1)	B-3		J/C
i169	4	(1)	B-4
i192	28	(1)	C-2		Audio
i195	10	(1)	C-5	R382	Rear wiring harness RH
i226	3	(1)	A-3		Light control sensor
i237	12	(1)	C-3	B583	Bulkhead wiring harness RH
i238	20	(1)	C-3	B584
i259	8	(1)	C-2		Pocket light
i270	20	Gray	C-2		Data communication module
i271	16	Gray	C-2
i272	8	(1)	C-2		Navigation unit
(1) White or natural color

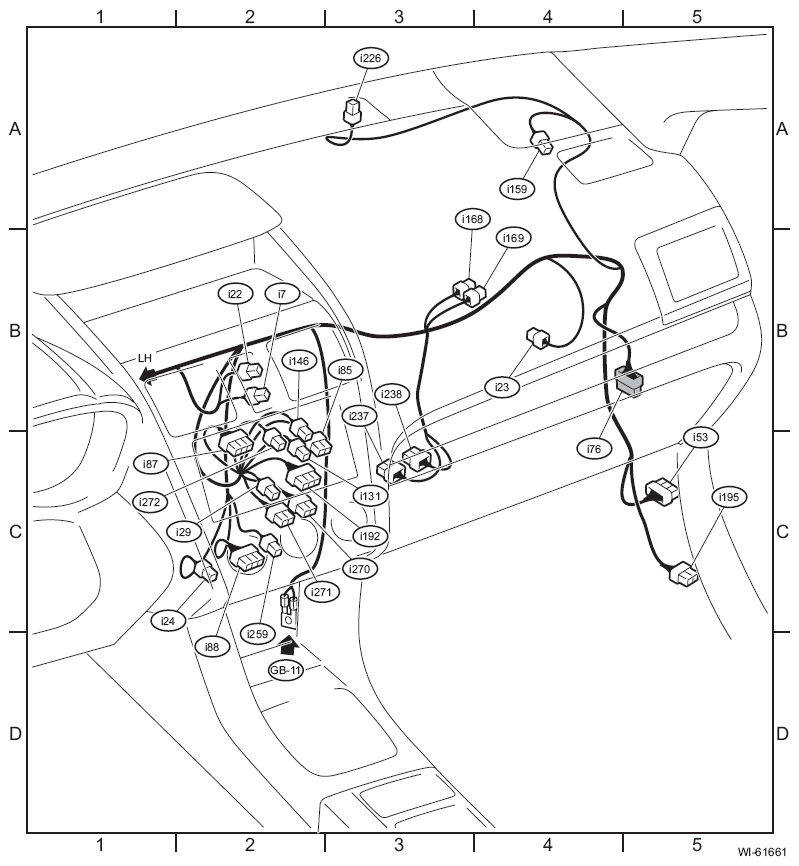

Fig 1: Instrument Panel Wiring Harness Location (RH)

Courtesy of SUBARU OF AMERICA, INC.
