Instrument Panel Wiring Harness LH: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
i2	10	(1)	D-1	R339	Rear wiring harness LH
i5	20	(1)	C-2		F/B
i10	40	(1)	B-3		Combination meter
i51	2	(1)	A-4		Sunload sensor
i55	2	(1)	B-4		Temperature and humidity sensor
i79	6	(1)	C-2		Illumination control switch
i84	35	Black	B-1		Body integrated unit
i94	6	Gray	C-2		BSD/RCTA OFF switch
i101	28	(1)	C-1	D84	Front door cord LH
i102	24	(1)	D-1	R167	Rear wiring harness LH
i122	12	Black	A-4		MFD
i150	14	(1)	B-4		Push button ignition switch (with push button start)
i158	4	(1)	B-1		Side tweeter LH
i166	4	(1)	B-2		J/C
i167	4	(1)	B-2
i171	31	(1)	C-1		Body integrated unit
i229	12	(1)	C-2	B551	Bulkhead wiring harness LH
i230	17	Gray	C-2	B552
i231	20	(1)	C-2	B553
i232	8	(1)	B-3		J/C
i233	8	(1)	B-4
i234	4	(1)	C-2		VDC OFF switch
i264	12	(1)	C-5		Pedestrian alert CM
(1) White or natural color

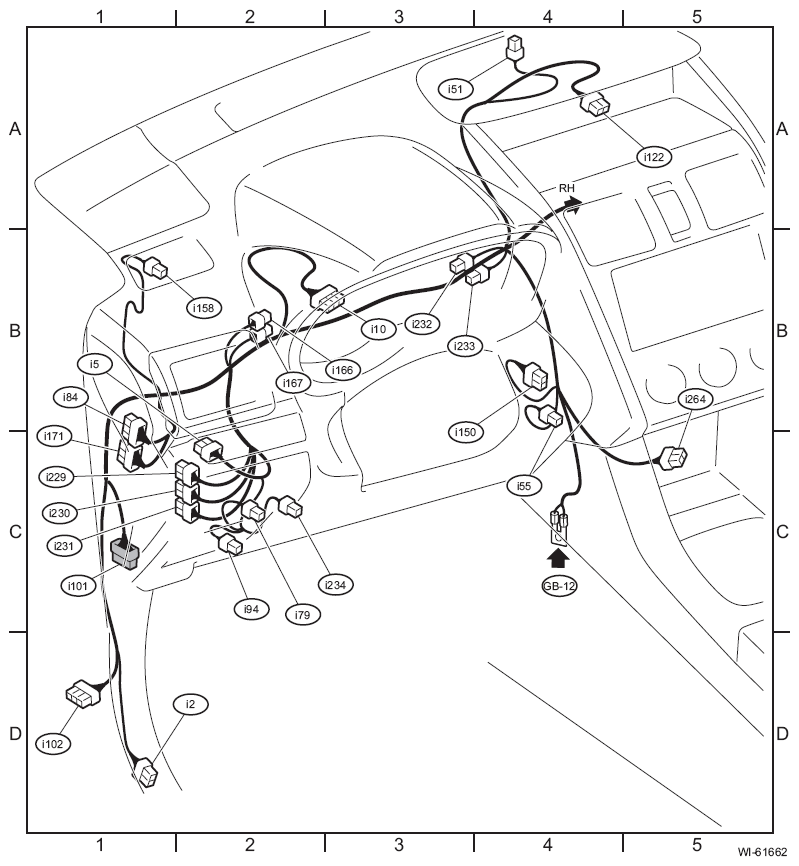

Fig 1: Instrument Panel Wiring Harness Location (LH)

Courtesy of SUBARU OF AMERICA, INC.
