Hybrid Electric Vehicle System: Wiring Diagram

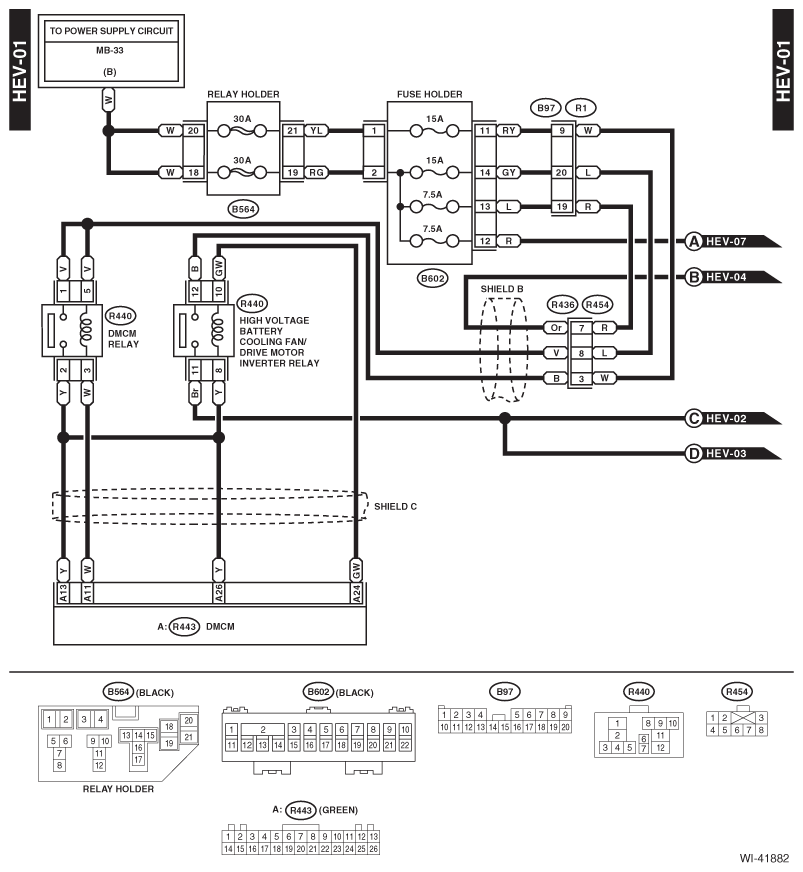

Fig 1: Hybrid Electric Vehicle System Wiring Diagram (1 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

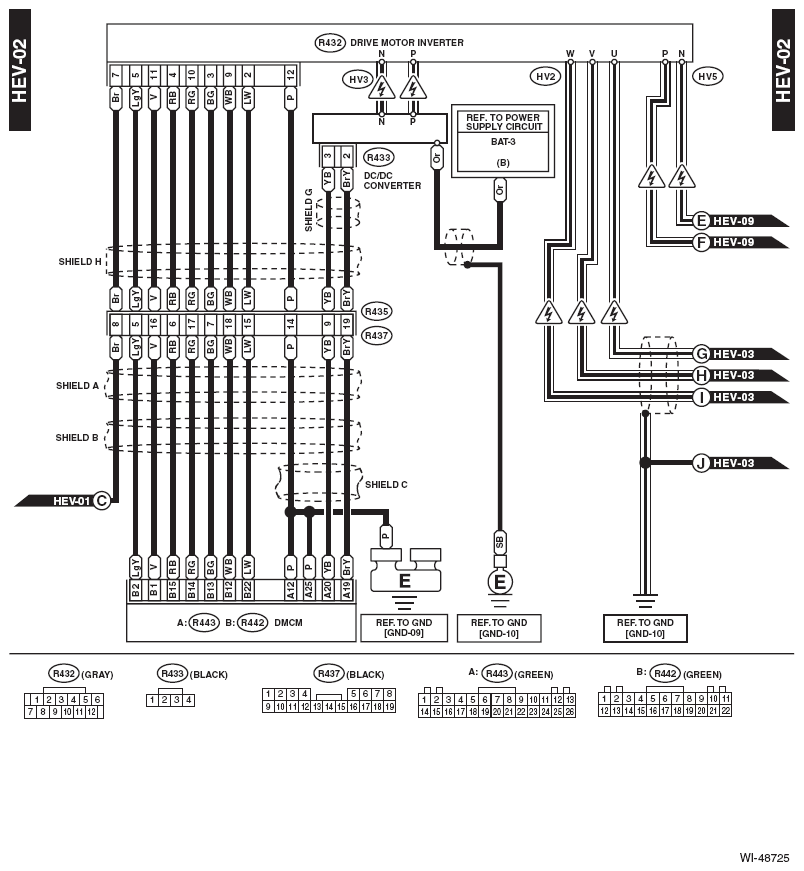

Fig 2: Hybrid Electric Vehicle System Wiring Diagram (2 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

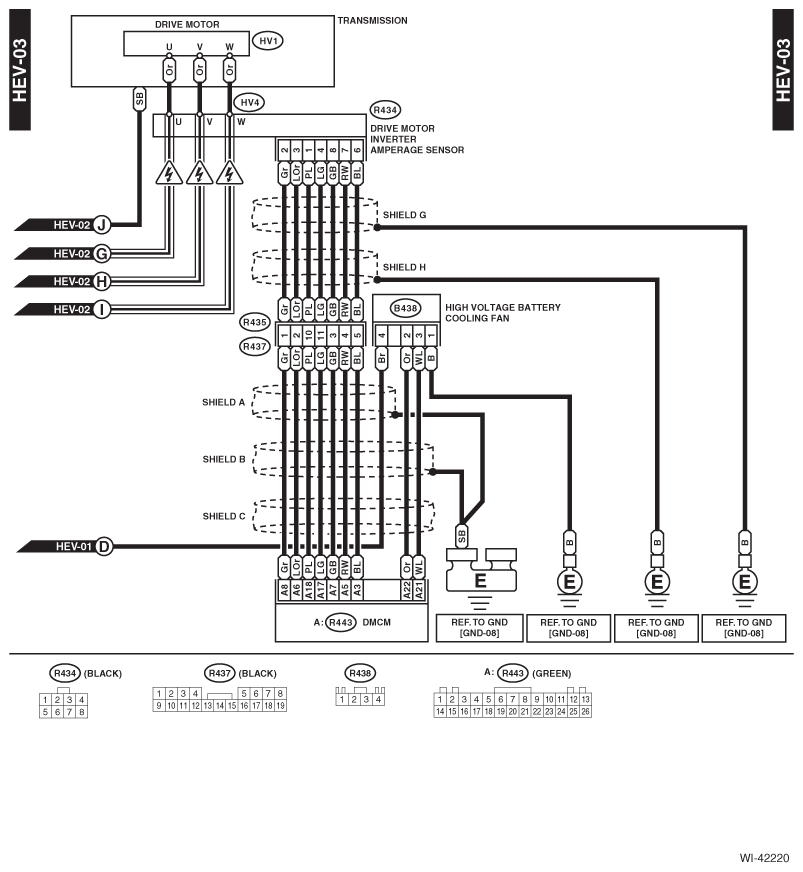

Fig 3: Hybrid Electric Vehicle System Wiring Diagram (3 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

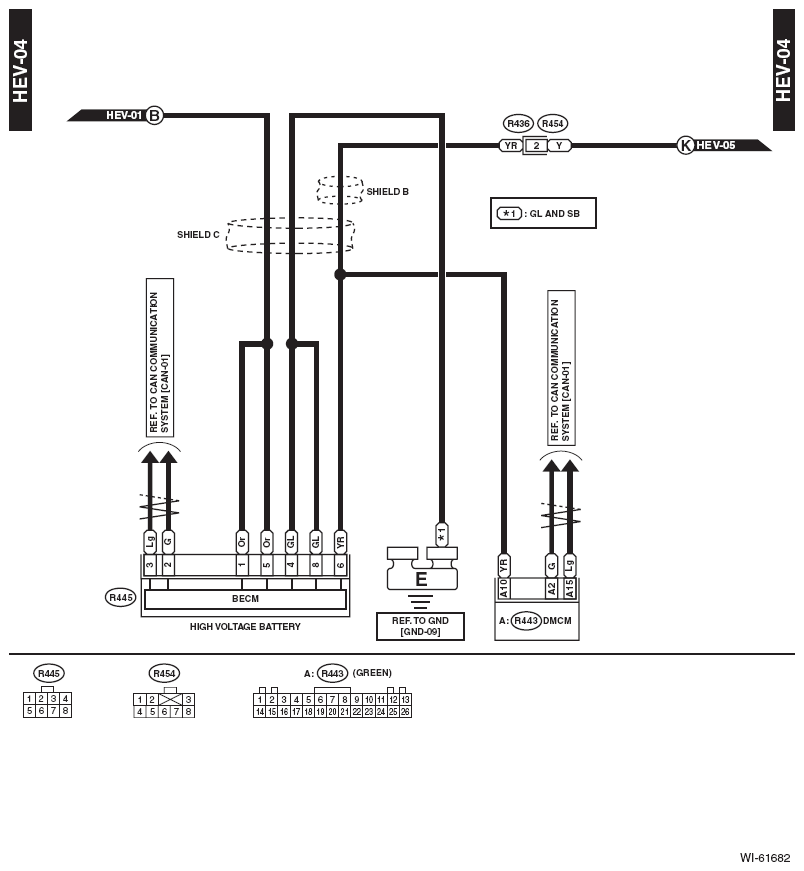

Fig 4: Hybrid Electric Vehicle System Wiring Diagram (4 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

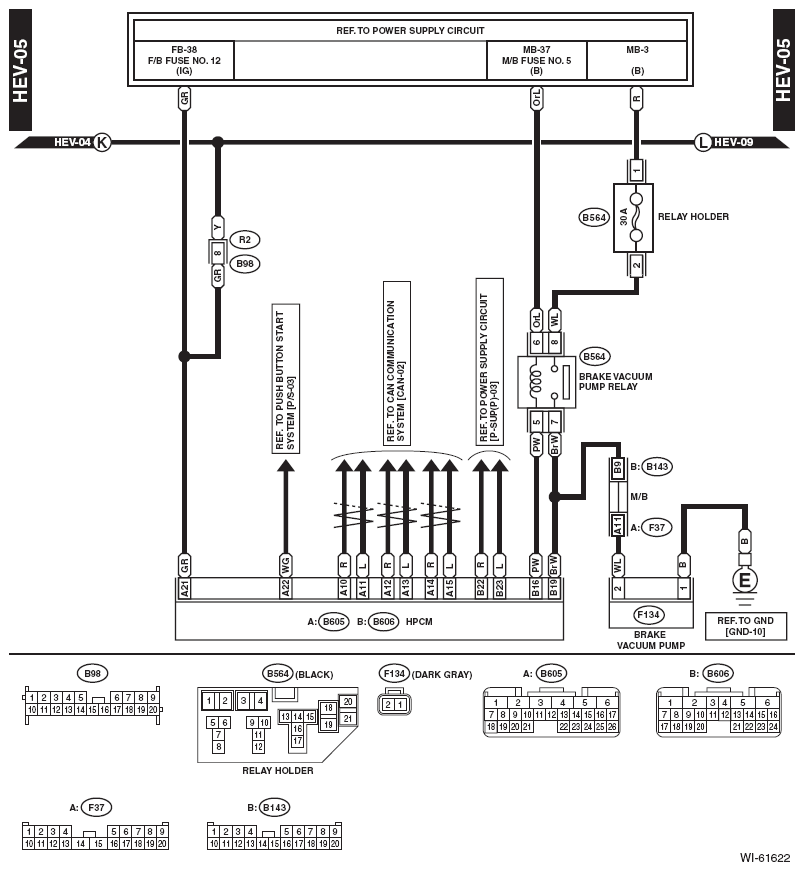

Fig 5: Hybrid Electric Vehicle System Wiring Diagram (5 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

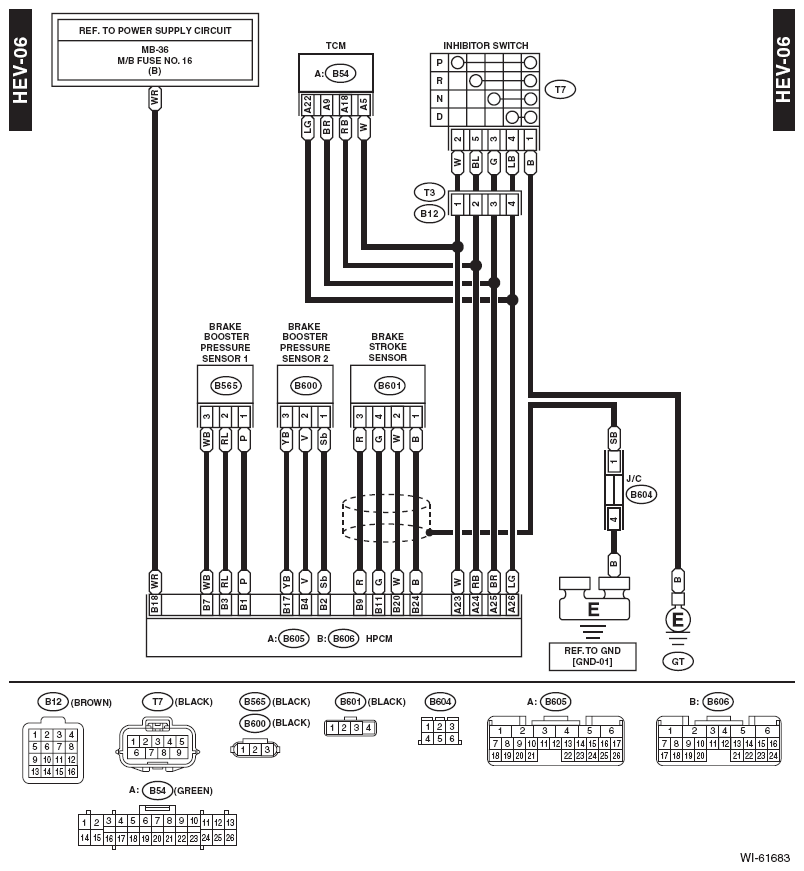

Fig 6: Hybrid Electric Vehicle System Wiring Diagram (6 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

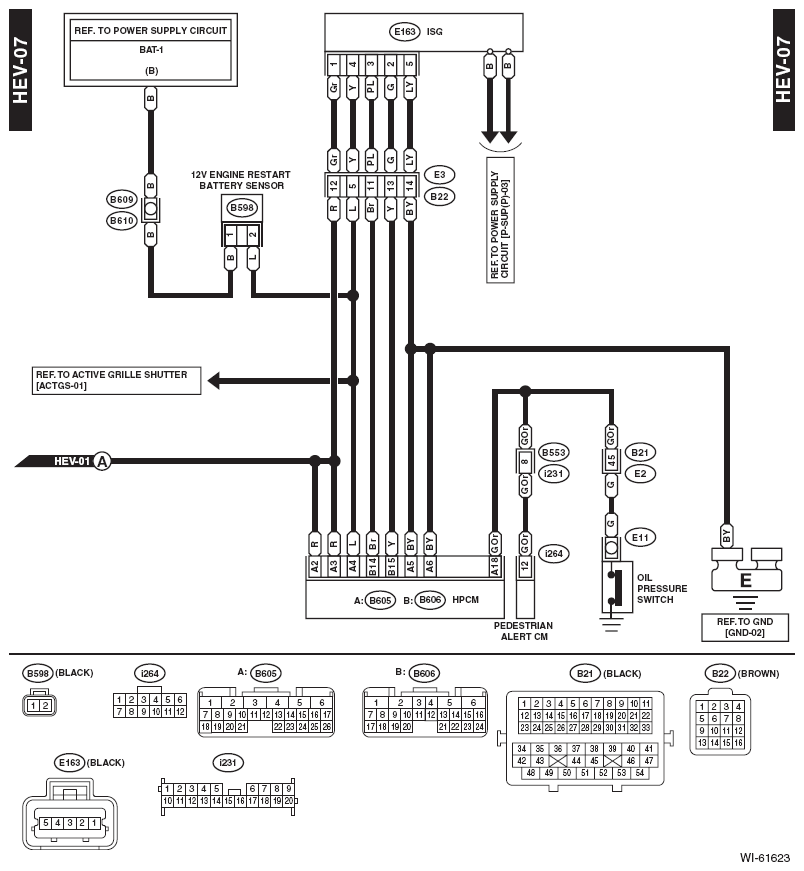

Fig 7: Hybrid Electric Vehicle System Wiring Diagram (7 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

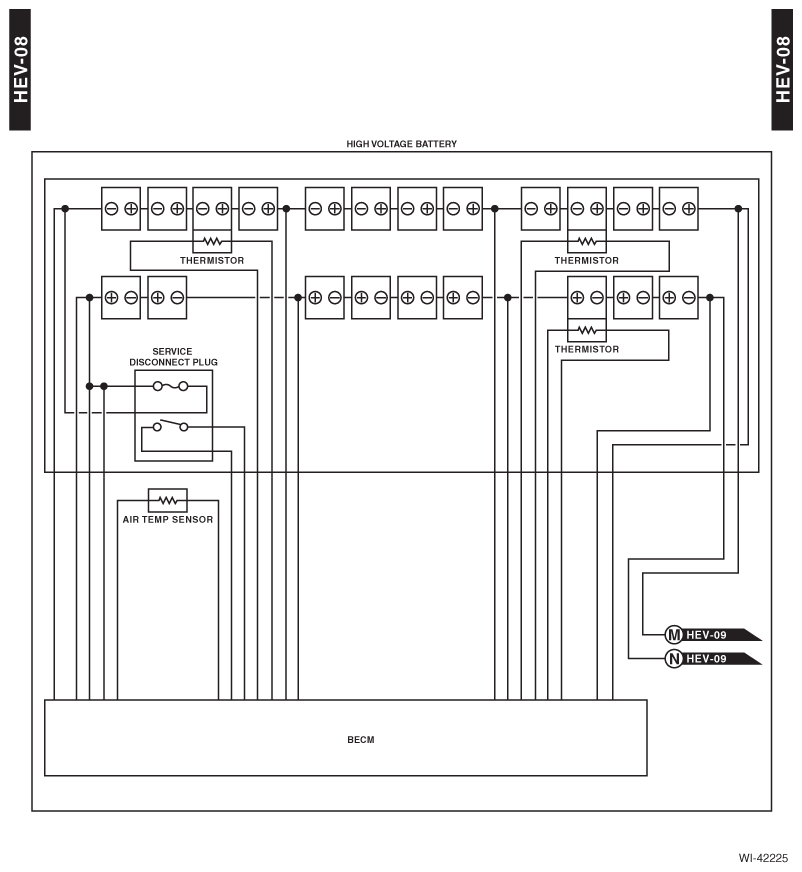

Fig 8: Hybrid Electric Vehicle System Wiring Diagram (8 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

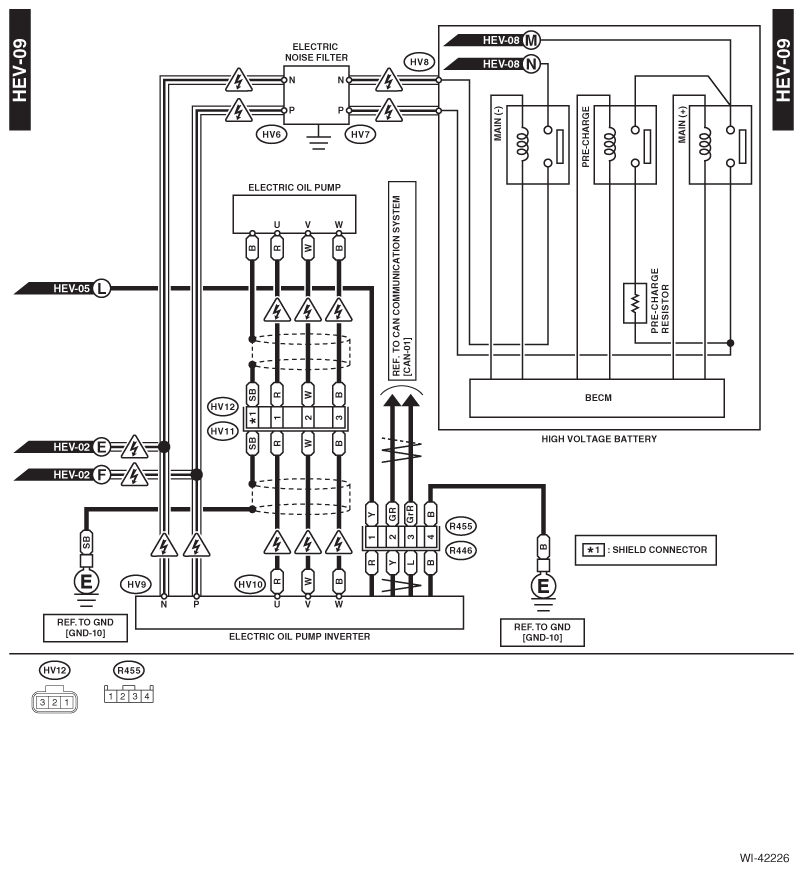

Fig 9: Hybrid Electric Vehicle System Wiring Diagram (9 Of 10)

Courtesy of SUBARU OF AMERICA, INC.

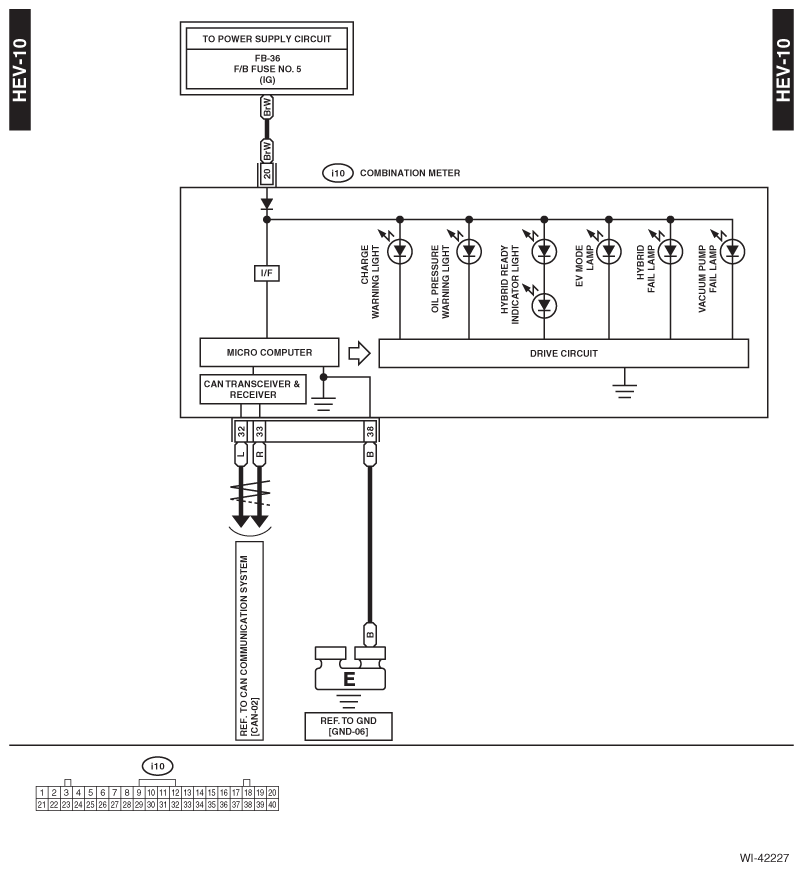

Fig 10: Hybrid Electric Vehicle System Wiring Diagram (10 Of 10)

Courtesy of SUBARU OF AMERICA, INC.
