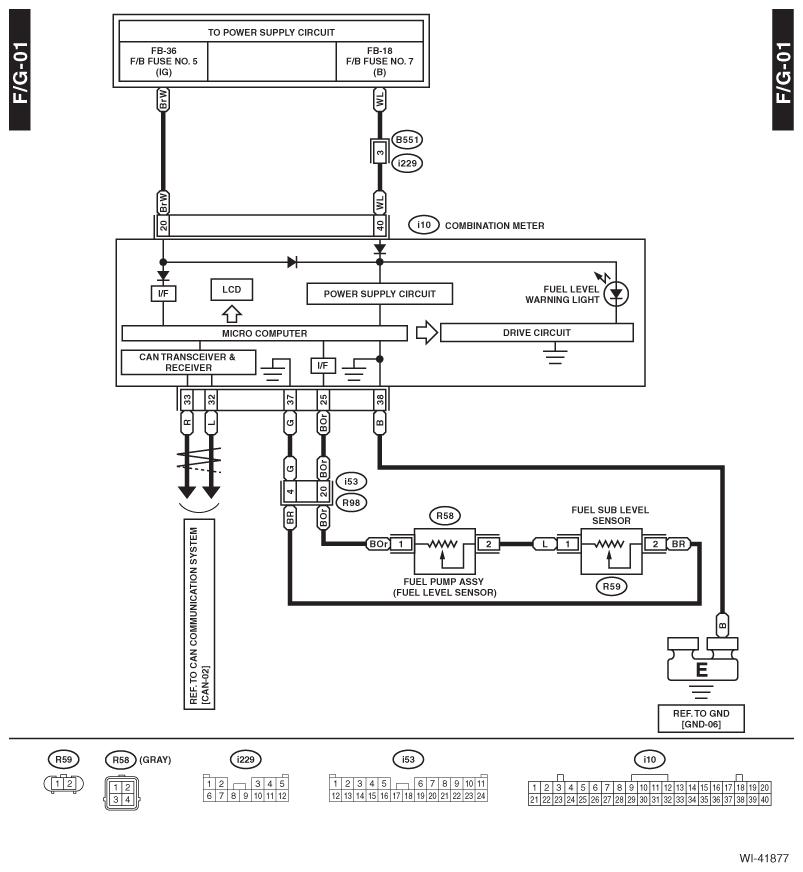

Home >> Subaru >> 2016 >> Crosstrek Limited >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid) >> Fuel Gauge System >> Wiring Diagram
