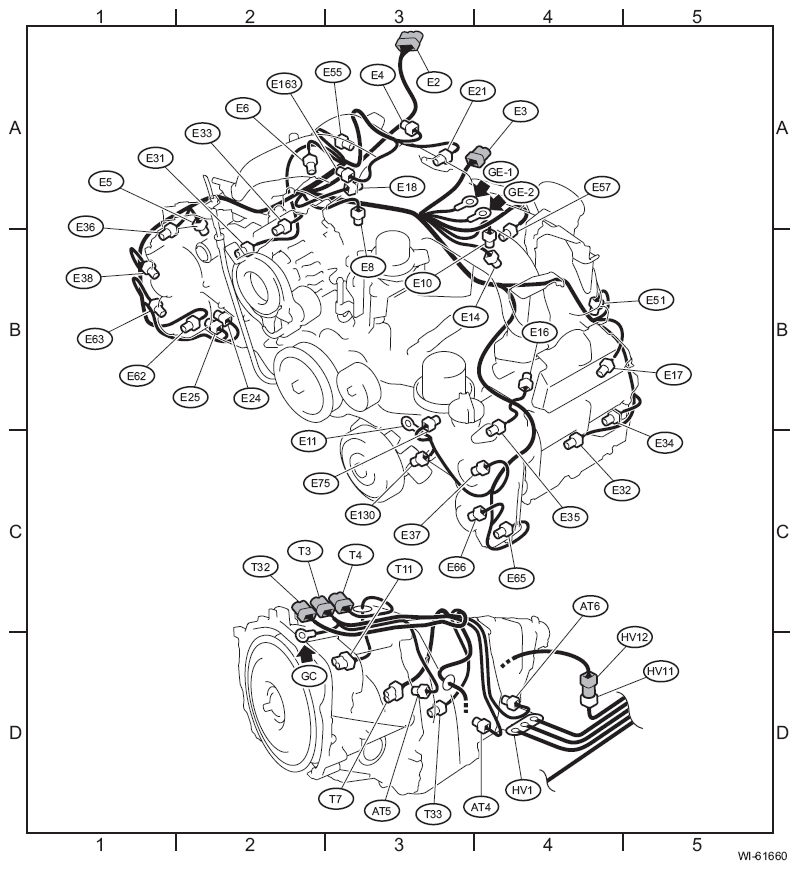

| E2 |
54 |
Black |
A-3 |
B21 |
Bulkhead wiring harness |
| E3 |
16 |
Brown |
A-4 |
B22 |
| E4 |
2 |
Blue |
A-3 |
|
Purge control solenoid valve |
| E5 |
2 |
Dark gray |
B-2 |
|
Fuel injector No. 1 |
| E6 |
2 |
Dark gray |
A-2 |
|
Fuel injector No. 3 |
| E8 |
2 |
Black |
A-3 |
|
Engine coolant temperature sensor |
| E10 |
3 |
Black |
B-4 |
|
Crankshaft position sensor |
| E11 |
1 |
- |
B-3 |
|
Oil pressure switch |
| E14 |
2 |
Black |
B-4 |
|
Knock sensor |
| E16 |
2 |
Dark gray |
B-4 |
|
Fuel injector No. 2 |
| E17 |
2 |
Dark gray |
B-4 |
|
Fuel injector No. 4 |
| E18 |
6 |
Dark gray |
A-3 |
|
EGR control valve |
| E21 |
3 |
Black |
A-3 |
|
Manifold absolute pressure sensor |
| E24 |
4 |
Light gray |
B-2 |
|
Front oxygen (A/F) sensor |
| E25 |
4 |
Black |
B-2 |
|
Rear oxygen sensor |
| E31 |
3 |
Black |
B-2 |
|
Ignition coil No. 1 |
| E32 |
3 |
Black |
C-4 |
|
Ignition coil No. 2 |
| E33 |
3 |
Black |
A-2 |
|
Ignition coil No. 3 |
| E34 |
3 |
Black |
B-4 |
|
Ignition coil No. 4 |
| E35 |
3 |
Light gray |
C-4 |
|
Intake camshaft position sensor LH |
| E36 |
3 |
Light gray |
B-1 |
|
Intake camshaft position sensor RH |
| E37 |
2 |
Black |
C-4 |
|
Intake oil control solenoid LH |
| E38 |
2 |
Black |
B-1 |
|
Intake oil control solenoid RH |
| E51 |
5 |
Light gray |
B-4 |
|
Tumble generator valve actuator LH |
| E55 |
5 |
Light gray |
A-3 |
|
Tumble generator valve actuator RH |
| E57 |
6 |
Black |
B-4 |
|
Electronic throttle control |
| E62 |
3 |
Light gray |
B-2 |
|
Exhaust camshaft position sensor RH |
| E63 |
2 |
Black |
B-1 |
|
Exhaust oil control solenoid RH |
| E65 |
3 |
Light gray |
C-4 |
|
Exhaust camshaft position sensor LH |
| E66 |
2 |
Black |
C-4 |
|
Exhaust oil control solenoid LH |
| E75 |
2 |
Black |
B-3 |
|
Engine oil temperature sensor |
| E130 |
1 |
|
C-3 |
|
Oil level switch |
| E163 |
5 |
Black |
A-3 |
|
ISG |
