Engine Electrical System: Wiring Diagram

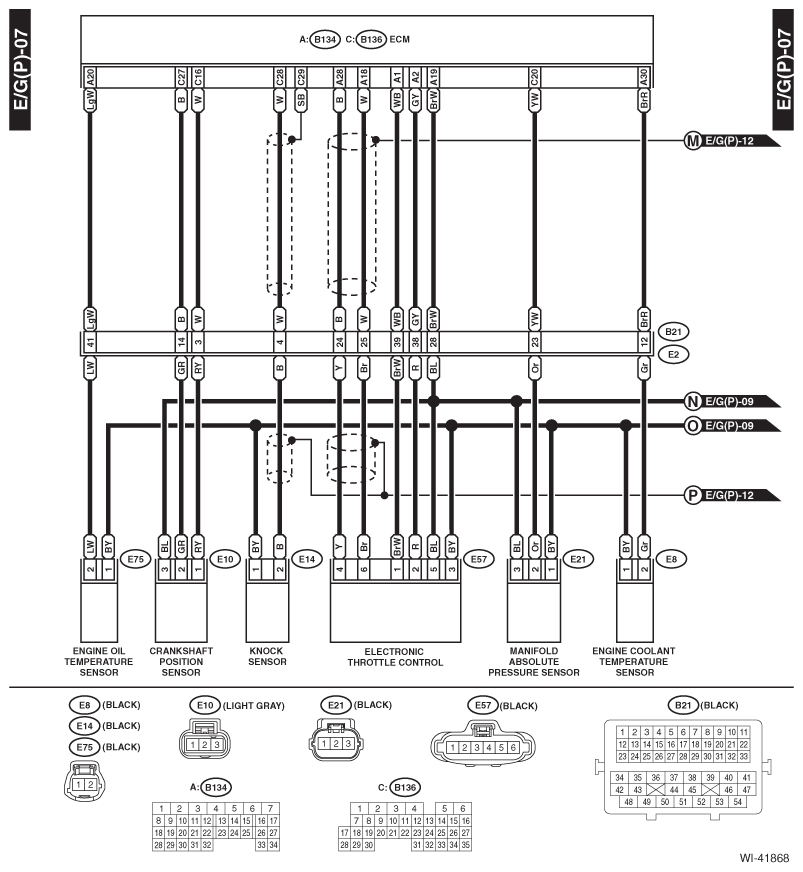

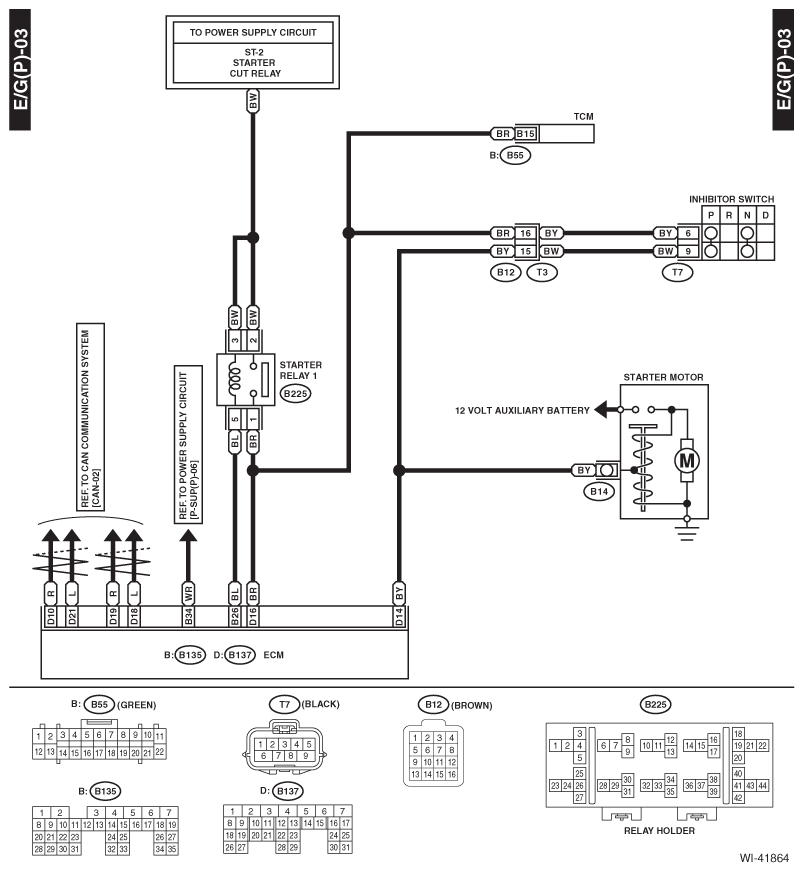

Fig 1: Engine Electrical System Wiring Diagram (1 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

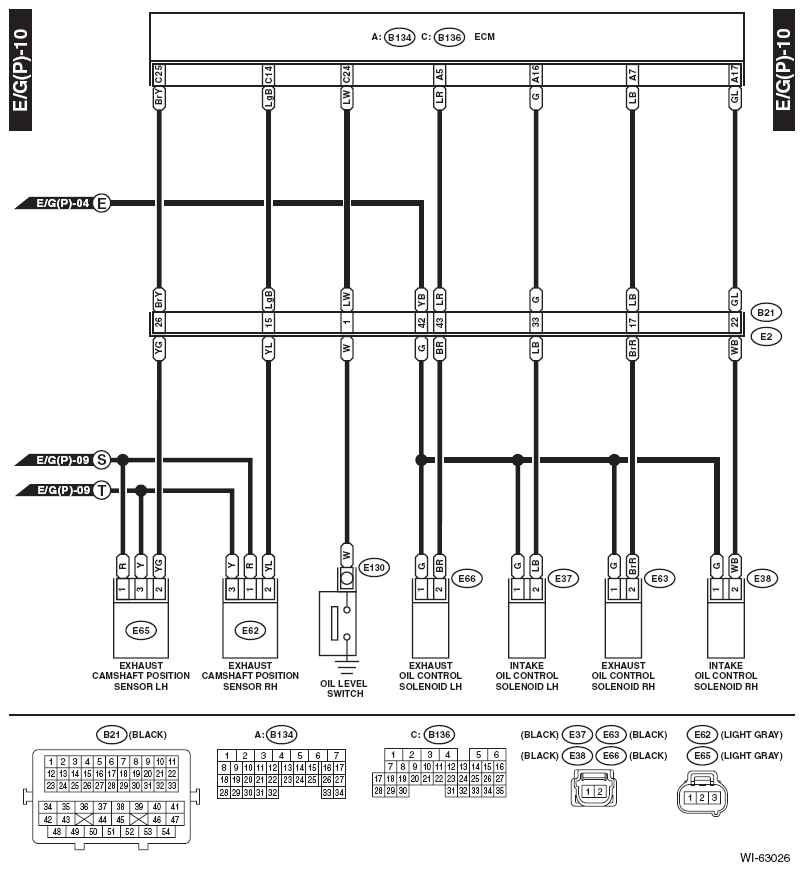

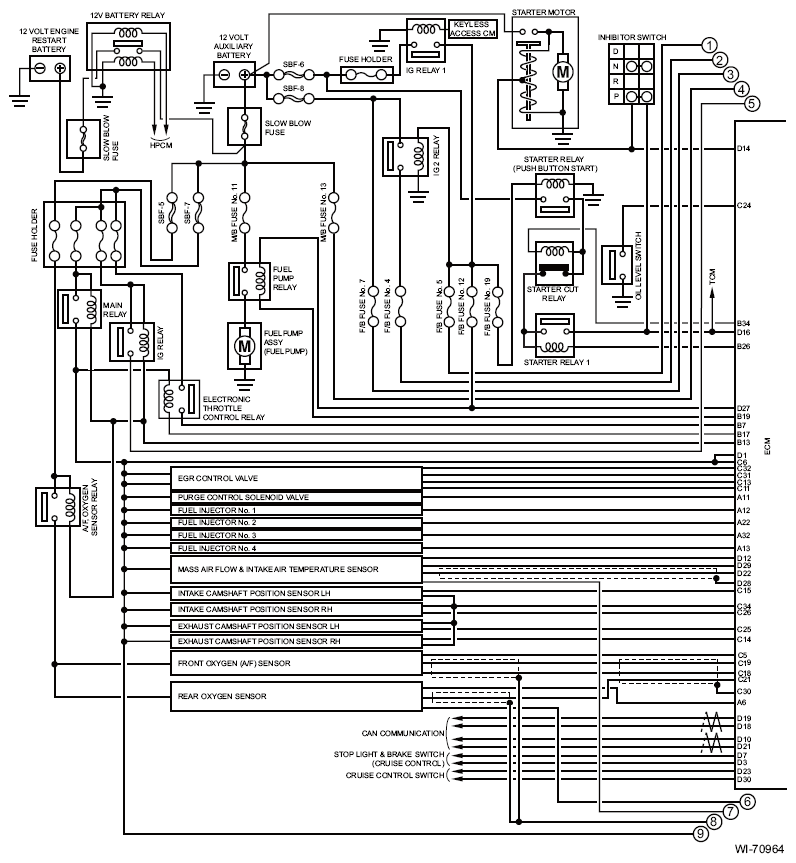

Fig 2: Engine Electrical System Wiring Diagram (2 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

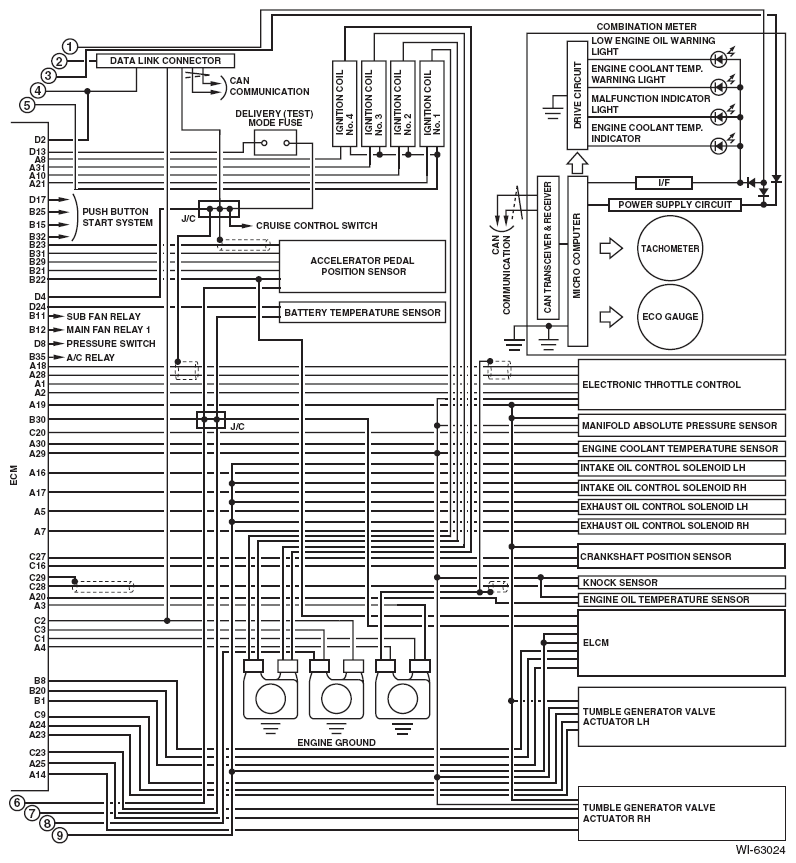

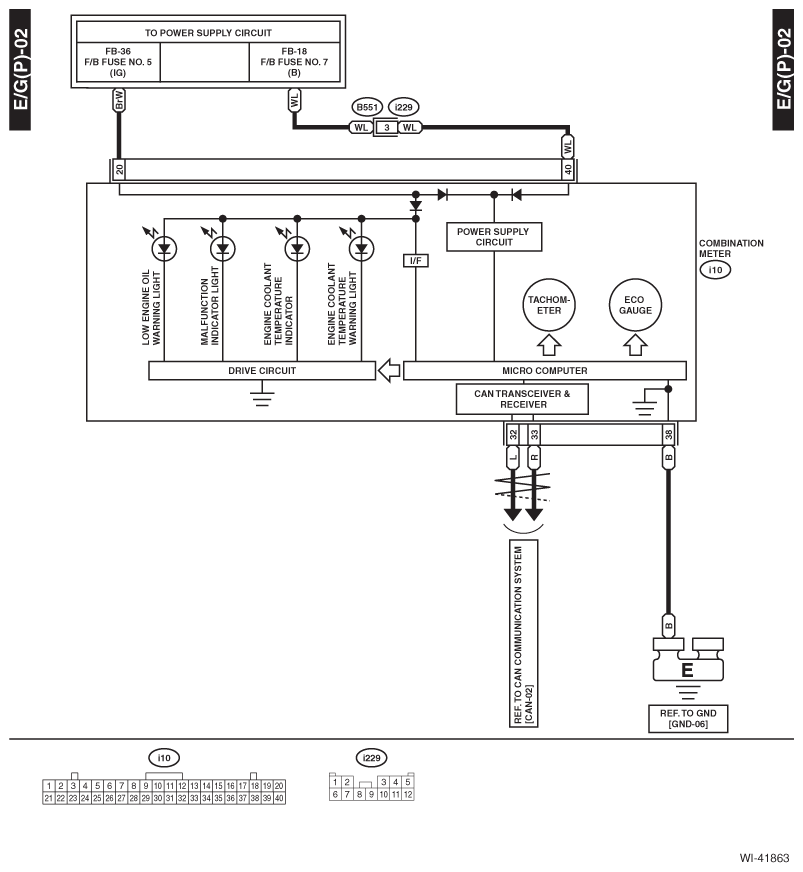

Fig 3: Engine Electrical System Wiring Diagram (3 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

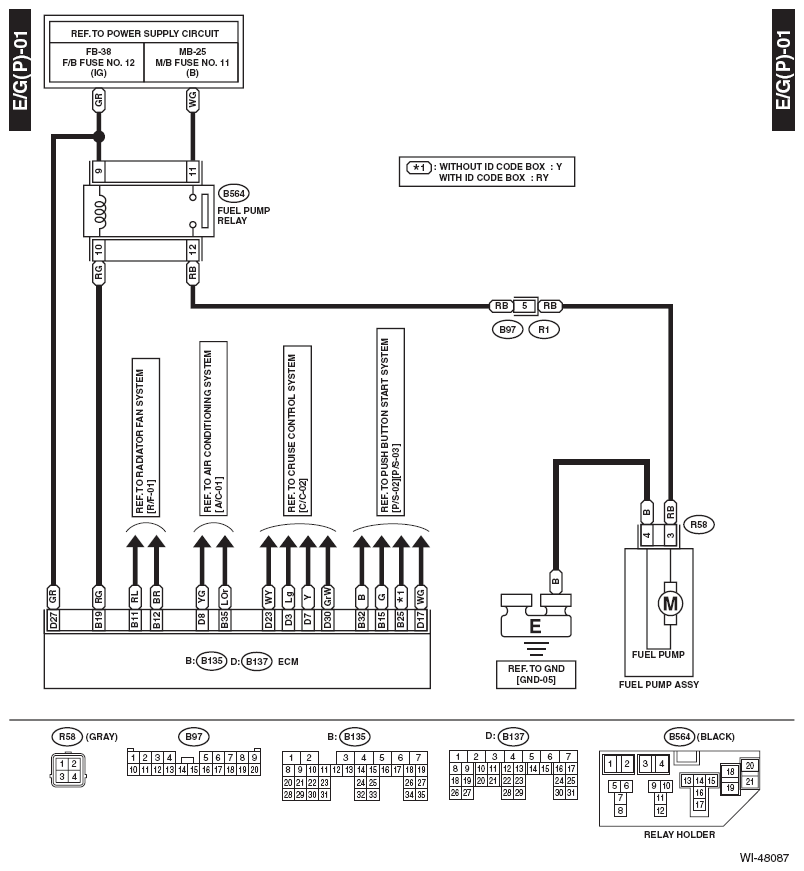

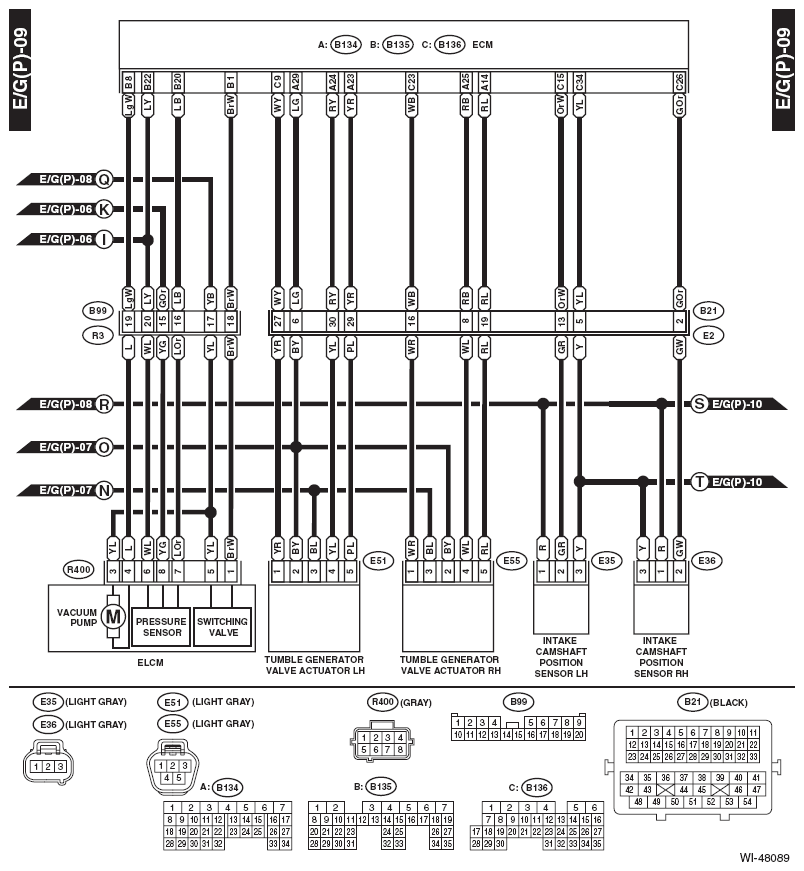

Fig 4: Engine Electrical System Wiring Diagram (4 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

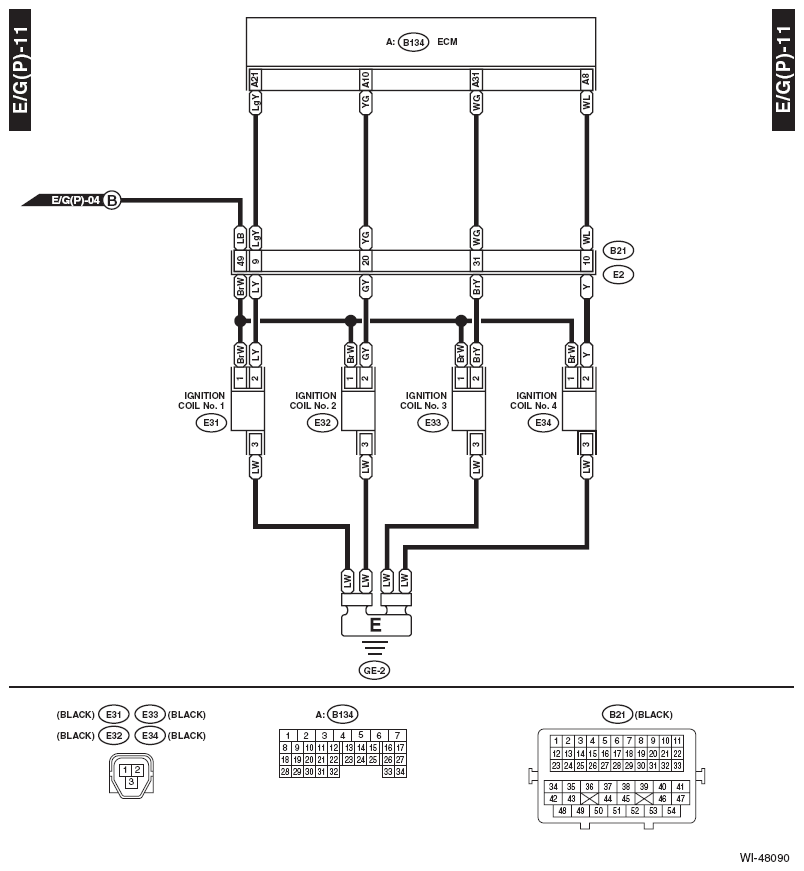

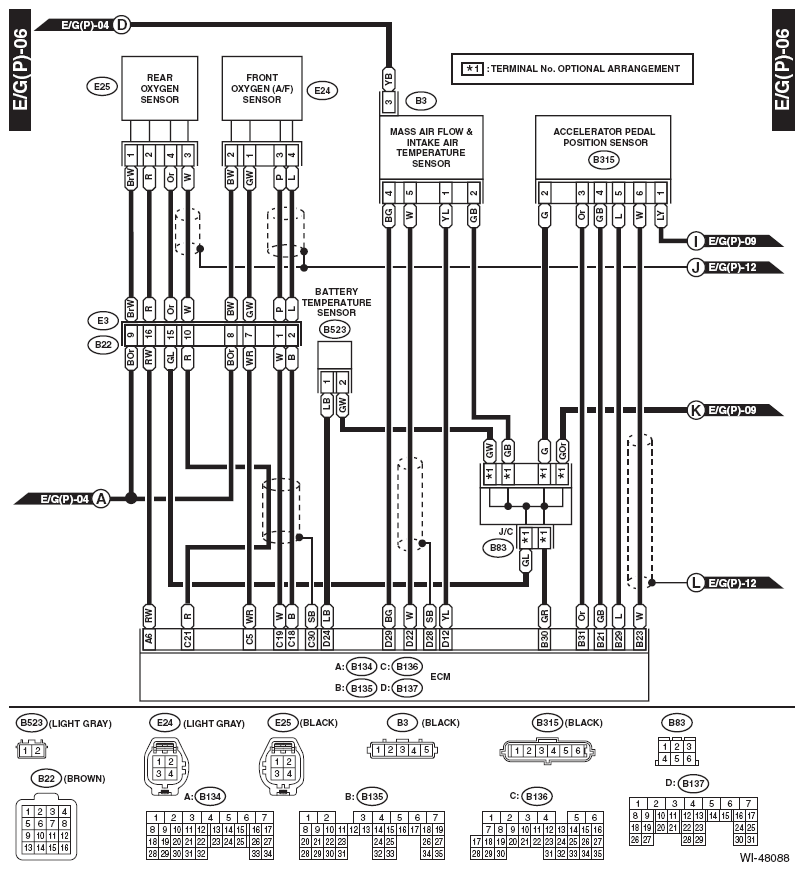

Fig 5: Engine Electrical System Wiring Diagram (5 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

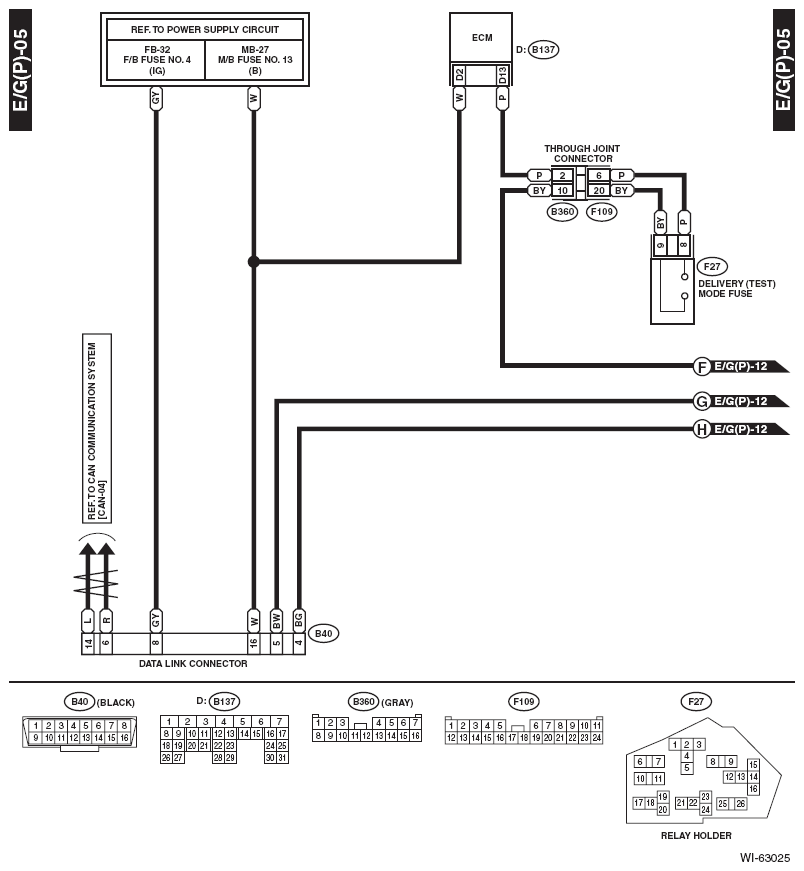

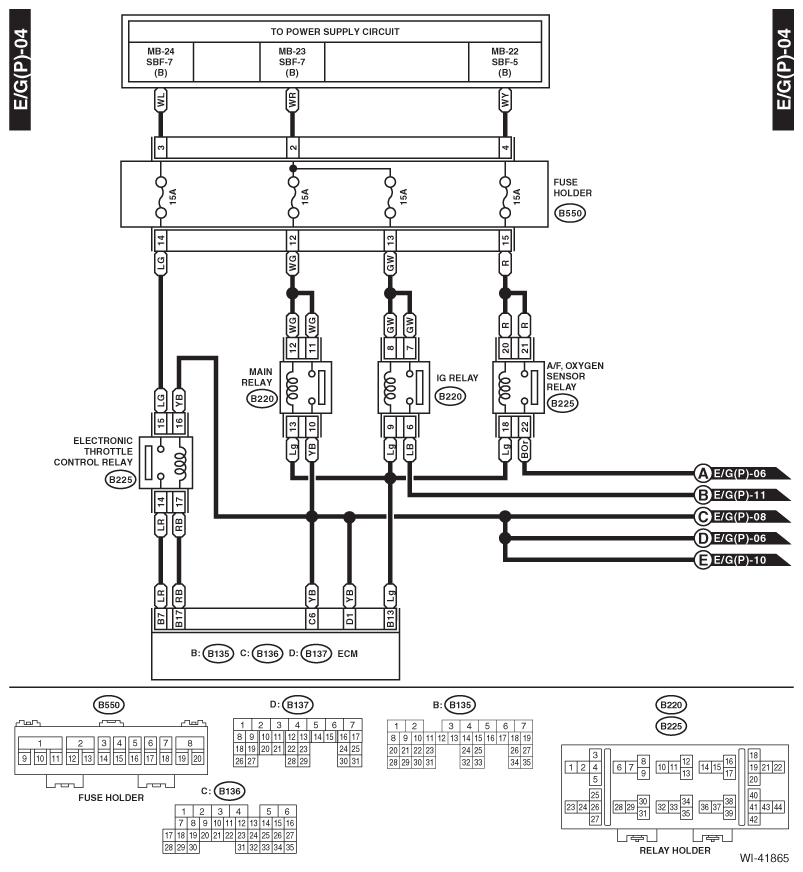

Fig 6: Engine Electrical System Wiring Diagram (6 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

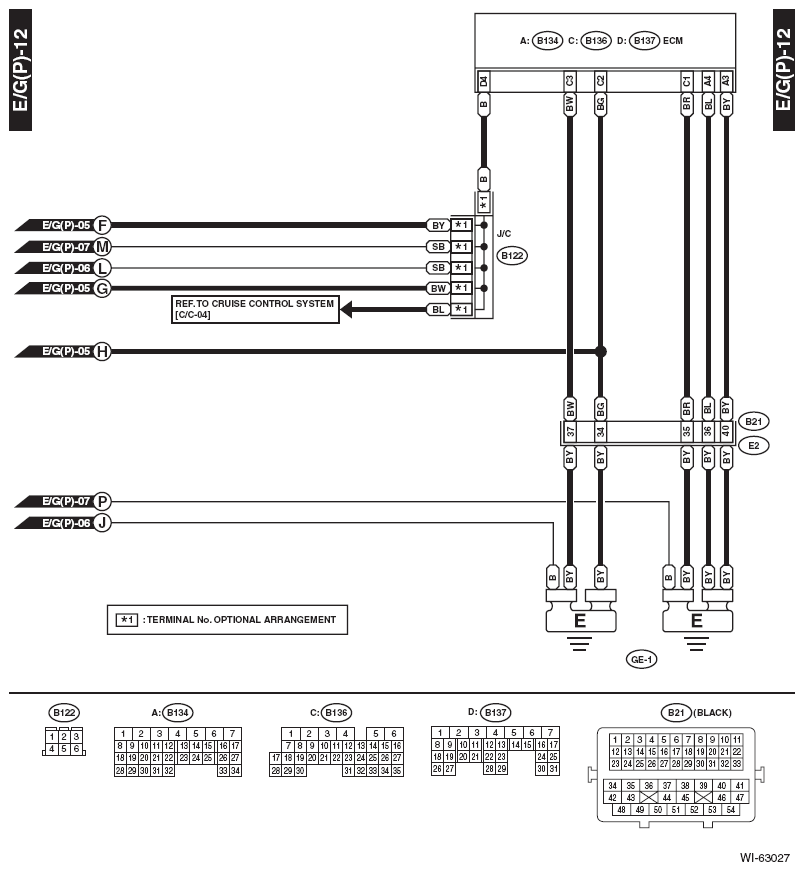

Fig 7: Engine Electrical System Wiring Diagram (7 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

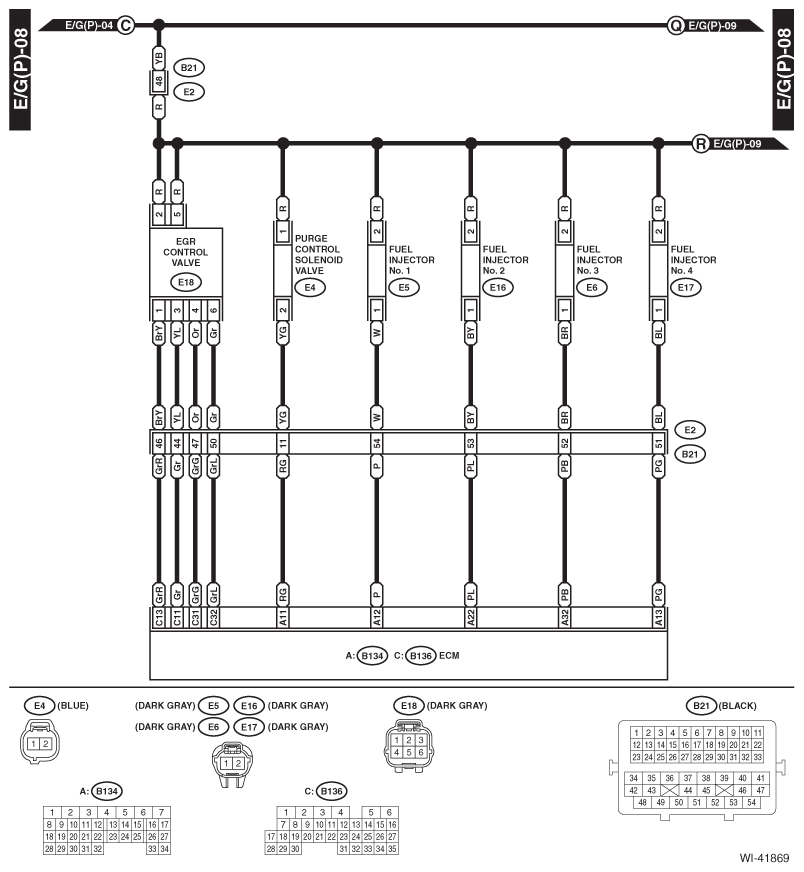

Fig 8: Engine Electrical System Wiring Diagram (8 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Engine Electrical System Wiring Diagram (9 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Engine Electrical System Wiring Diagram (10 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Engine Electrical System Wiring Diagram (11 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Engine Electrical System Wiring Diagram (12 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Engine Electrical System Wiring Diagram (13 Of 14)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Engine Electrical System Wiring Diagram (14 Of 14)

Courtesy of SUBARU OF AMERICA, INC.
