Electric Power Steering System: Wiring Diagram

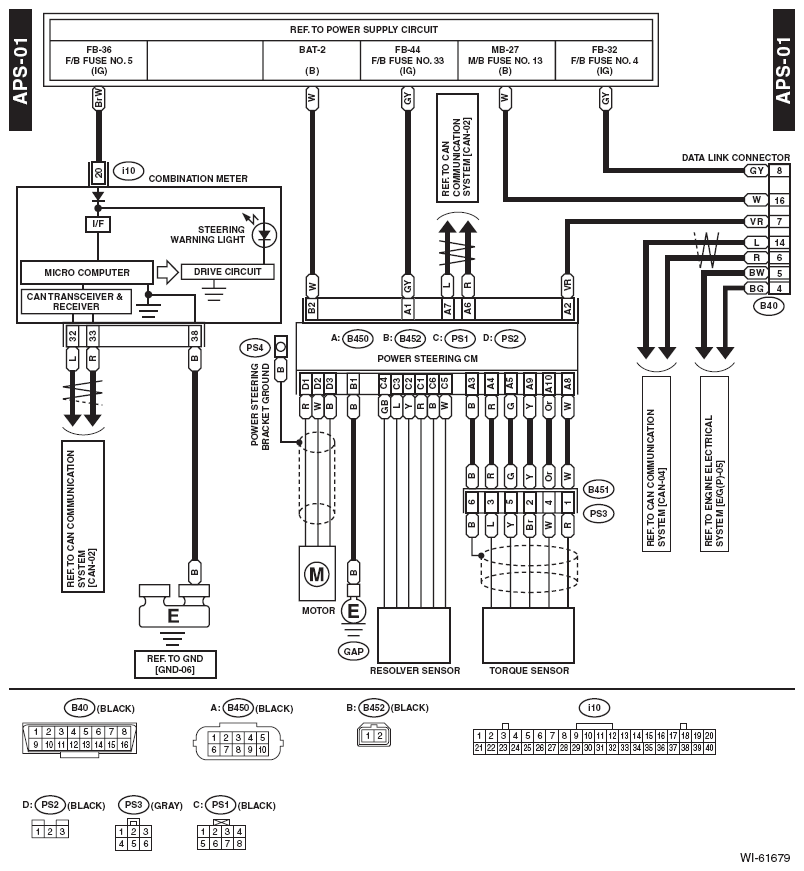

Fig 1: Electric Power Steering System Wiring Diagram

G11909266

Courtesy of SUBARU OF AMERICA, INC.
