Cruise Control System: Wiring Diagram

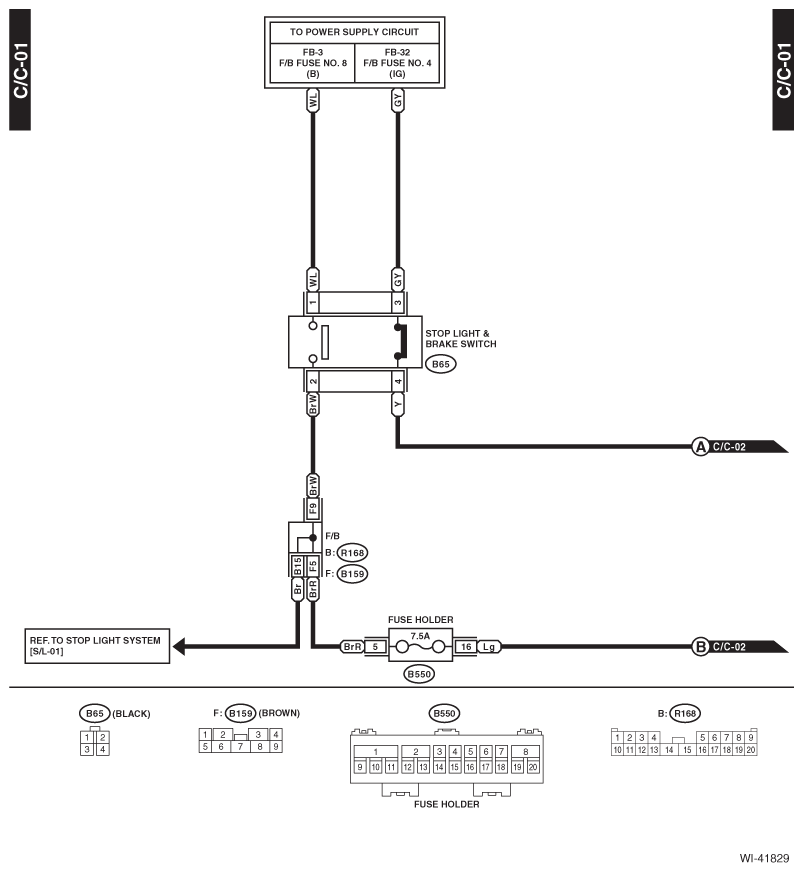

Fig 1: Cruise Control System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

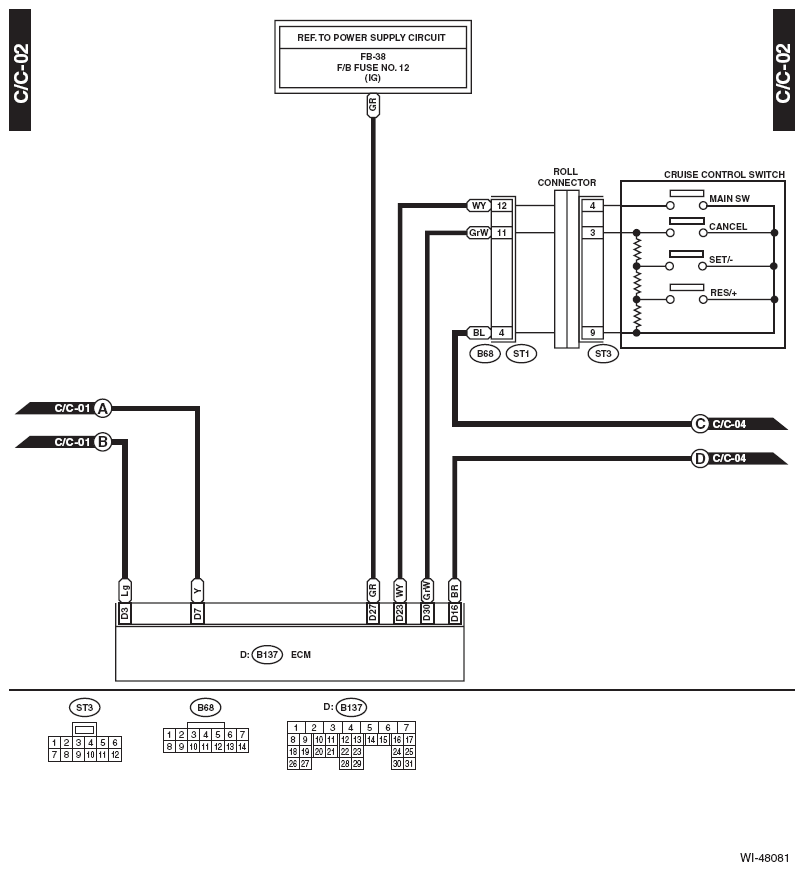

Fig 2: Cruise Control System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

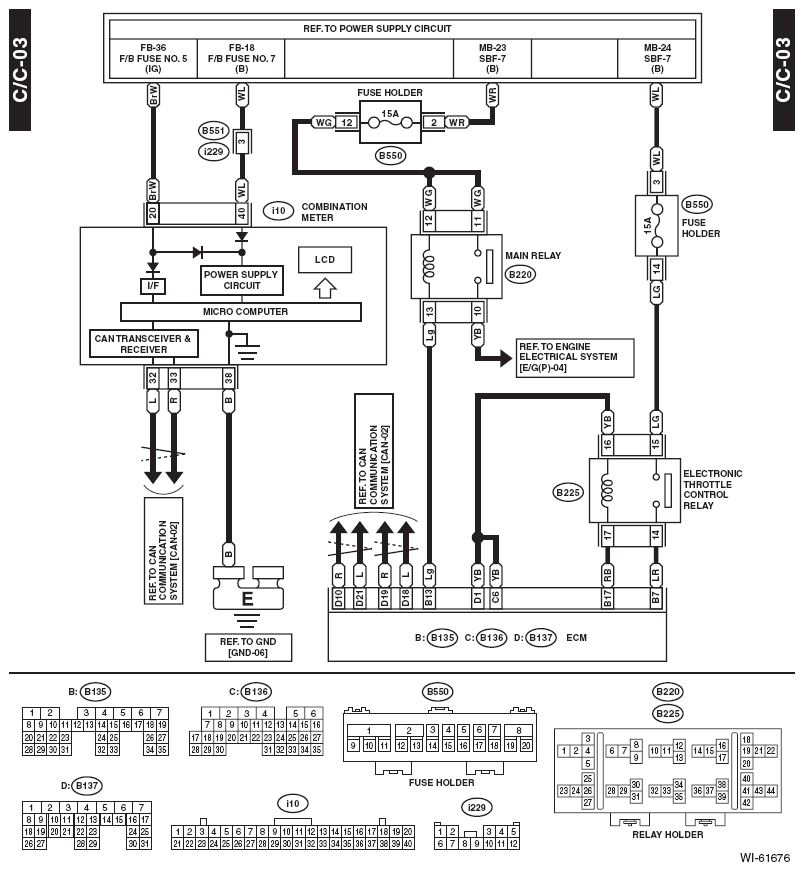

Fig 3: Cruise Control System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

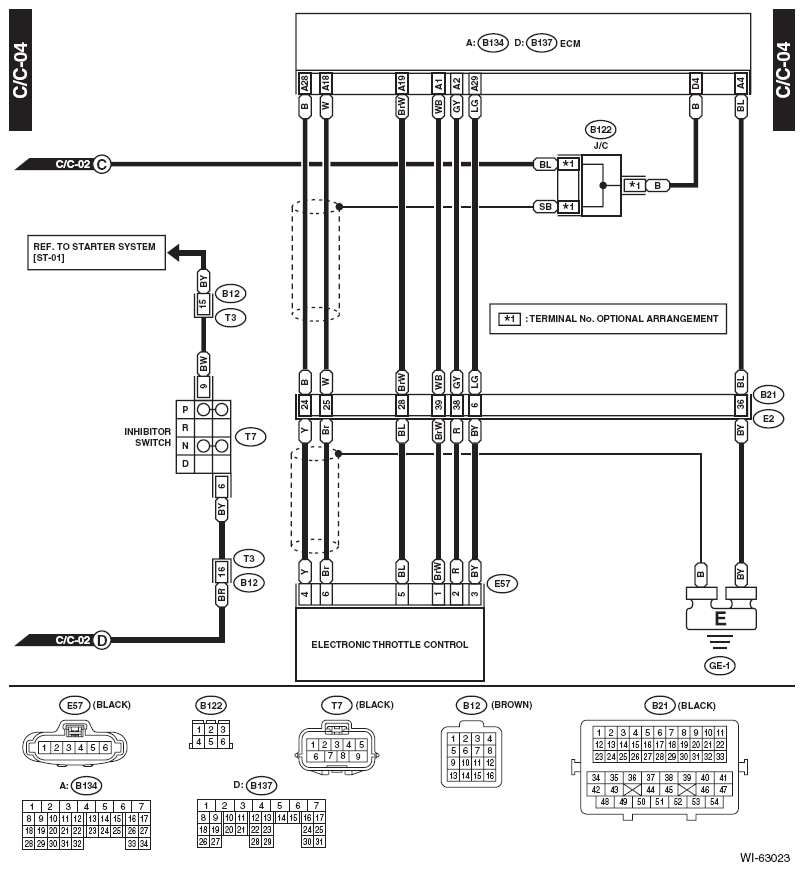

Fig 4: Cruise Control System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
