Combination Meter System: Wiring Diagram

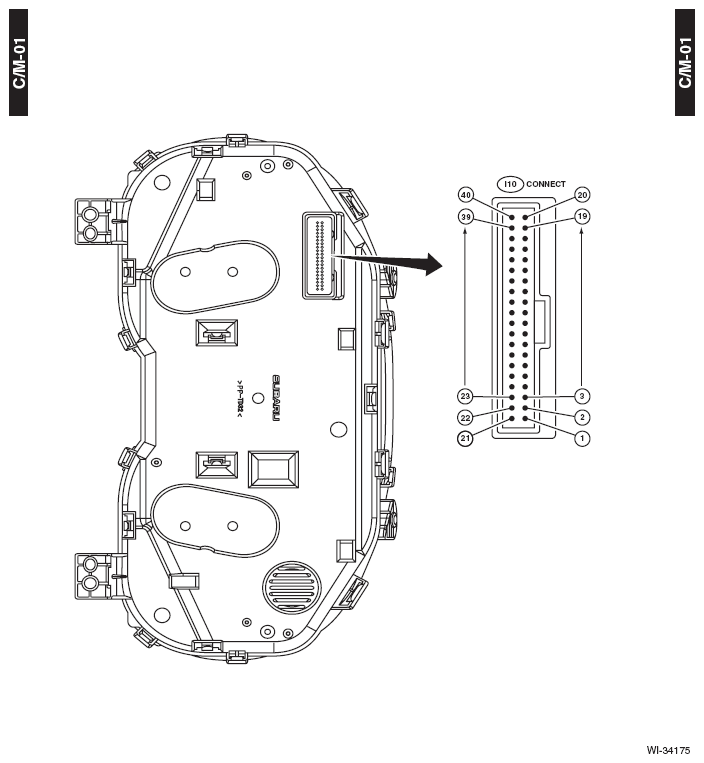

Fig 1: Combination Meter System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

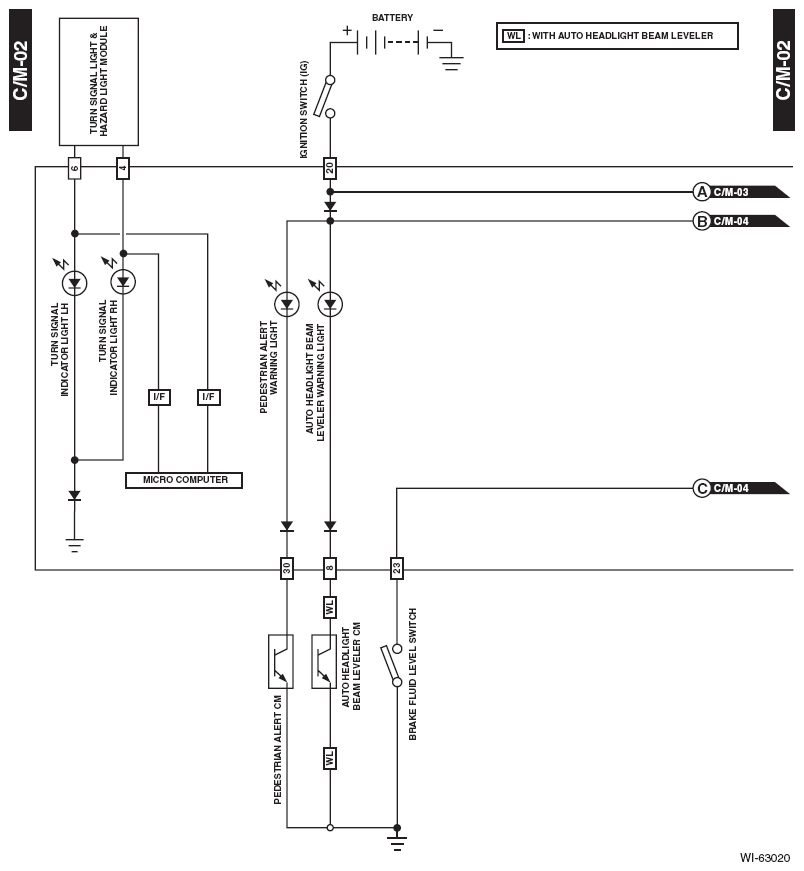

Fig 2: Combination Meter System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

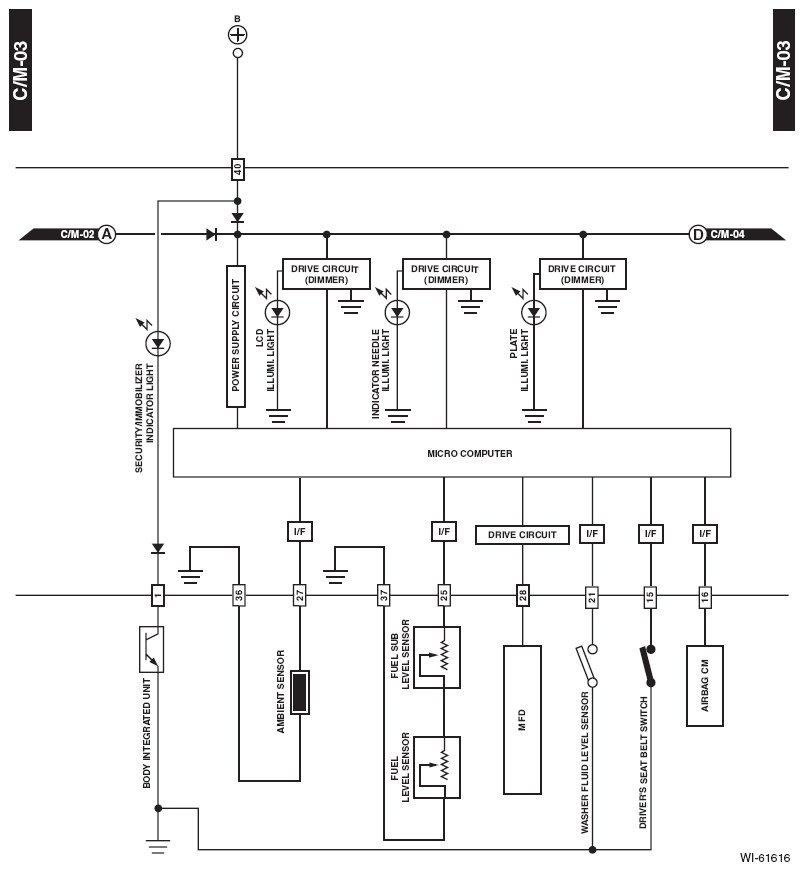

Fig 3: Combination Meter System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

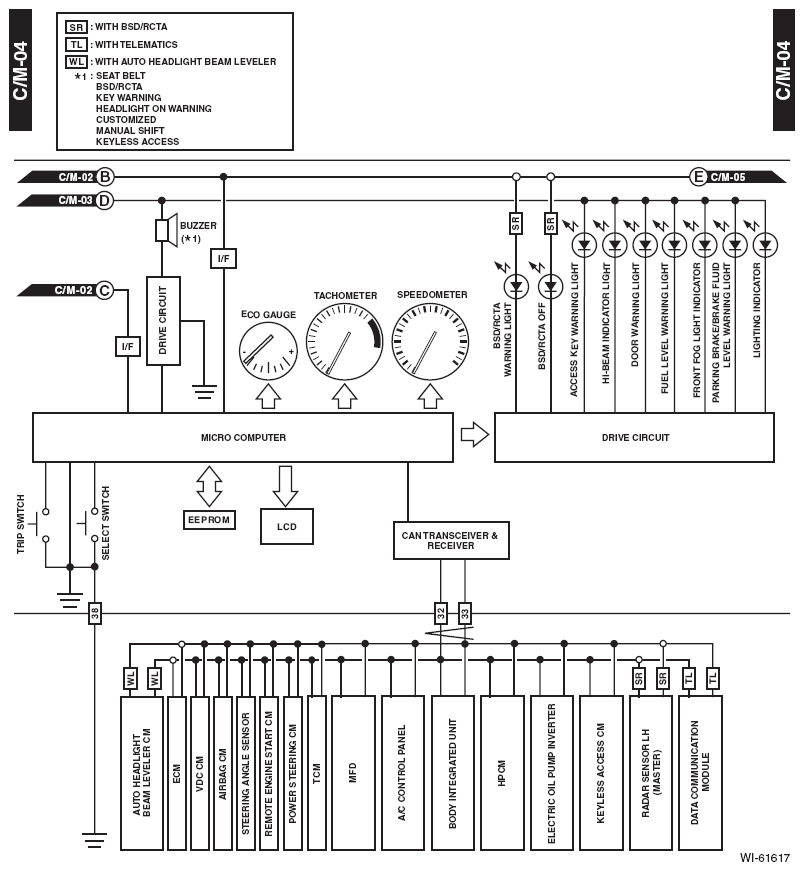

Fig 4: Combination Meter System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

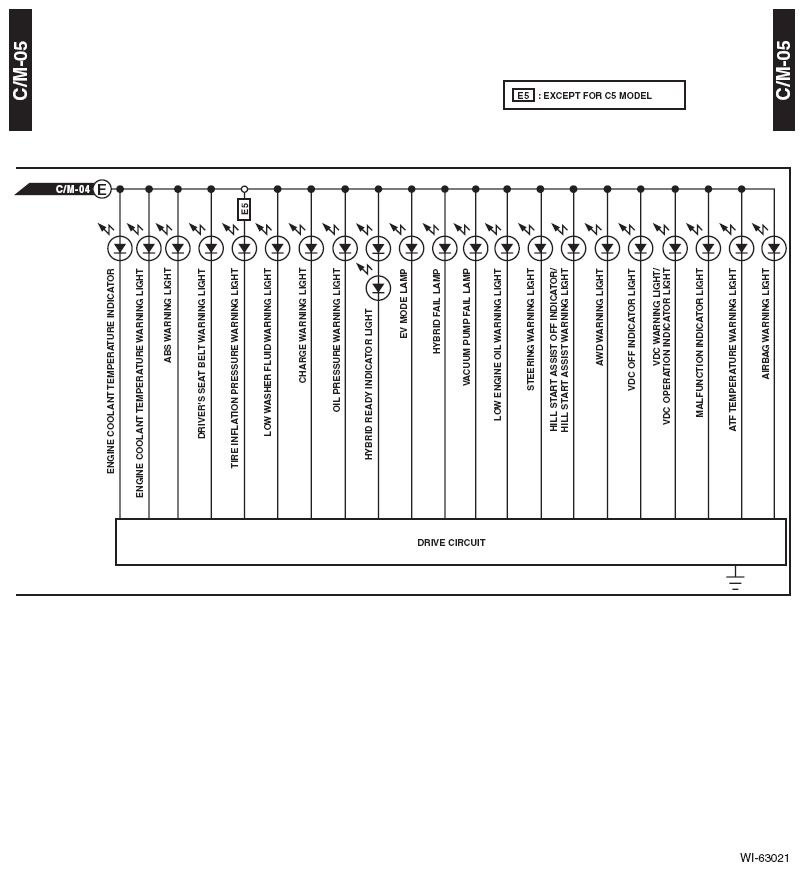

Fig 5: Combination Meter System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
