CVT Control System: Wiring Diagram

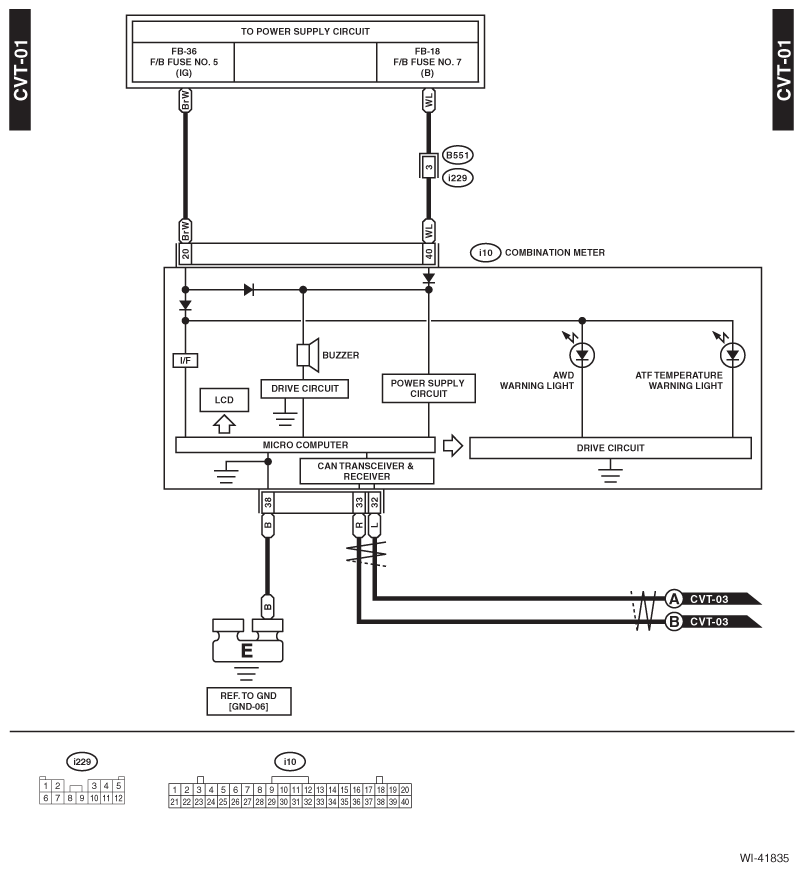

Fig 1: CVT Control System Wiring Diagram (1 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

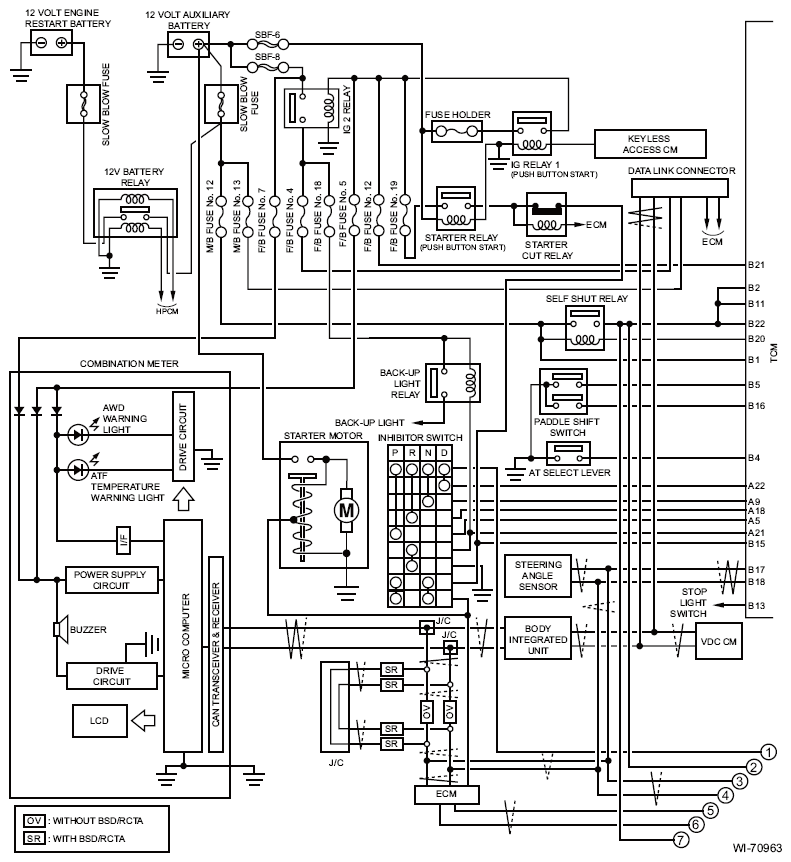

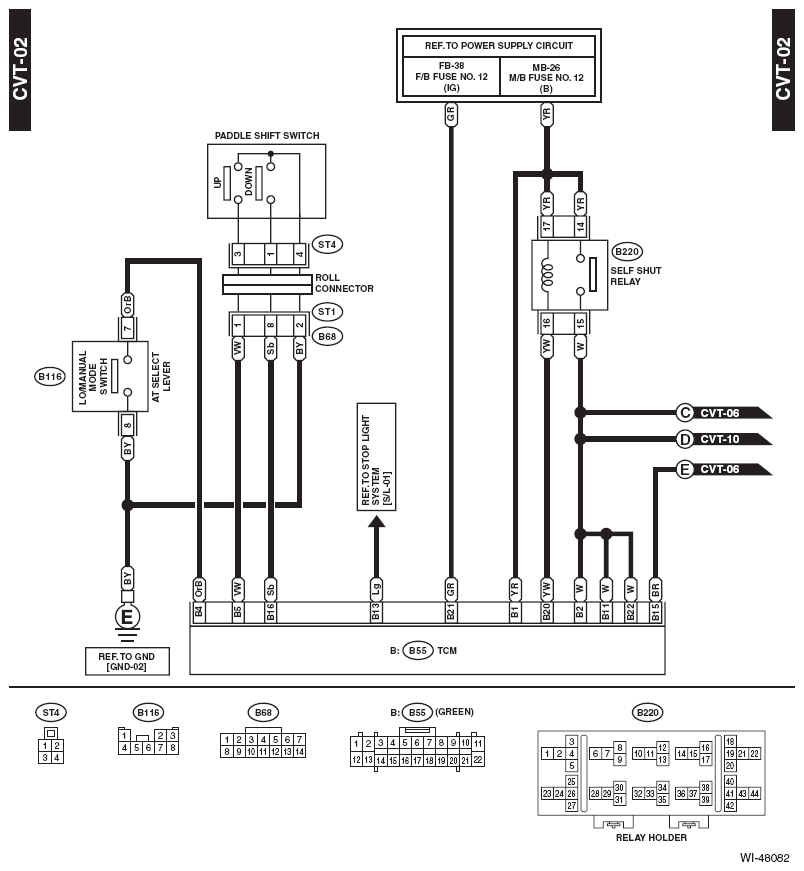

Fig 2: CVT Control System Wiring Diagram (2 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

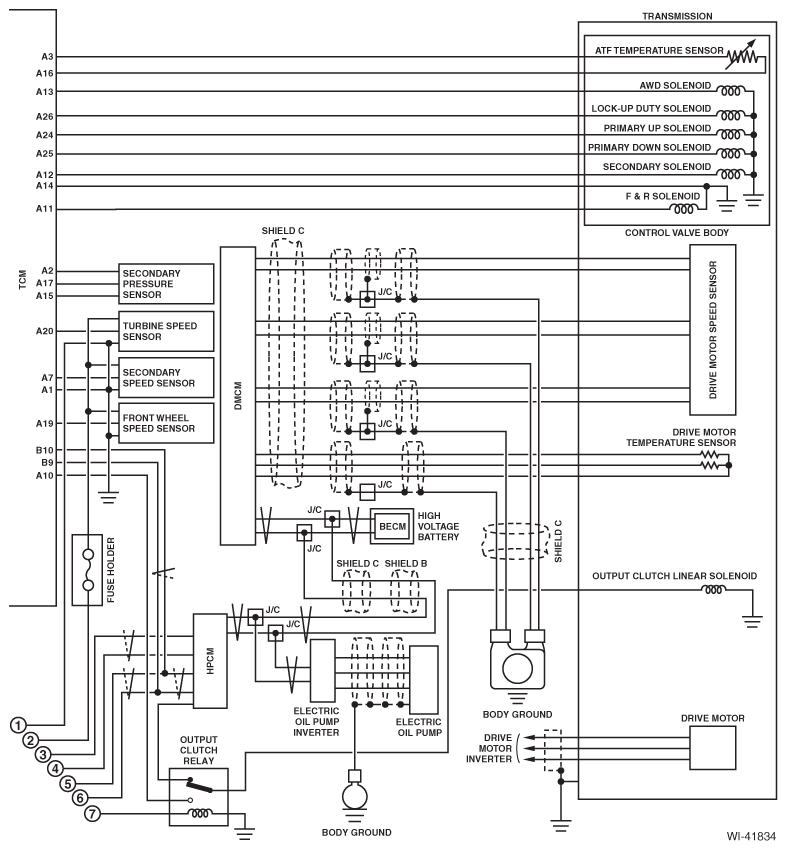

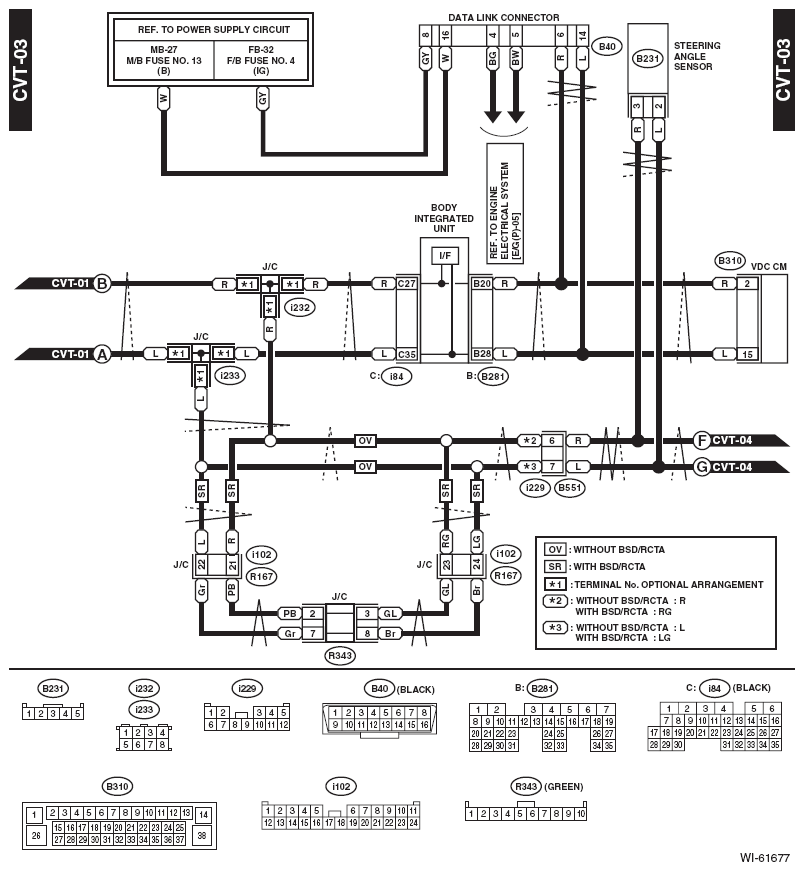

Fig 3: CVT Control System Wiring Diagram (3 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: CVT Control System Wiring Diagram (4 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

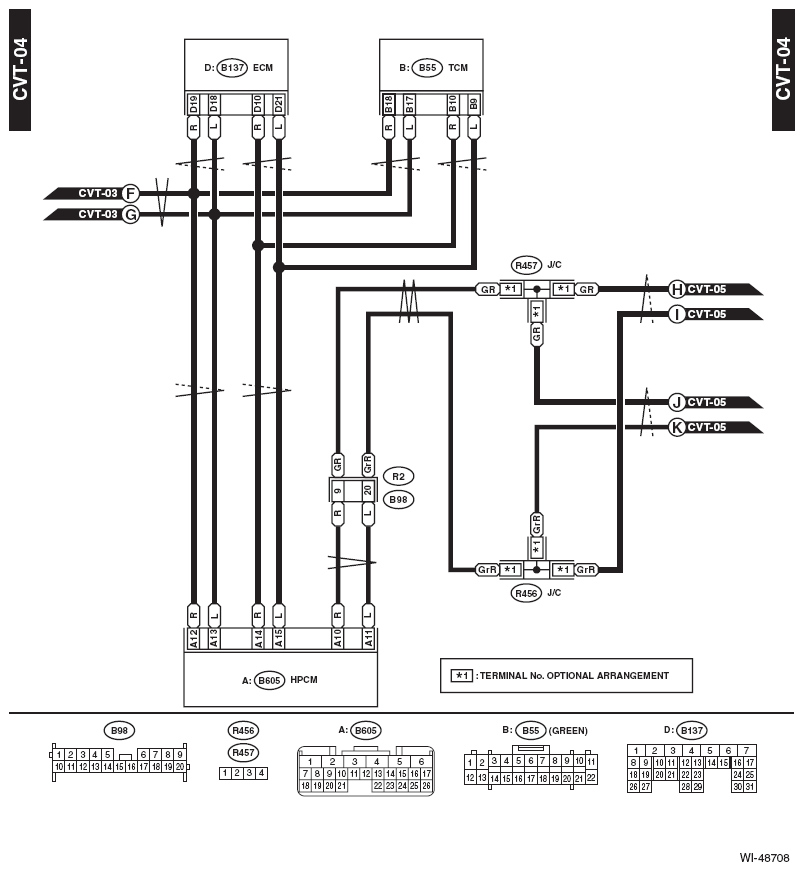

Fig 5: CVT Control System Wiring Diagram (5 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

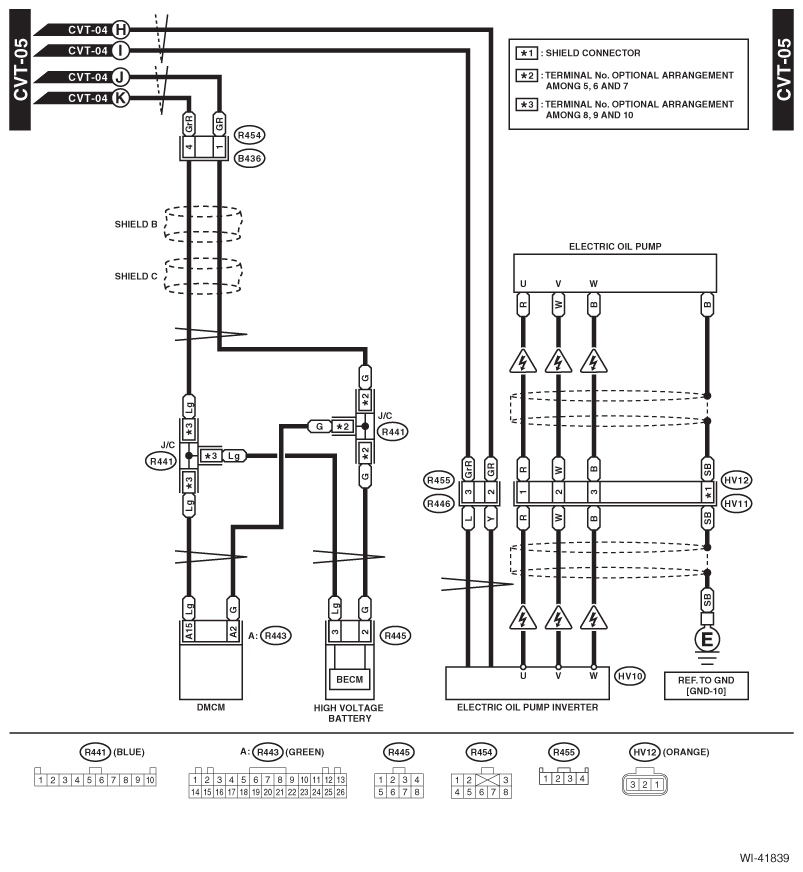

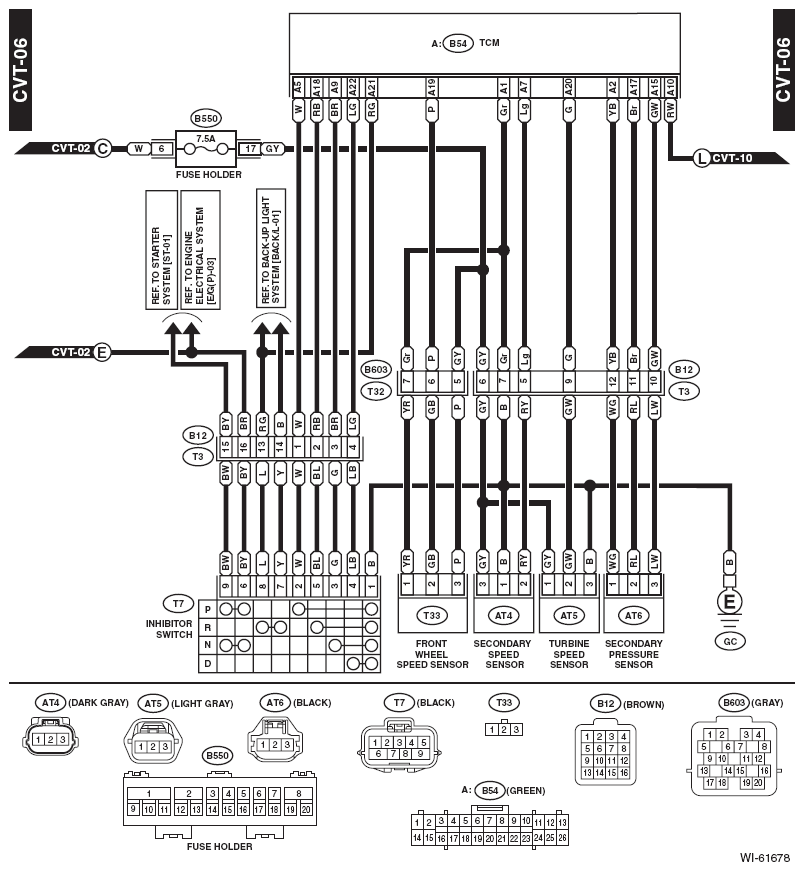

Fig 6: CVT Control System Wiring Diagram (6 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

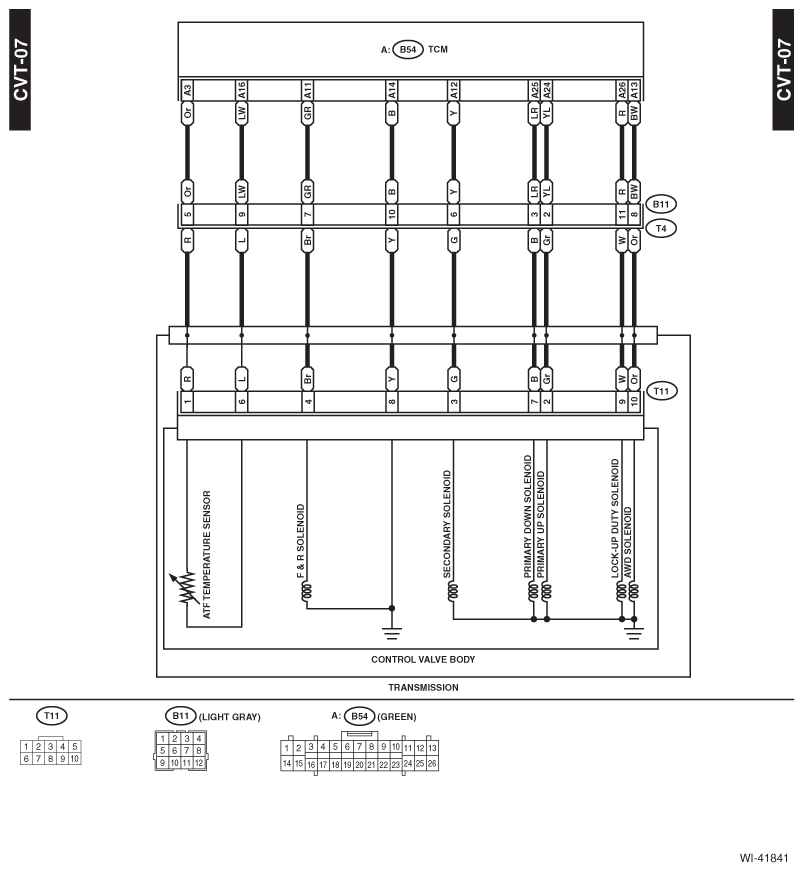

Fig 7: CVT Control System Wiring Diagram (7 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

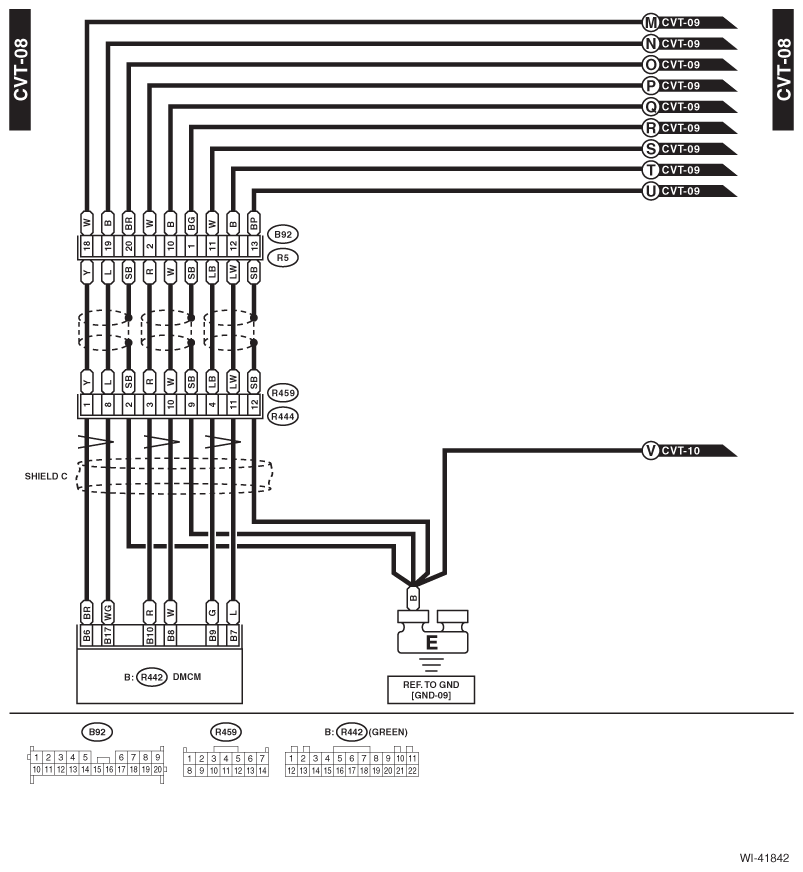

Fig 8: CVT Control System Wiring Diagram (8 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

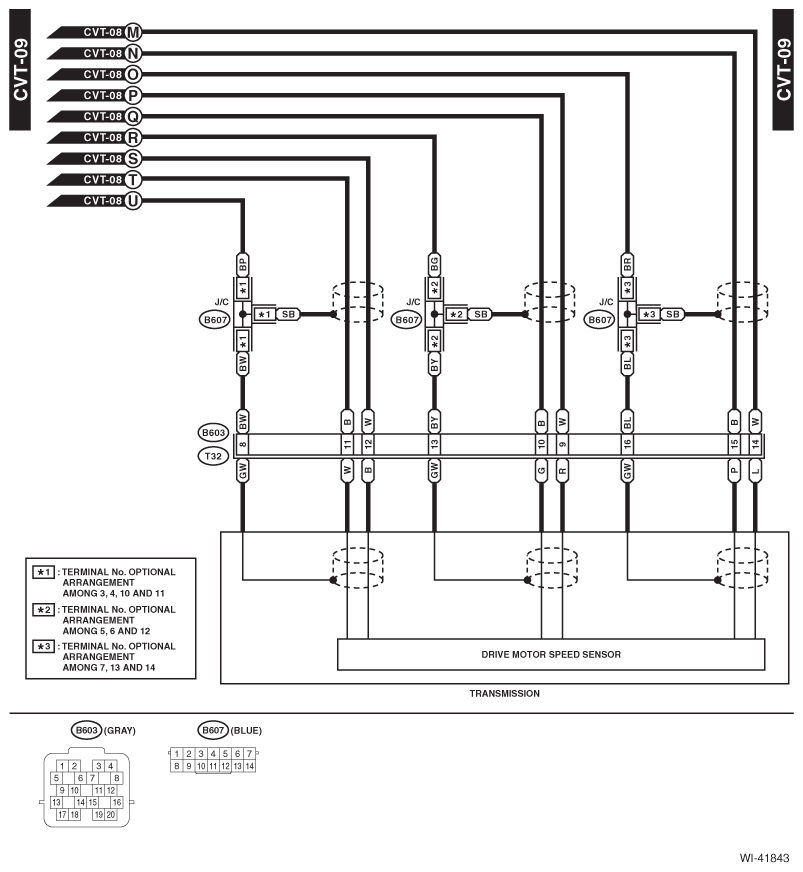

Fig 9: CVT Control System Wiring Diagram (9 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

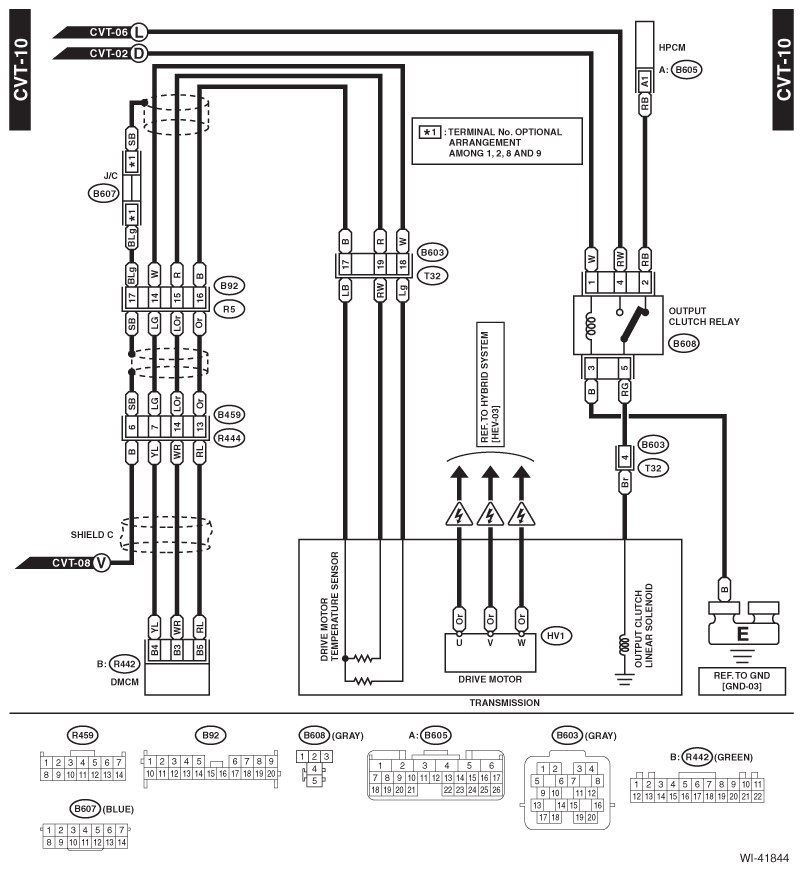

Fig 10: CVT Control System Wiring Diagram (10 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: CVT Control System Wiring Diagram (11 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: CVT Control System Wiring Diagram (12 Of 12)

Courtesy of SUBARU OF AMERICA, INC.
