Bulkhead Wiring Harness (In Engine Compartment) RH: Location

Connector Connecting to
No. Pole Color Area No. Description
B3 5 Black C-4   Mass air flow and intake air temperature sensor
B6 2 Light gray C-3   Front ABS wheel speed sensor RH
B11 12 Light gray C-4 T4 Transmission cord
B12 16 Brown C-4 T3
B14 1 Black C-5   Starter motor
B21 54 Black C-4 E2 Engine wiring harness
B22 16 Brown C-3 E3
B164 2 Black D-1   Keyless buzzer
B177 2 Gray B-4   Wiper deicer
B310 38 (1) B-2   VDC CM
B321 2 Black C-2   Hood switch
B450 10 Black C-3   Power steering CM
B451 6 Gray C-3   Torque sensor
B452 2 Black B-3   Power steering CM
B597 2 Light gray D-1   Pedestrian alert speaker
B598 2 Black C-2   12V engine restart battery sensor
B599 4 Black C-2   12V battery relay
B603 20 Gray C-4 T32 Transmission cord
B609 1 Gray C-2 B610 Generator cord
B610 1 Gray C-2 B609 Bulkhead wiring harness
(1) White or natural color
Connector Connecting to
No. Pole Color Area No. Description
AB16 2 Yellow D-1   Front sub sensor RH
* White or natural color

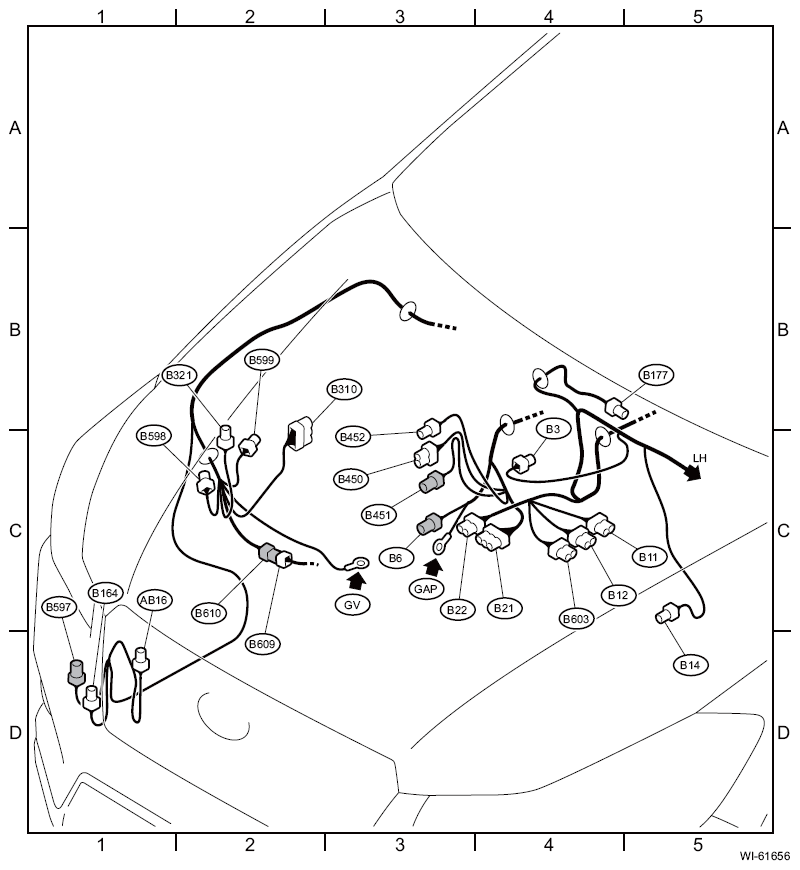

Fig 1: Bulkhead Wiring Harness Location (Engine Compartment) - RH
G11909383Courtesy of SUBARU OF AMERICA, INC.
