Bulkhead Wiring Harness (In Engine Compartment) LH: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
B8	5	Light gray	B-4		Front wiper motor
B10	4	Light gray	C-3		Pressure switch
B15	2	Light gray	B-3		Front ABS wheel speed sensor LH
B16	2	Gray	B-3		Brake fluid level switch
B143	20	(1)	B-3		M/B
B144	9	Brown	B-2
B145	7	Brown	B-3
B146	2	Black	D-3		Front washer motor
B147	2	Gray	D-3		Rear washer motor
B186	8		B-3		M/B
B360	16	Gray	B-3	F109	Through joint connector
B361	14	Gray	B-3	F108
B396	2	Brown	D-2		Washer fluid level sensor
B523	2	Light gray	C-3		Battery temperature sensor
B564	21	Black	B-3		Relay holder
B565	3	Black	B-3		Brake booster pressure sensor 1
B571	2	(1)	B-3		M/B
B600	3	Black	B-3		Brake booster pressure sensor 2
(1) White or natural color

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
AB13	2	Yellow	C-1		Front sub sensor LH
* White or natural color

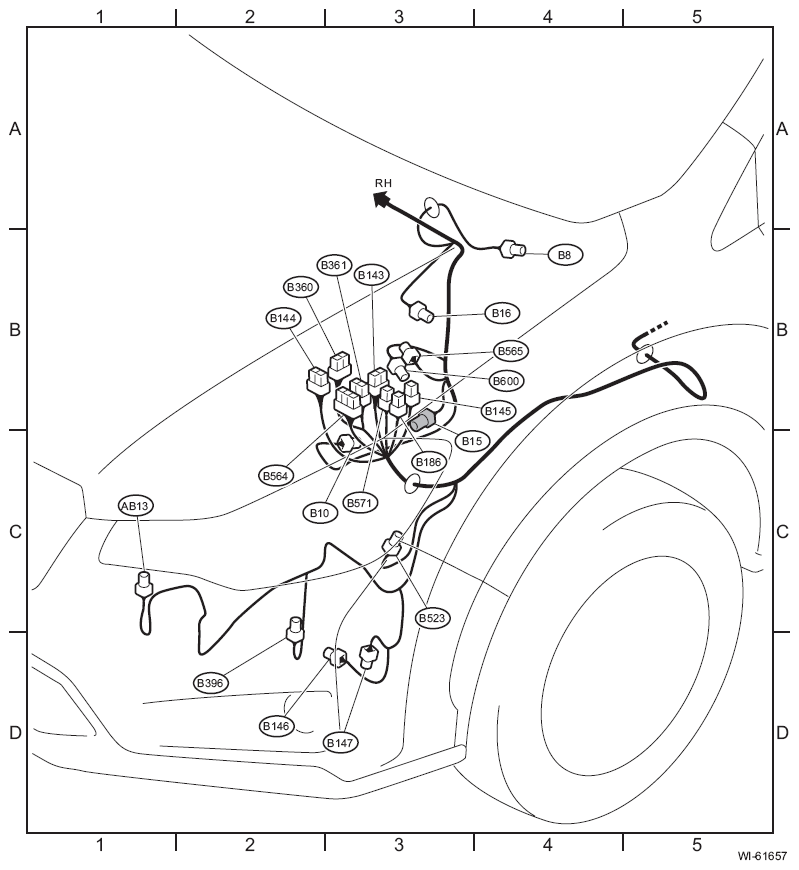

Fig 1: Bulkhead Wiring Harness Location (Engine Compartment) - LH

Courtesy of SUBARU OF AMERICA, INC.
