Blind Spot Detection/Rear Cross Traffic Alert: Wiring Diagram

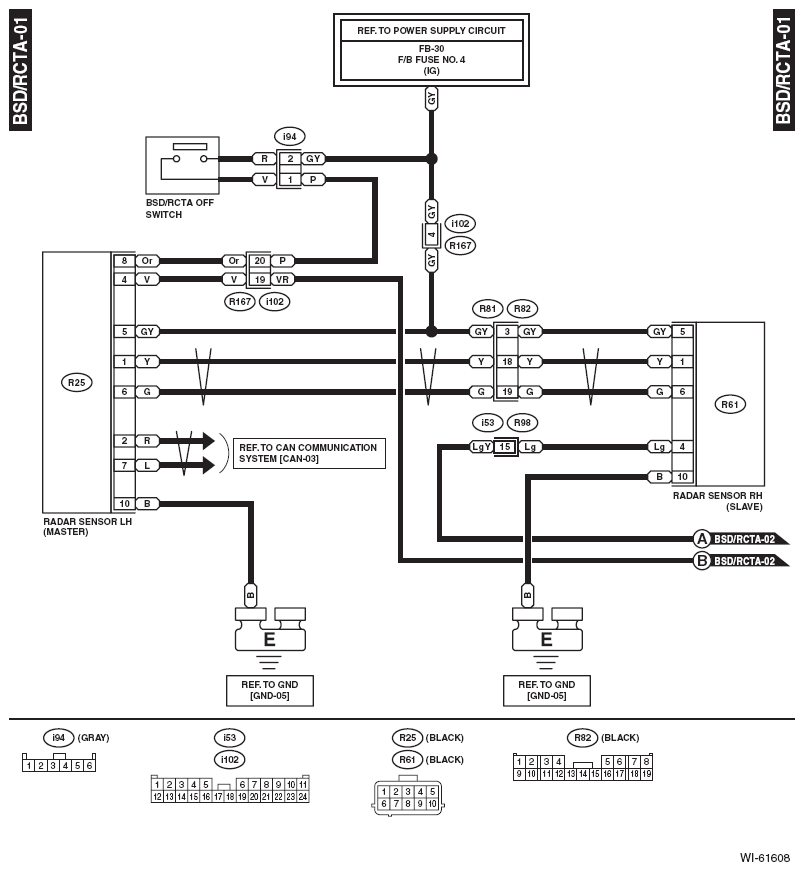

Fig 1: Blind Spot Detection/Rear Cross Traffic Alert Wiring Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

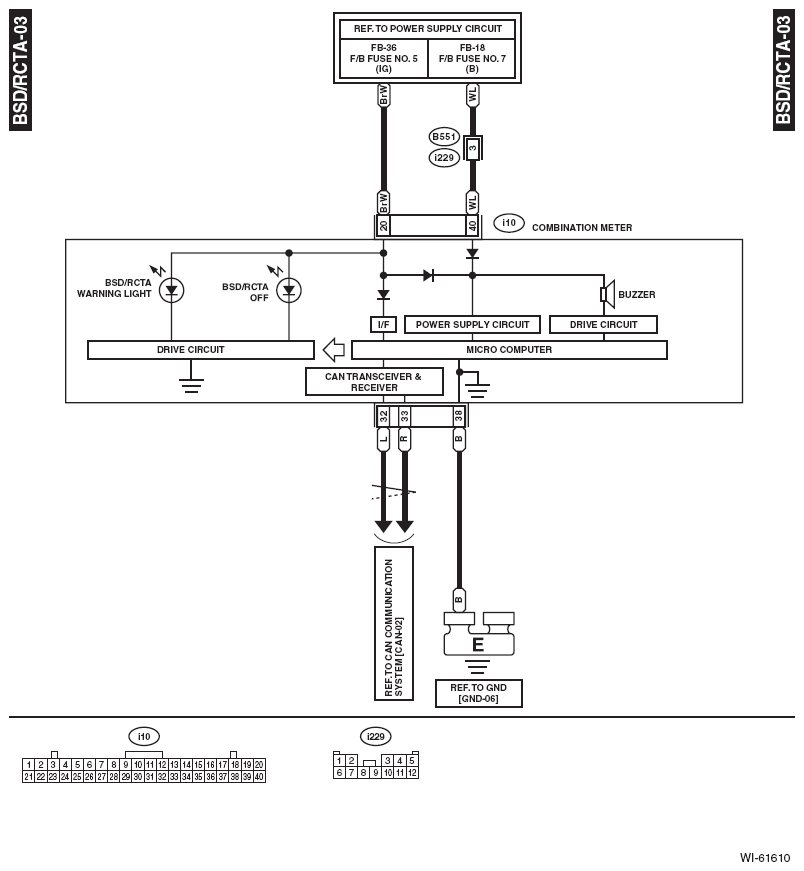

Fig 2: Blind Spot Detection/Rear Cross Traffic Alert Wiring Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

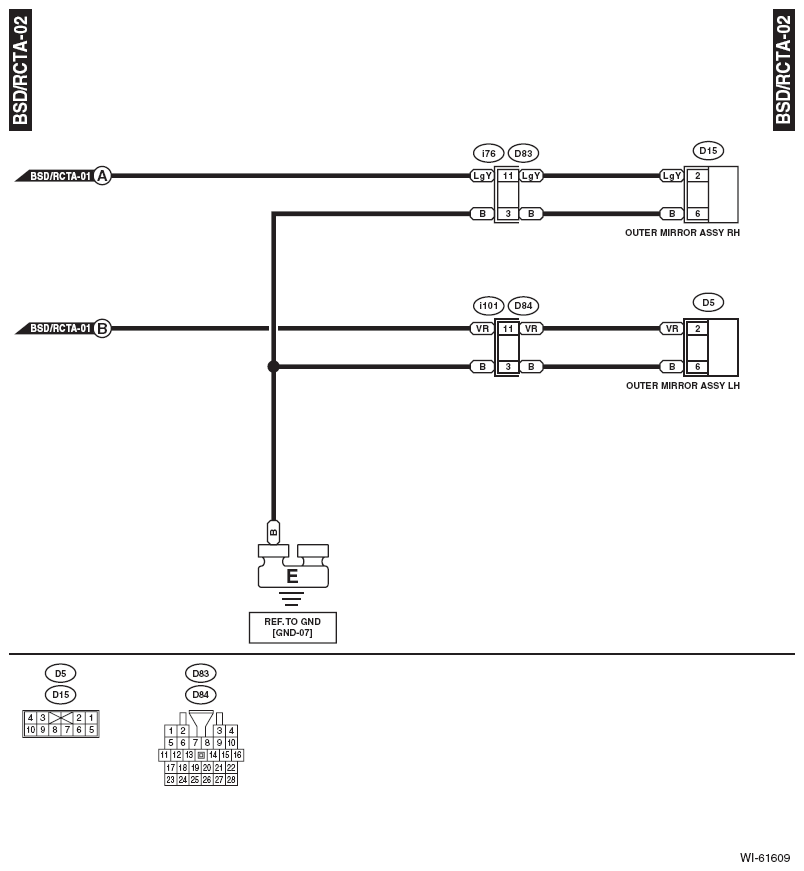

Fig 3: Blind Spot Detection/Rear Cross Traffic Alert Wiring Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
