Symbols In Wiring Diagrams: Notes

A number of symbols are used in each wiring diagram to easily identify parts or circuits.

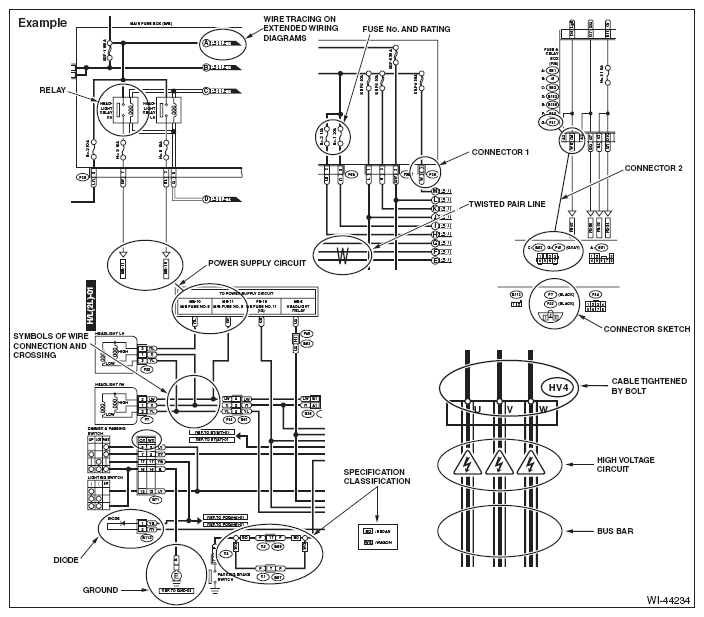

Fig 1: Example Of Symbols In Wiring Diagrams
G09490723Courtesy of SUBARU OF AMERICA, INC.
