Back-up Light System: Wiring Diagram

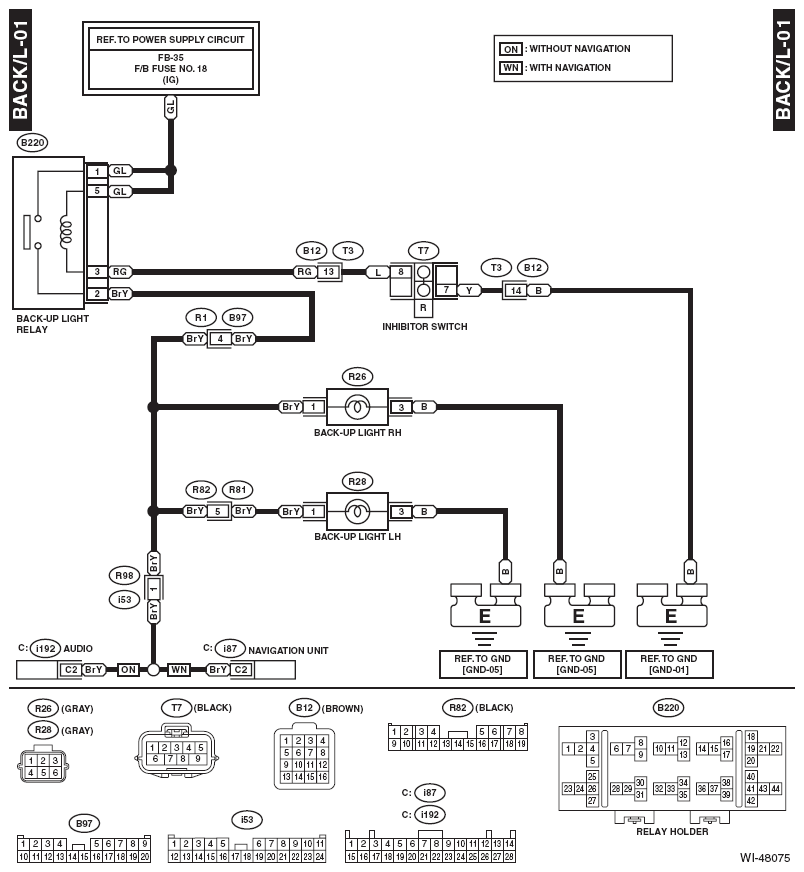

Fig 1: Back-Up Light System Wiring Diagram

G11909228

Courtesy of SUBARU OF AMERICA, INC.
