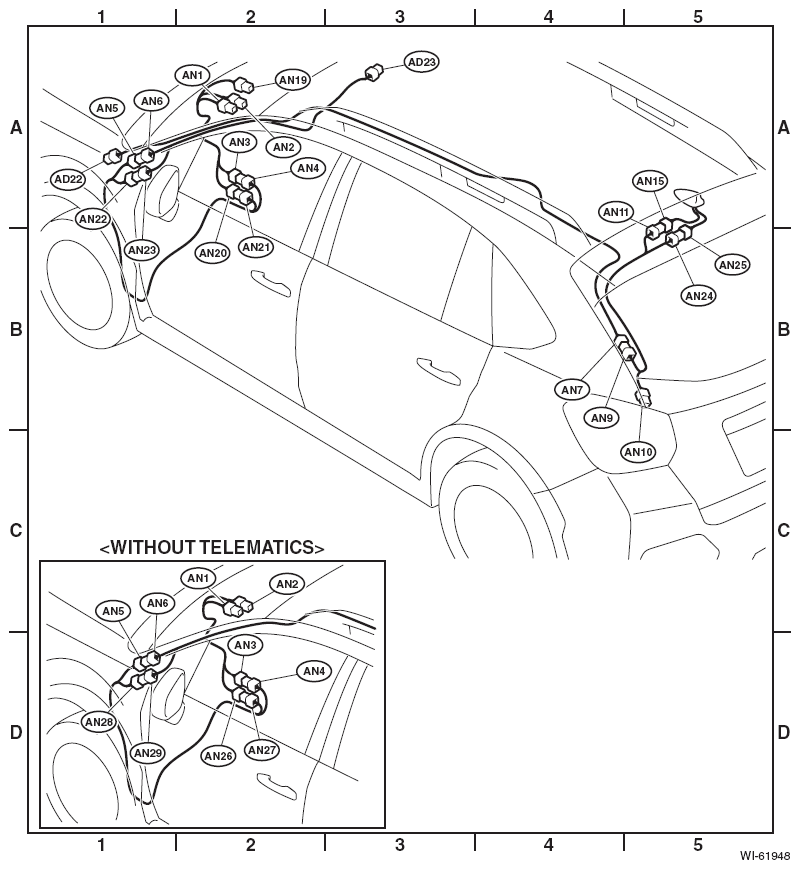

| AN1 |
3 |
|
A-2 |
|
Audio (with telematics) |
| 3 |
|
A-2 |
|
Navigation unit (with telematics) |
| 3 |
|
C-2 |
|
Audio (without telematics) |
| 3 |
|
C-2 |
|
Navigation unit (without telematics) |
| AN2 |
1 |
Blue |
A-2 |
|
Audio (with telematics) |
| 1 |
Blue |
A-2 |
|
Navigation unit (with telematics) |
| 1 |
Blue |
C-2 |
|
Audio (without telematics) |
| 1 |
Blue |
C-2 |
|
Navigation unit (without telematics) |
| AN3 |
3 |
|
A-2 |
AN4 |
Antenna cord (with telematics) |
| 3 |
Gray |
D-2 |
AN4 |
Antenna cord (without telematics) |
| AN4 |
1 |
|
A-2 |
AN3 |
Antenna cord (with telematics) |
| 2 |
Gray |
D-2 |
AN3 |
Antenna cord (without telematics) |
| AN5 |
3 |
|
A-1 |
AN6 |
Antenna cord (with telematics) |
| 3 |
|
D-1 |
AN6 |
Antenna cord (without telematics) |
| AN6 |
3 |
|
A-1 |
AN5 |
Antenna cord (with telematics) |
| 3 |
|
D-1 |
AN5 |
Antenna cord (without telematics) |
| AN7 |
3 |
Blue |
B-4 |
AN9 |
Antenna cord (with telematics) |
| 3 |
|
B-4 |
AN9 |
Antenna cord (without telematics) |
| AN9 |
3 |
Blue |
B-4 |
AN7 |
Antenna cord (with telematics) |
| 3 |
|
B-4 |
AN7 |
Antenna cord (without telematics) |
| AN10 |
1 |
|
B-5 |
R97 |
Antenna cord |
| AN11 |
3 |
|
B-5 |
AN15 |
| AN15 |
3 |
|
B-5 |
AN11 |
Antenna |
| AN19 |
1 |
Brown |
A-2 |
|
Data communication module |
| AN20 |
1 |
Violet |
A-2 |
AN21 |
Antenna cord |
| AN21 |
1 |
Violet |
A-2 |
AN20 |
| AN22 |
1 |
Violet |
A-1 |
AN23 |
| AN23 |
1 |
Violet |
A-1 |
AN22 |
| AN24 |
1 |
Violet |
B-5 |
AN25 |
| AN25 |
1 |
Violet |
B-5 |
AN24 |
Antenna |
| AN26 |
1 |
Green |
D-2 |
AN27 |
Antenna cord |
| AN27 |
1 |
Green |
D-2 |
AN26 |
| AN28 |
1 |
Green |
D-1 |
AN29 |
| AN29 |
1 |
Green |
D-1 |
AN28 |
| AD22 |
8 |
|
A-1 |
B229 |
Bulkhead wiring harness |
| AD23 |
8 |
|
A-3 |
|
Telematics button |
