Subaru
>>
2016
>>
Crosstrek Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Airbag System
>>
Wiring Diagram
Airbag System: Wiring Diagram

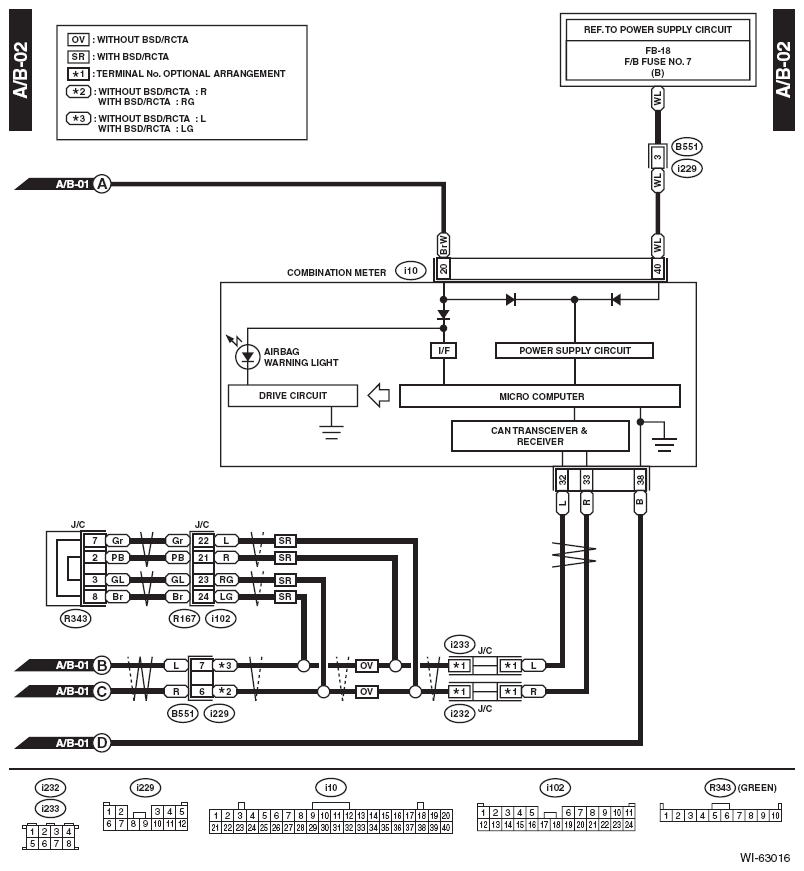

Fig 1: Airbag System Wiring Diagram (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

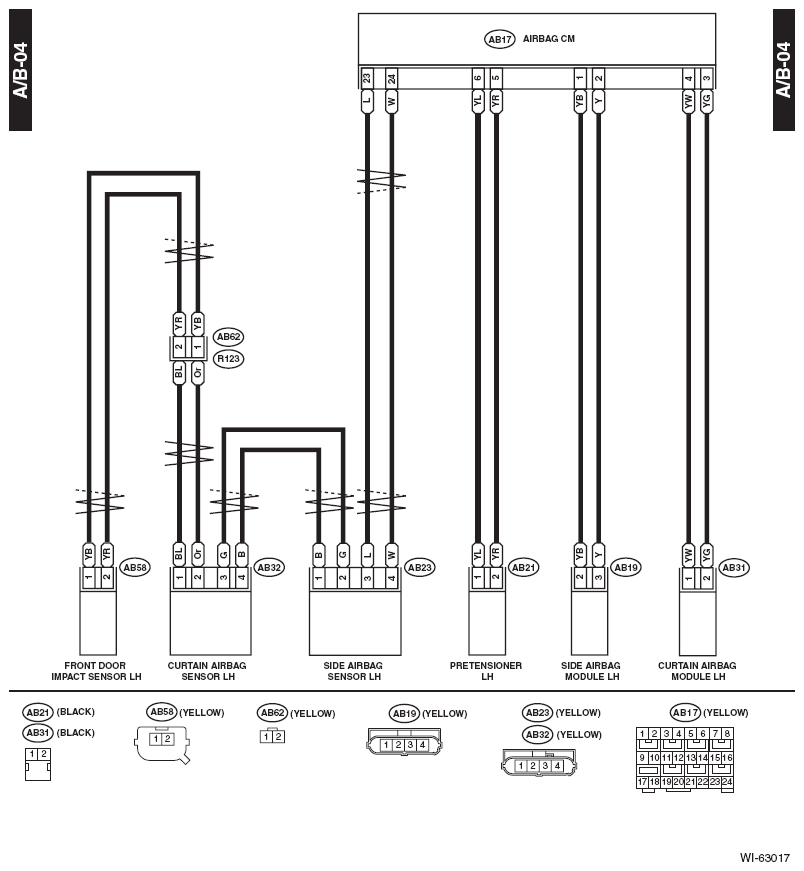

Fig 2: Airbag System Wiring Diagram (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

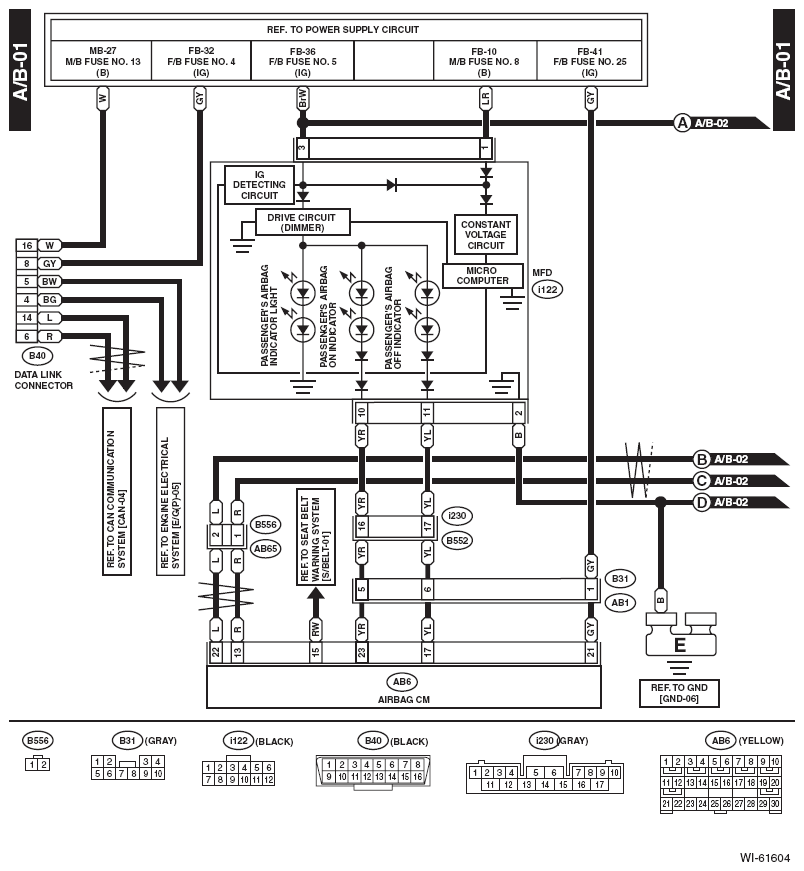

Fig 3: Airbag System Wiring Diagram (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

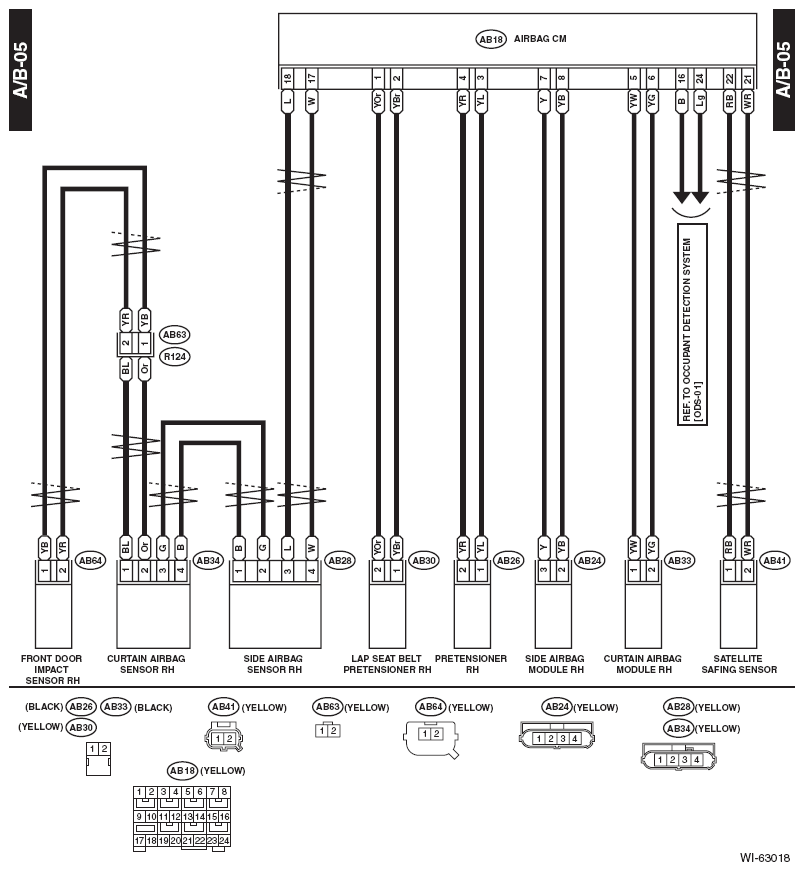

Fig 4: Airbag System Wiring Diagram (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

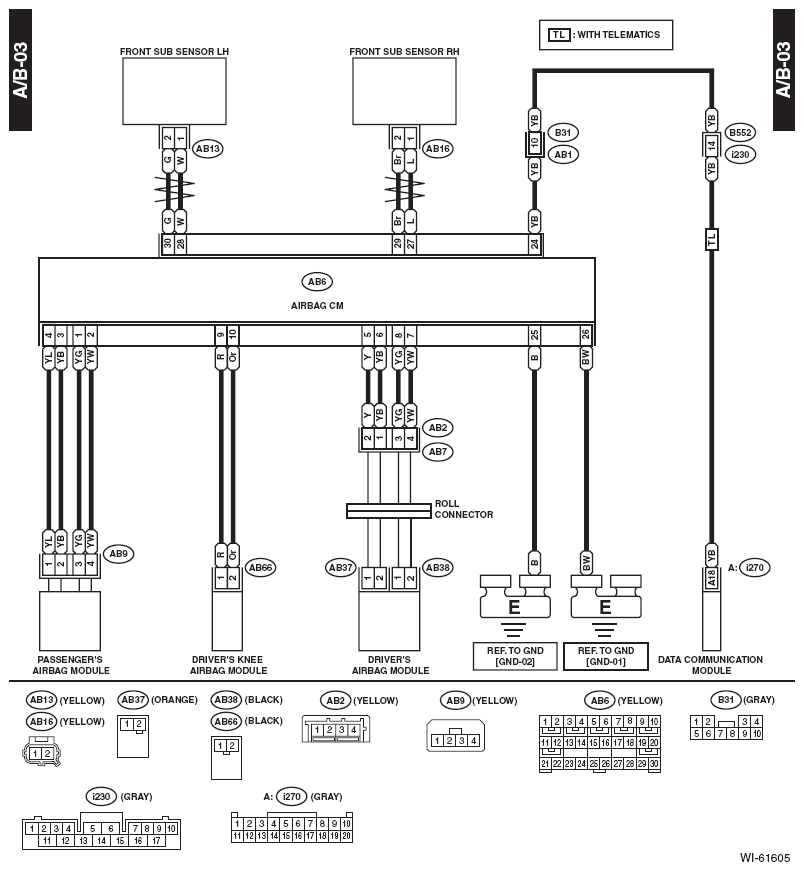

Fig 5: Airbag System Wiring Diagram (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
