Active Grille Shutter: Wiring Diagram

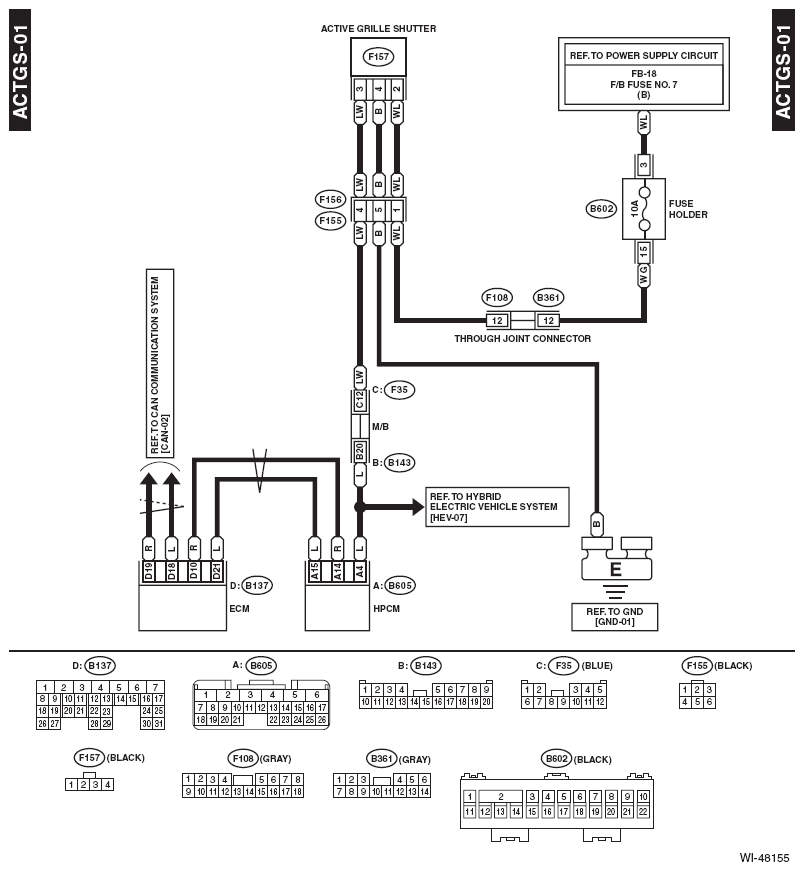

Fig 1: Active Grille Shutter Wiring Diagram

G11909213

Courtesy of SUBARU OF AMERICA, INC.
