Trunk Lid Garnish: Removal

  1. Remove the clips, and remove the trim panel - trunk lid.
    Fig 1: Identifying Trunk Lid Trim Panel Clips
    G08319499Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the garnish - trunk.
    1. Remove the nut.
    2. Remove the clips, and remove the garnish - trunk.

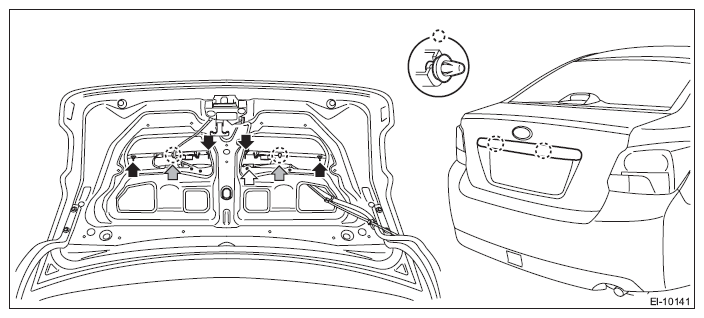

      Fig 2: Locating Trunk Garnish Clips
      G10320098Courtesy of SUBARU OF AMERICA, INC.
