Side Garnish: Removal

Remove the clips and detach the side garnish assembly.
- Impreza model

  Fig 1: Identifying Side Garnish Components (Impreza Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Crosstrek model

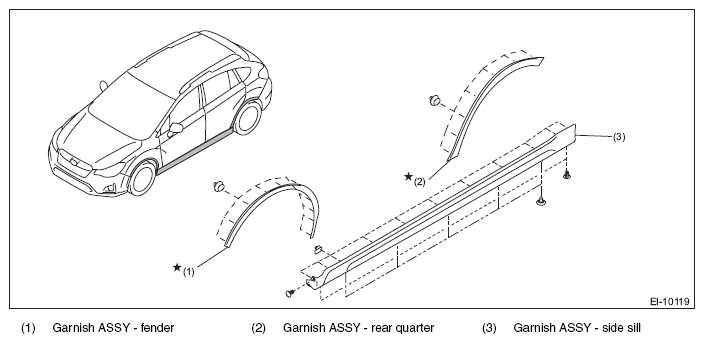

  Fig 2: Identifying Side Garnish Components (Crosstrek Model)
  Courtesy of SUBARU OF AMERICA, INC.
For Crosstrek model, remove the garnish assembly or protector on the fender panel.
CAUTION: Do not reuse the garnish assembly or protector if they are deformed during removal.
1. Attach the protective tape to the periphery of the garnish and protector.
2. Heat the garnish and protector sections for 3 - 5 minutes at 40 - 60°C using a heat light or a drier.
  CAUTION: Be careful not to burn yourself.
3. Separate the bonded part of double sided tape with a nylon cord or equivalent.
4. Release the clips, and remove the garnish assembly and protector.
