Roof Spoiler: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the trim panel - rear gate UPR. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the roof spoiler assembly.
    1. Disconnect the connector of high-mounted stop light.
    2. Remove the caps, and remove the bolts.
    3. Remove the nuts.
    4. Remove the nuts, and then remove the roof spoiler assembly.

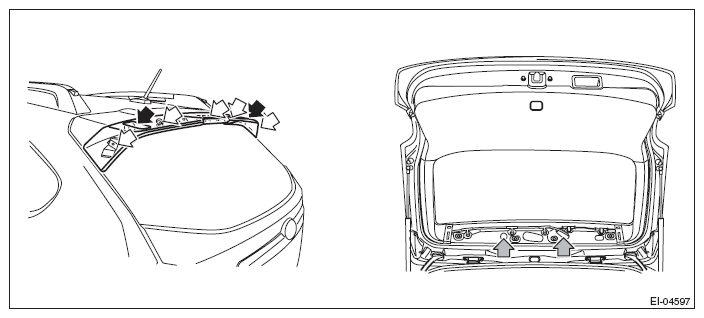

      Fig 1: Locating Roof Spoiler Assembly Nuts
      G10320003Courtesy of SUBARU OF AMERICA, INC.
