Roof Rail: Removal
- Remove the trim panel - roof. < Ref. to
5 DOOR MODEL/CROSSTREK MODEL , REMOVAL, Roof Trim. >
- Remove the curtain airbag module. < Ref. to
5 DOOR MODEL/CROSSTREK MODEL
, REMOVAL, Curtain Airbag Module. >
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". < Ref. to
CAUTION
, General Description. >
- Be careful not to damage the curtain airbag module during removal.

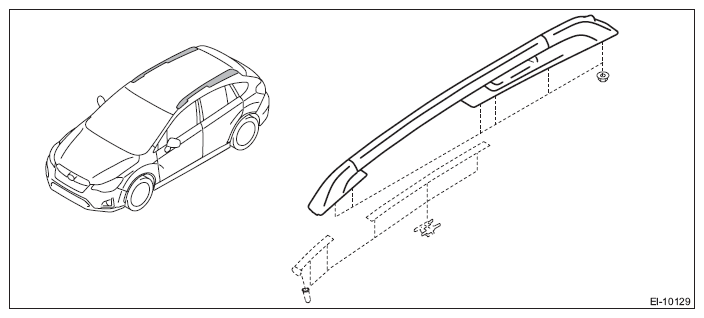

- Remove the six installing nuts.
Courtesy of SUBARU OF AMERICA, INC.
