Rear Spoiler: Removal

  1. Remove the trim panel - trunk lid. < Ref. to REMOVAL , Trunk Room Trim. >
  2. Detach the rear spoiler assembly.
    CAUTION:
    • When removing the nut, be careful not to drop the nut inside the trunk lid panel.
    • Be careful not to damage the vehicle body during removal and installation.
    1. Remove the nuts.
    2. Disengage the clips and remove the rear spoiler assembly.

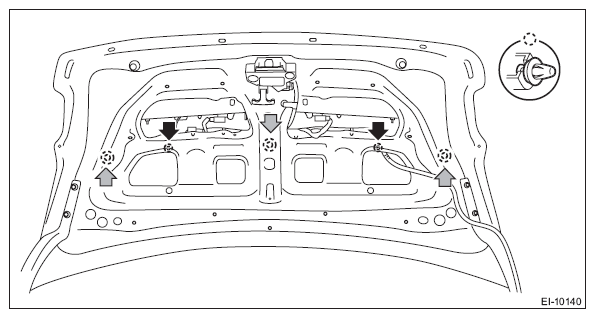

      Fig 1: Locating Rear Spoiler Assembly Clips And Nuts
      G10320002Courtesy of SUBARU OF AMERICA, INC.
