Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the screws and clips to remove the mud guard.

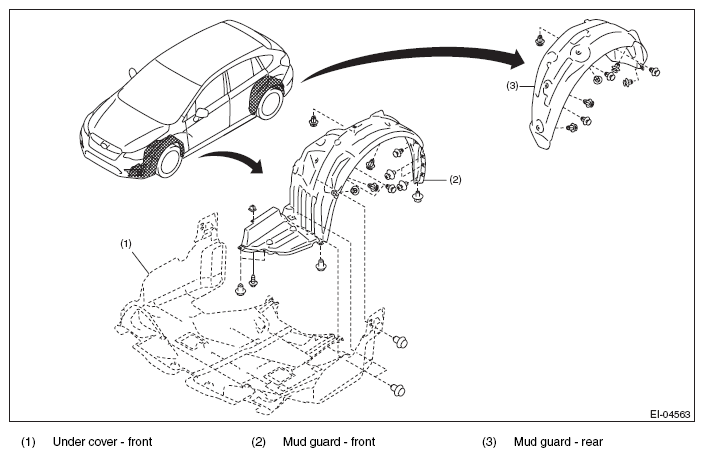

    Fig 1: Exploded View Of Mud Guard
    G10319952Courtesy of SUBARU OF AMERICA, INC.
