Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the bolts and clips, and remove the under cover - front.

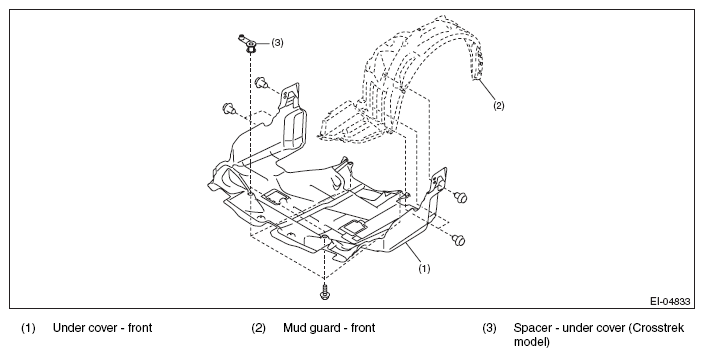

    Fig 1: Exploded View Of Front Under Cover
    G10319950Courtesy of SUBARU OF AMERICA, INC.
