Home >> Subaru >> 2016 >> BRZ Series.HyperBlue >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnostics (1 Of 3) >> DTC P000A A Camshaft Position Slow Response (Bank 1); DTC P000C A Camshaft Position Slow Response (Bank 2); DTC P0011 Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1); DTC P0021 Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 2) >> Circuit figure

Circuit figure

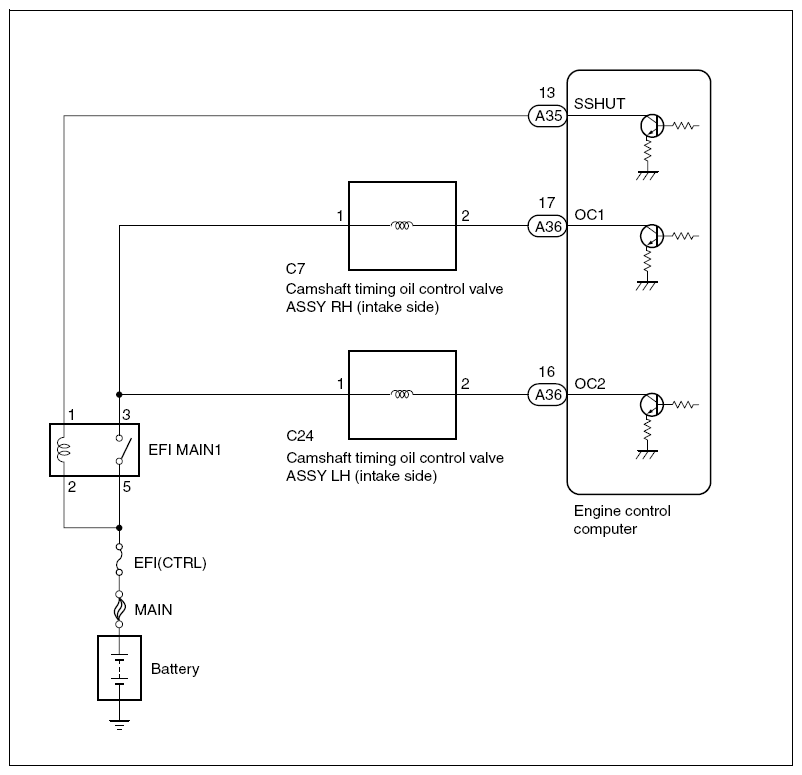

Fig 1: VVT System Circuit Diagram
G10212755Courtesy of SUBARU OF AMERICA, INC.
