Instrument Panel Upper: Installation

  1. Installation of instrument panel sub-assembly
    1. With the 2 bolts and 7 screws, install the instrument panel sub-assembly.

      Standard value: T=7 N.m {71 kgf.cm} {5.2 ft.lbf}

  2. Connection of passenger airbag module
    1. With the 2 bolts, connect the passenger airbag module.

      Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

    2. Connect the passenger airbag connector and clamp.
      Fig 1: Connecting Passenger Airbag Connector And Clamp
      G08555484Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of automatic light control sensor (with light control system) (Refer to INSTALLATION )
  4. Installation of instrument panel ornament
    1. Engage the 3 claws and 3 clips and install the instrument panel ornament.
  5. Installation of combination meter assembly (Refer to ASSEMBLY )
  6. Installation of front pillar garnish RH
    1. Remove the protective cover from the curtain airbag module.
    2. Check that the front pillar garnish clip is not damaged.
      CAUTION: If the front pillar garnish clip is damaged, be sure to replace it with a new clip.
    3. As shown in the figure, hook the end of the front pillar garnish clip onto the front pillar garnish RH.

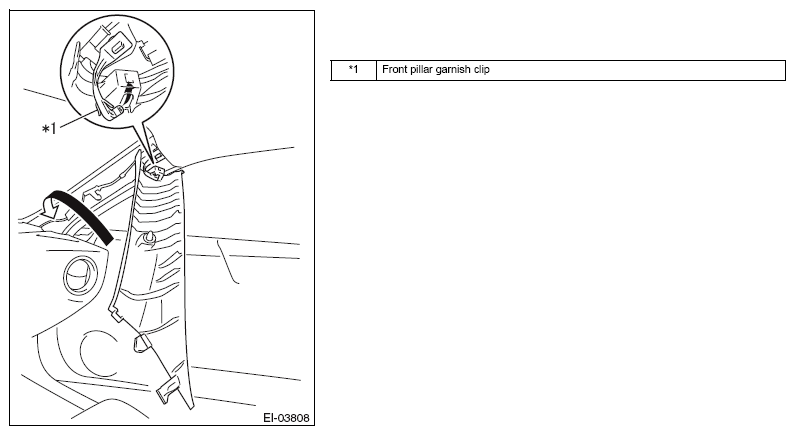

      Fig 2: Hooking Front Pillar Garnish Clip Onto Front Pillar Garnish
      G10217308Courtesy of SUBARU OF AMERICA, INC.
    4. Rotate the front pillar garnish RH in the direction of the arrow in the figure.
    5. Insert the 2 guides in the direction of the arrow < 1 > in the figure.
    6. Engage the clip and front pillar garnish clip in the direction of the arrow < 2 > in the figure, and install the front pillar garnish RH.

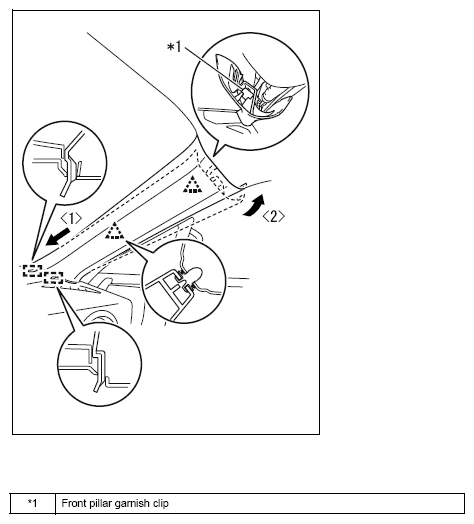

      Fig 3: Rotating Front Pillar Garnish RH
      G10217309Courtesy of SUBARU OF AMERICA, INC.
  7. Installation of front pillar garnish LH
    NOTE: Install the part in the same manner as RH side.
  8. Installation of speaker assembly front No. 2 (for 6 speakers) (Refer to INSTALLATION )
  9. Installation of instrument panel speaker panel sub-assembly No. 1
    1. In the order shown in the figure, engage the 6 claws and install instrument panel speaker panel sub-assembly No. 1.
      CAUTION: If the claws are not correctly inserted, the claws may be damaged.

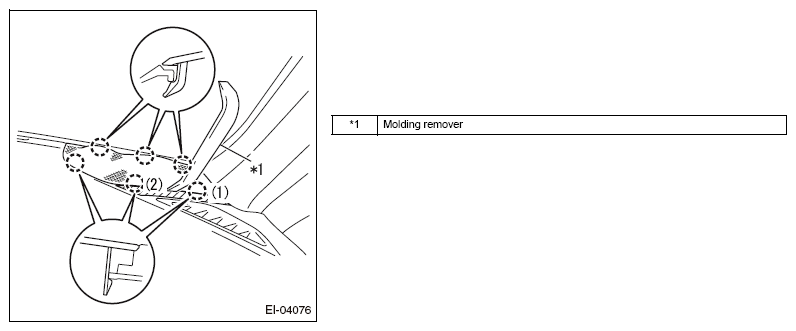

      Fig 4: Locating Instrument Panel Speaker Panel Sub-Assembly No. 1 Claws
      G10217310Courtesy of SUBARU OF AMERICA, INC.
  10. Installation of speaker assembly front No. 2 (for 6 speakers)
    NOTE: Install the part in the same manner as RH side.
  11. Installation of instrument panel speaker panel sub-assembly No. 2
    NOTE: Install the part in the same manner as RH side.
  12. Installation of instrument panel sub-assembly lower (Refer to INSTALLATION  )
  13. Connection of the battery ground terminal

    Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}

  14. Settings when removing/installing battery terminals (Refer to SETTING PROCEDURES AT PARTS REPLACEMENT AND REMOVAL/INSTALLATION )
  15. Inspection of the airbag warning light (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
