Roof Head Lining: Assembly

Installation of antenna cord sub-assembly No. 3 (Refer to INSTALLATION )
Installation of roof wire No. 1
1. Position roof wire No. 1 as shown in the figure and install the 2 guides.
  CAUTION: Do not allow roof wire No. 1 to be floated or twisted.

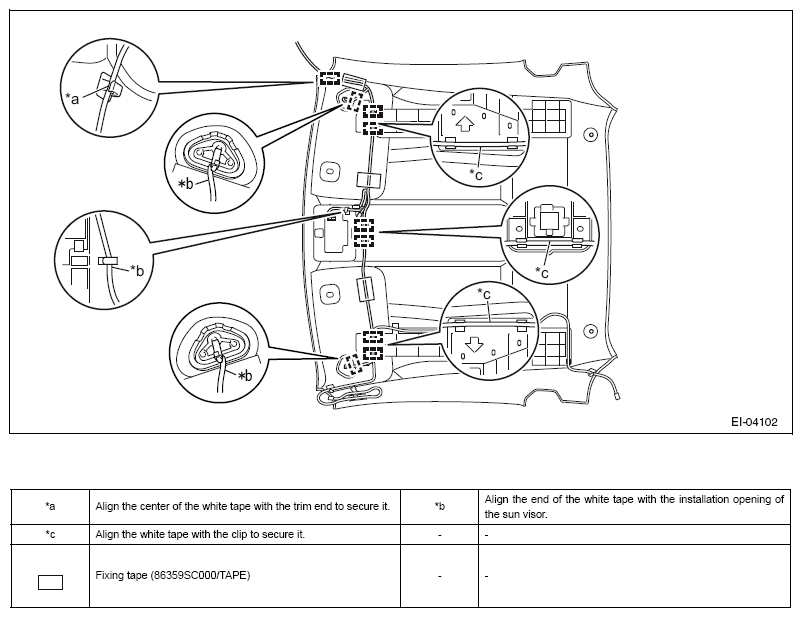

  Fig 1: Locating Roof Wire No. 1 Guides (With Vanity Light)
  Courtesy of SUBARU OF AMERICA, INC.
2. Attach the fixing tape and install roof wire No. 1.
  NOTE: Cut the fixing tape into the necessary size (Recommended: 50 mm X 80 mm, 2.0 in X 3.2 in) for use.
Installation of roof wire No. 1 (without vanity light)
1. Position roof wire No. 1 as shown in the figure and install the 2 guides.
  CAUTION: Do not allow roof wire No. 1 to be floated or twisted.

  Fig 2: Locating Roof Wire No. 1 Guides (With Vanity Light)
  Courtesy of SUBARU OF AMERICA, INC.
2. Attach the fixing tape and install roof wire No. 1.
  NOTE: Cut the fixing tape into the necessary size (Recommended: 50 mm X 80 mm, 2.0 in X 3.2 in) for use.
