Section 2 (Automatic Transmission (Service Information))
>>
TRANSMISSION VALVE BODY Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

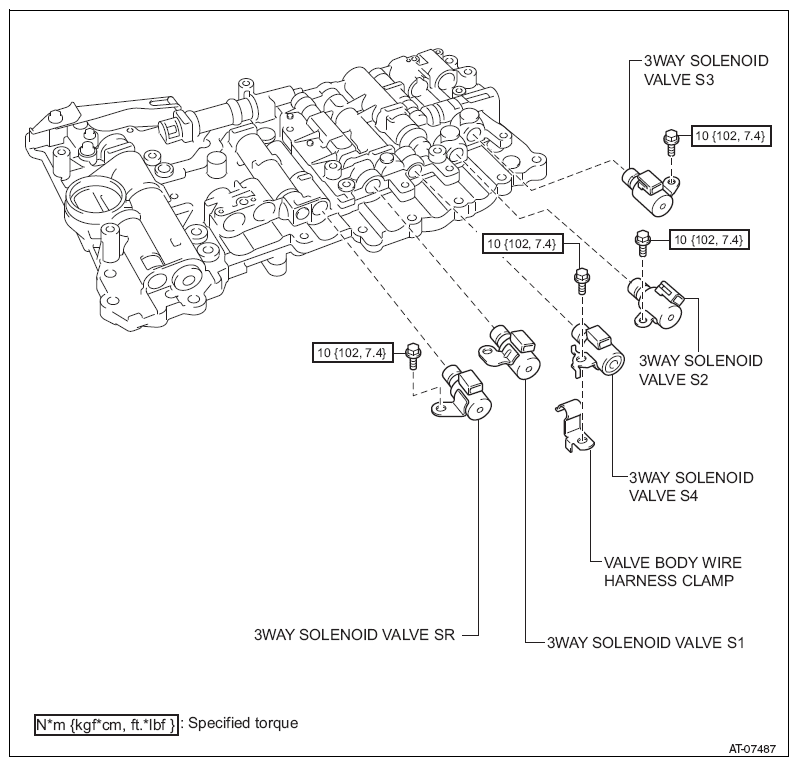

Fig 1: Exploded View Of Transmission Valve Body Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

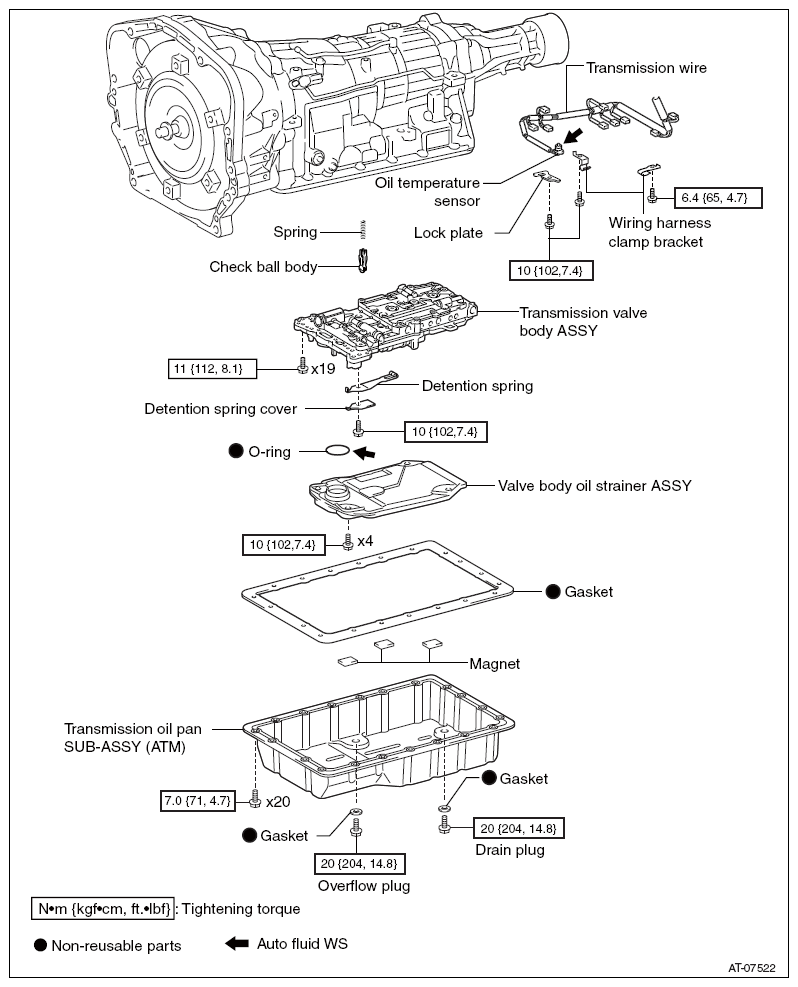

Fig 2: Exploded View Of Transmission Valve Body Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
