Exploded View

WARNING: This page is about a different variant/trim than selected.

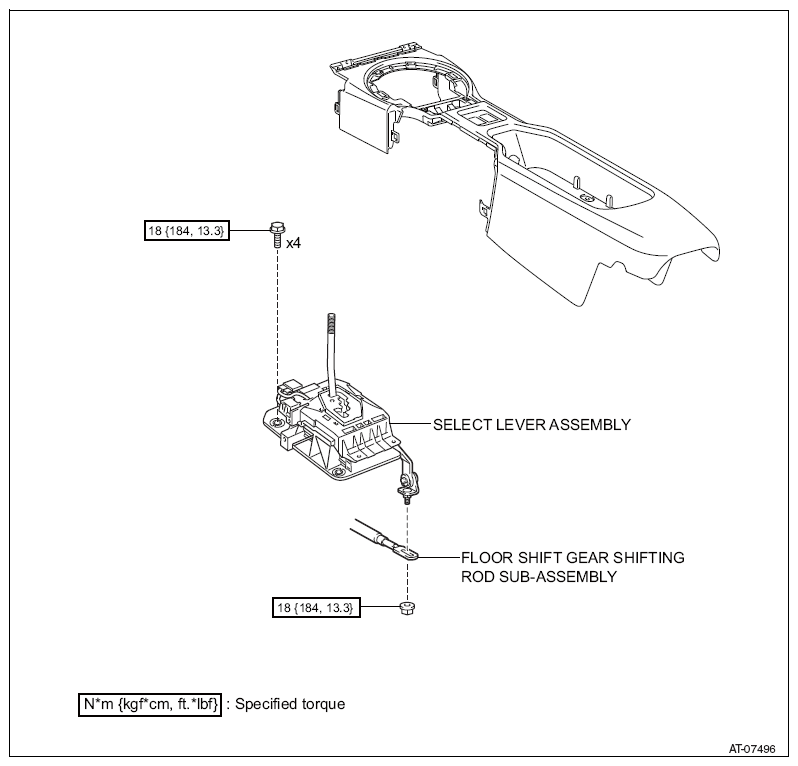

Fig 1: Exploded View Of Select Lever With Torque Specifications (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Exploded View Of Select Lever With Torque Specifications (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

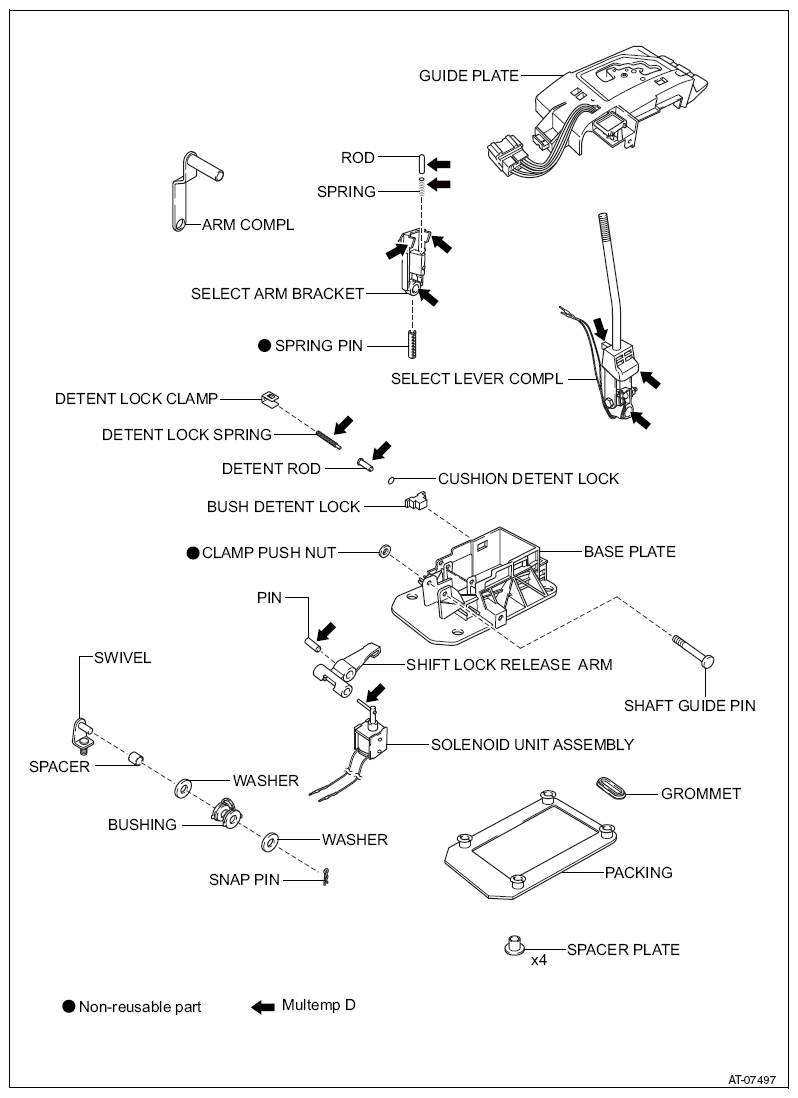

Fig 3: Exploded View Of Select Lever (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
