Exploded View

WARNING: This page is about a different variant/trim than selected.

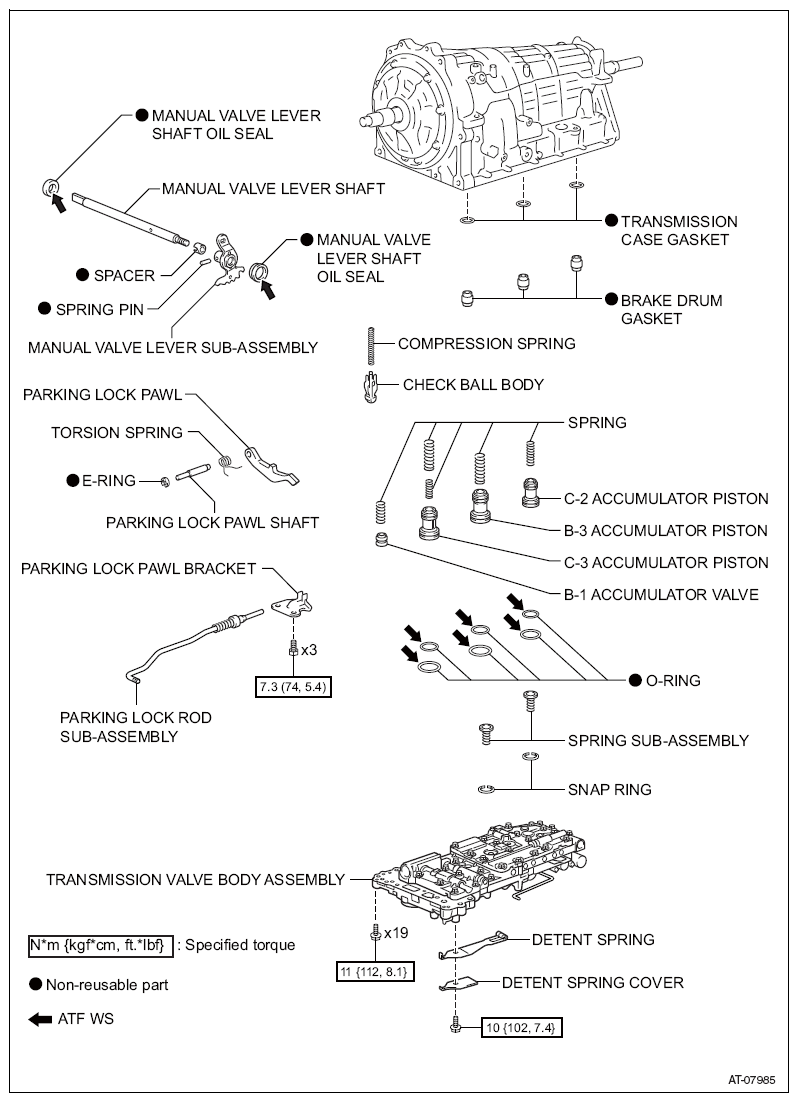

Fig 1: Exploded View Of Automatic Transmission Unit With Torque Specifications (1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

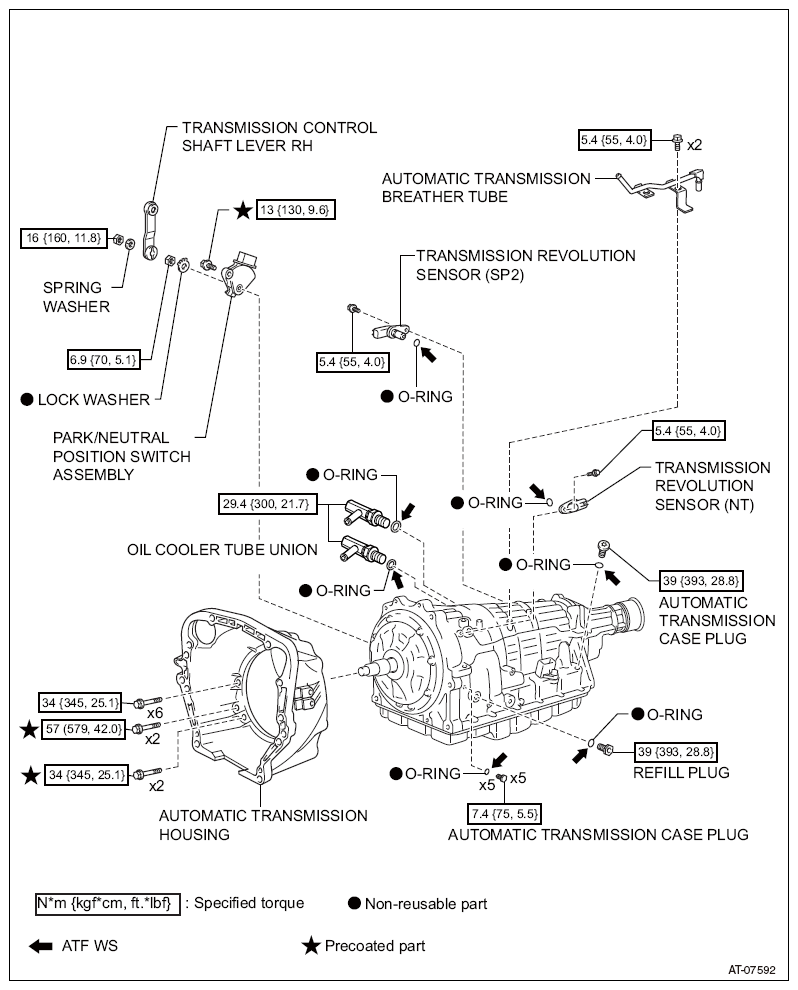

Fig 2: Exploded View Of Automatic Transmission Unit With Torque Specifications (2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

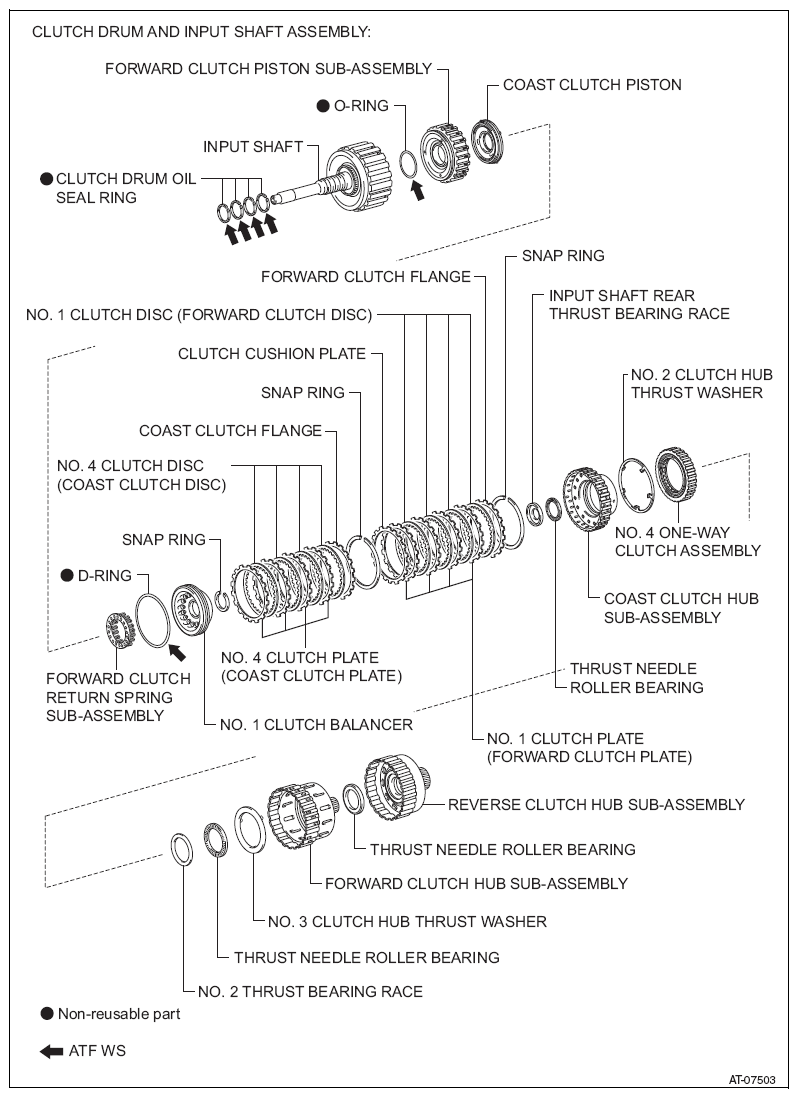

Fig 3: Exploded View Of Automatic Transmission Unit With Torque Specifications (3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

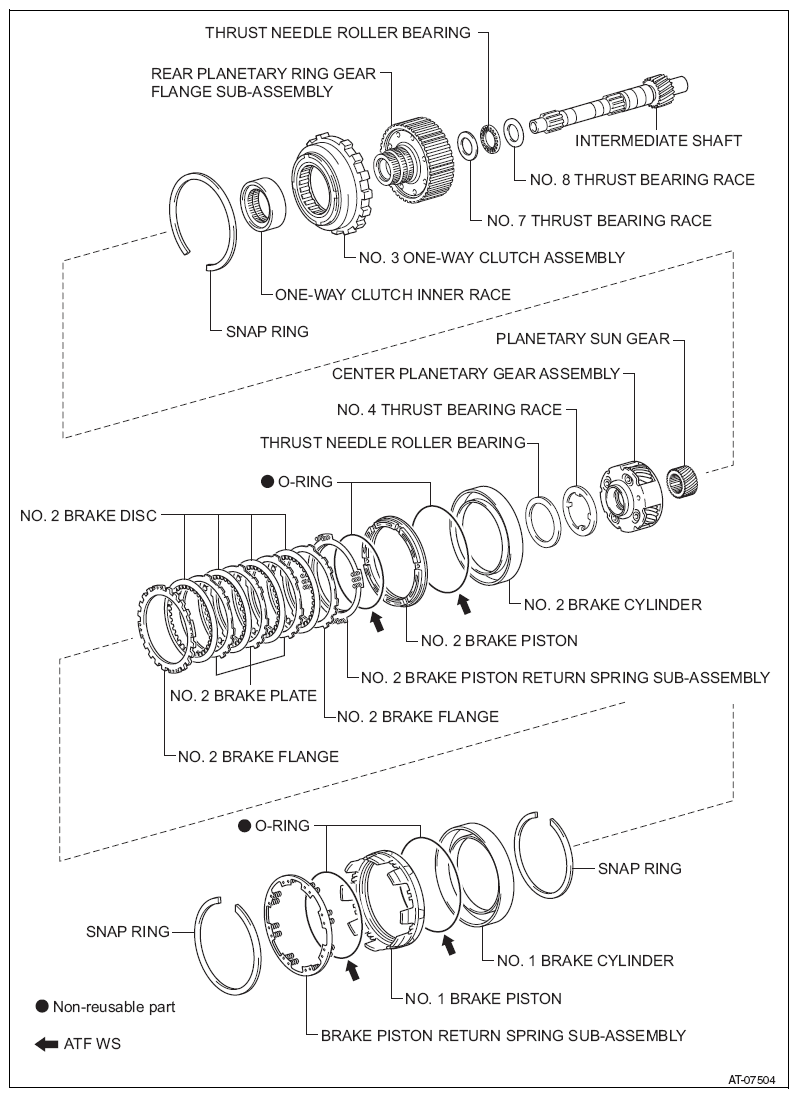

Fig 4: Exploded View Of Automatic Transmission Unit With Torque Specifications (4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

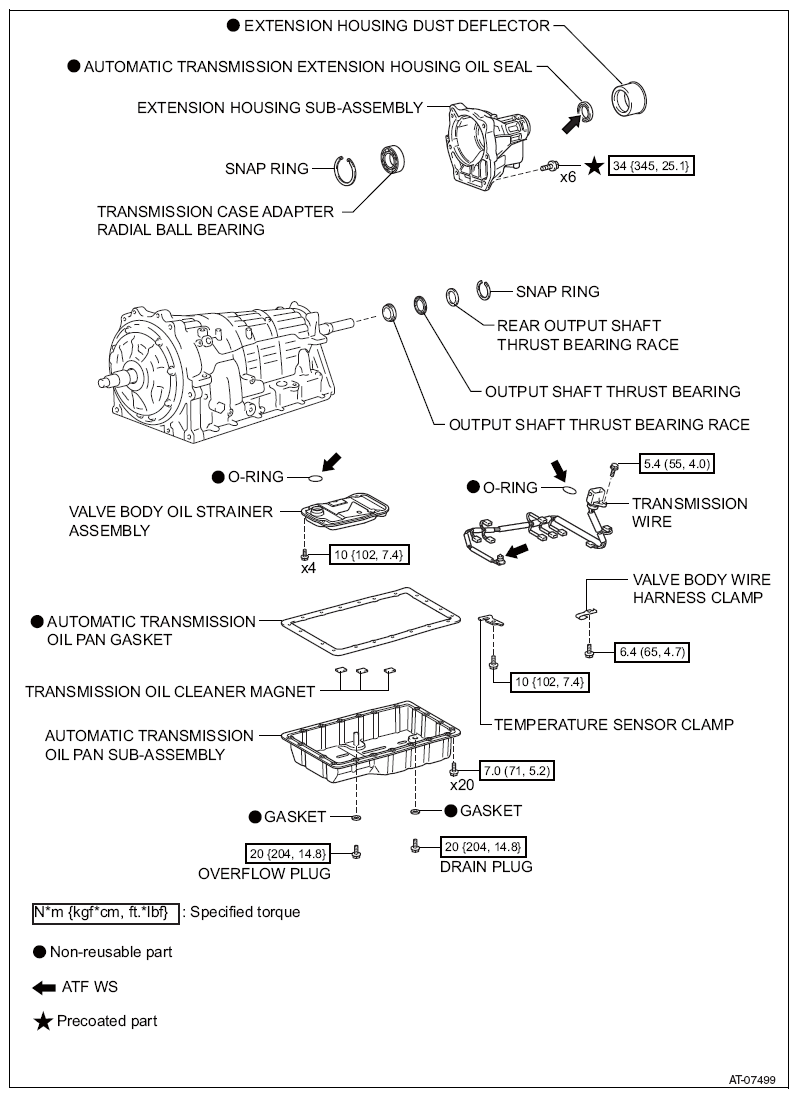

Fig 5: Exploded View Of Automatic Transmission Unit (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

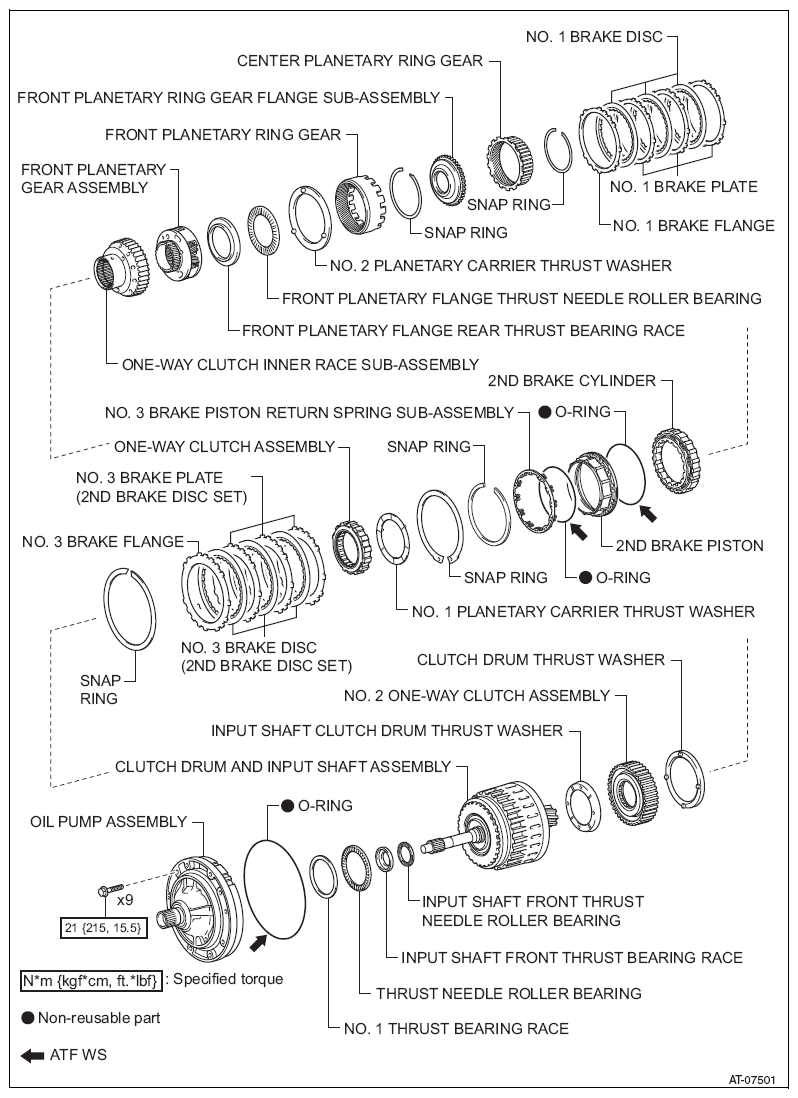

Fig 6: Exploded View Of Automatic Transmission Unit (6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

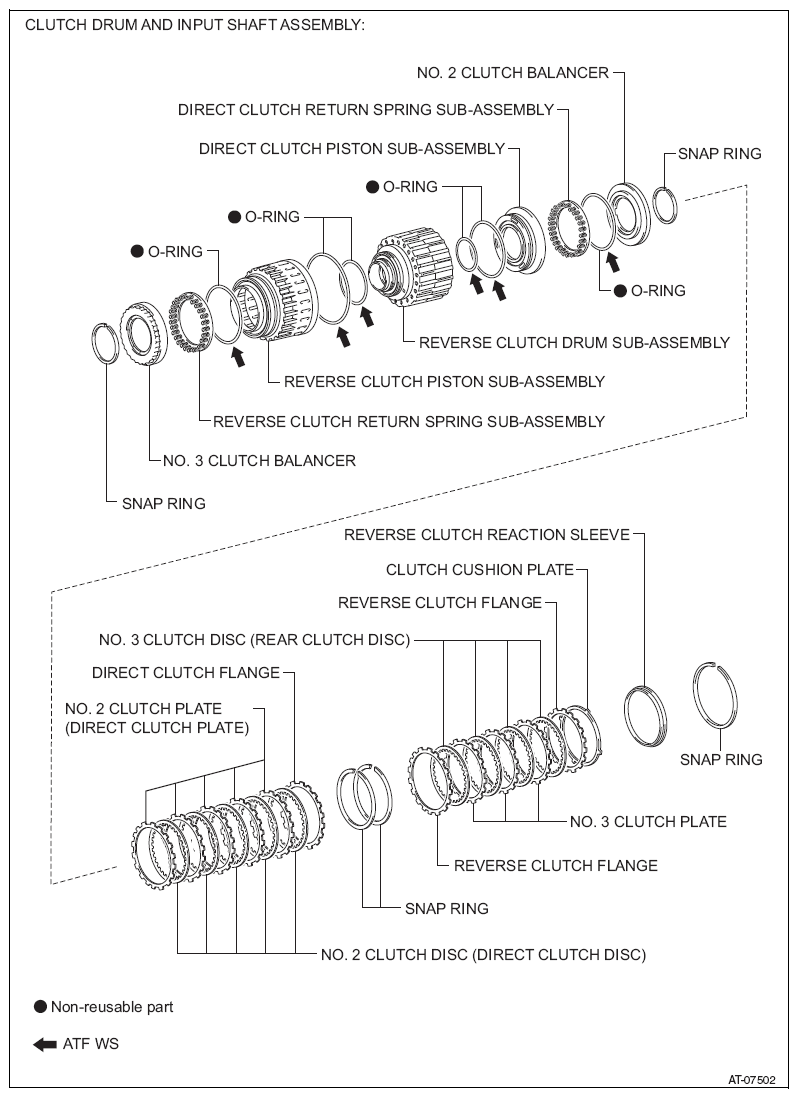

Fig 7: Exploded View Of Automatic Transmission Unit (7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

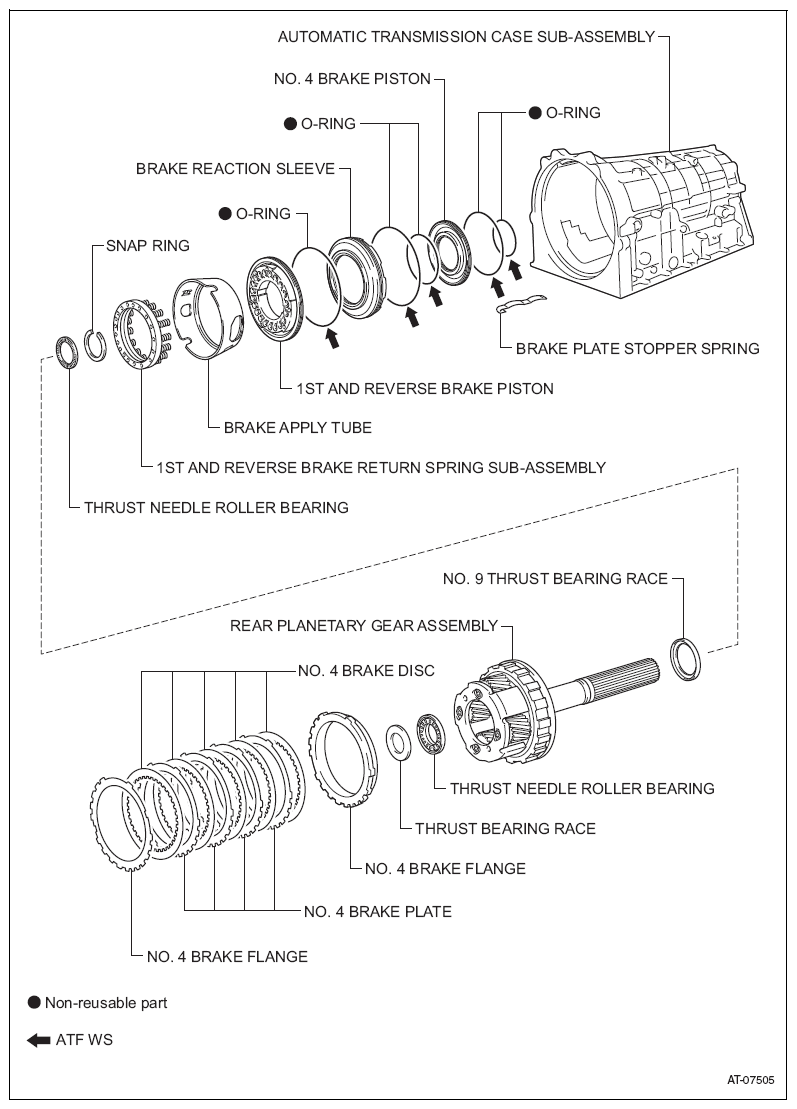

Fig 8: Exploded View Of Automatic Transmission Unit (8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
