Section 1 (Automatic Transmission (Diagnostics))
>>
Automatic Transmission System
>>
Parts Location
Parts Location
WARNING:
This page is about a different variant/trim than selected.

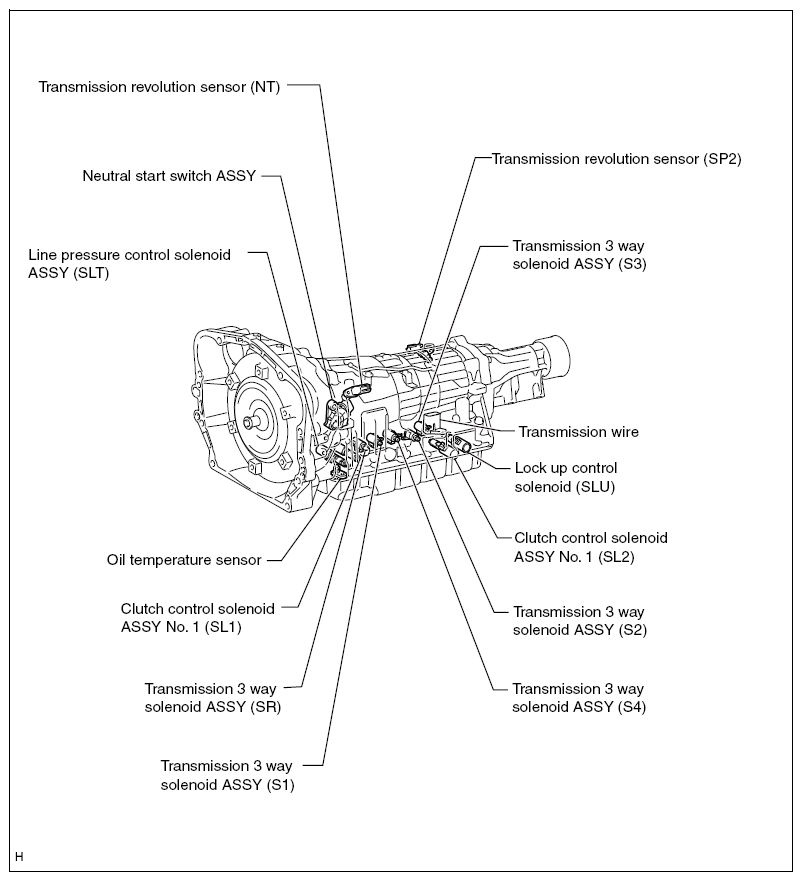

Fig 1: Automatic Transmission Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

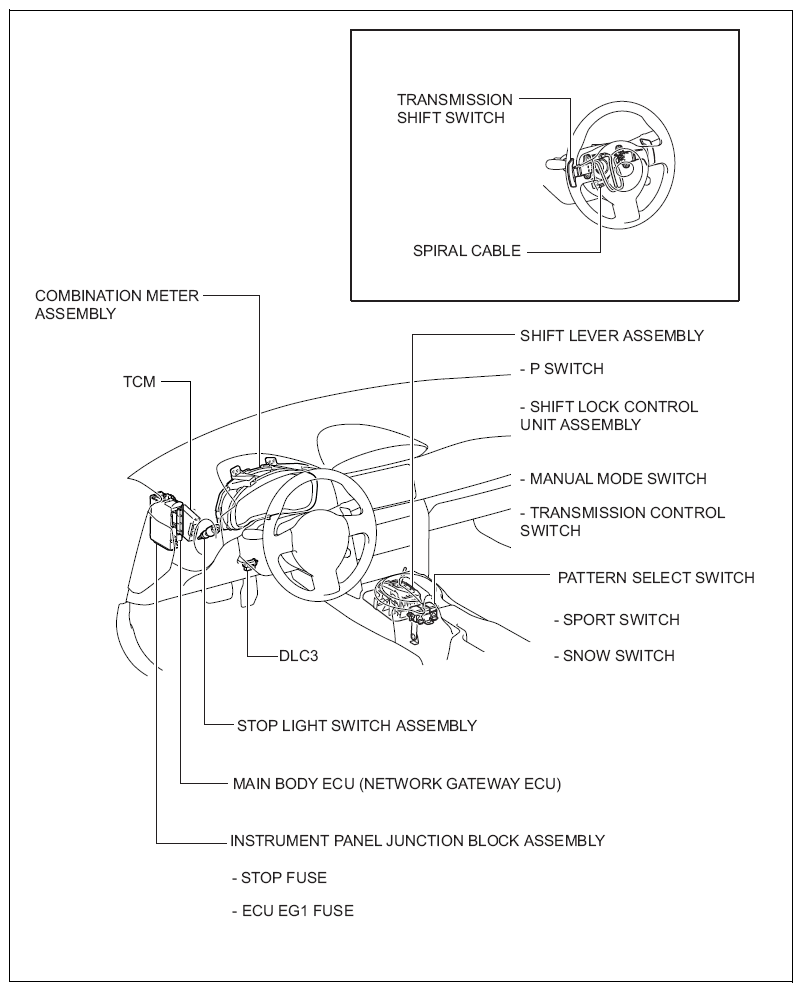

Fig 2: Automatic Transmission Components Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
