Section 1 (Automatic Transmission (Diagnostics))
>>
Automatic Transmission System
>>
DTC P2714 Pressure Control Solenoid "D" Performance/Stuck Off; DTC P0894 Transmission Component Slipping
>>
Circuit figure
Circuit figure
WARNING:
This page is about a different variant/trim than selected.

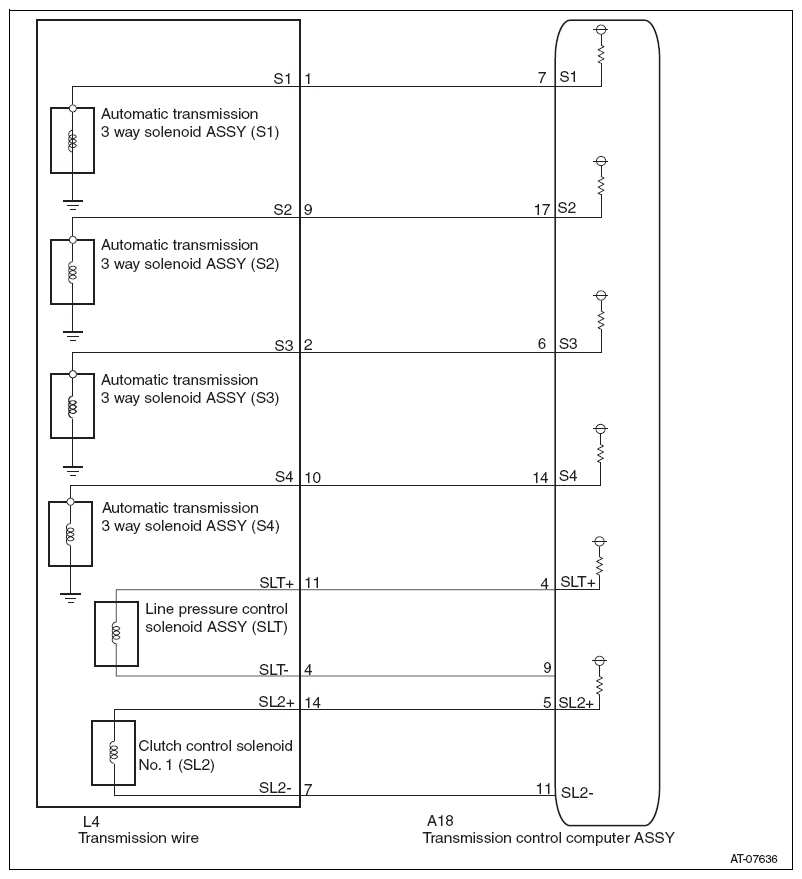

Fig 1: Transmission Control Computer Assembly Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
