Section 1 (Automatic Transmission (Diagnostics))
>>
Automatic Transmission System
>>
Circuit Figure
Circuit Figure
WARNING:
This page is about a different variant/trim than selected.

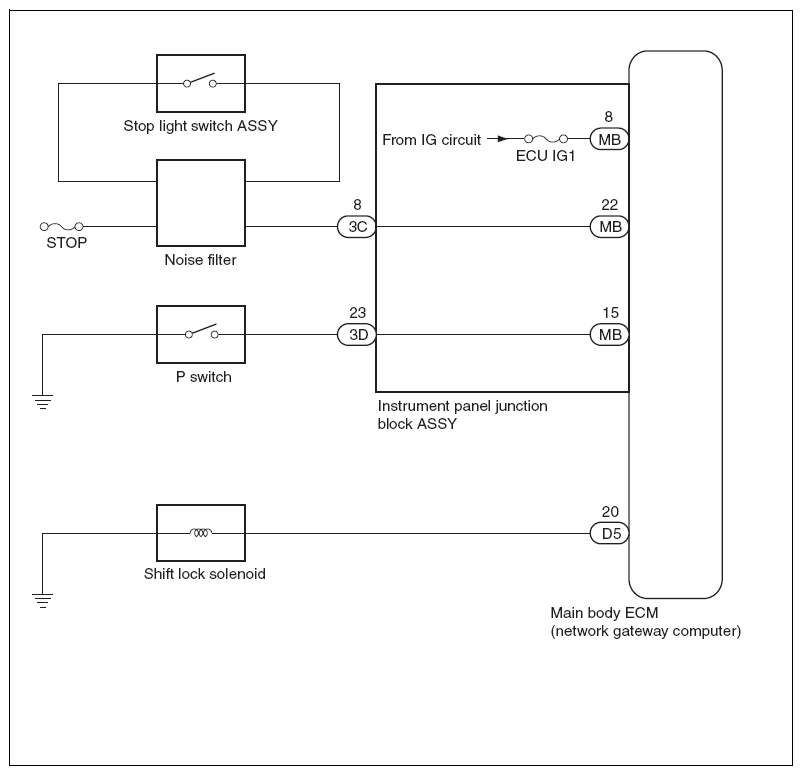

Fig 1: Transmission Control Computer Assembly Circuit Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

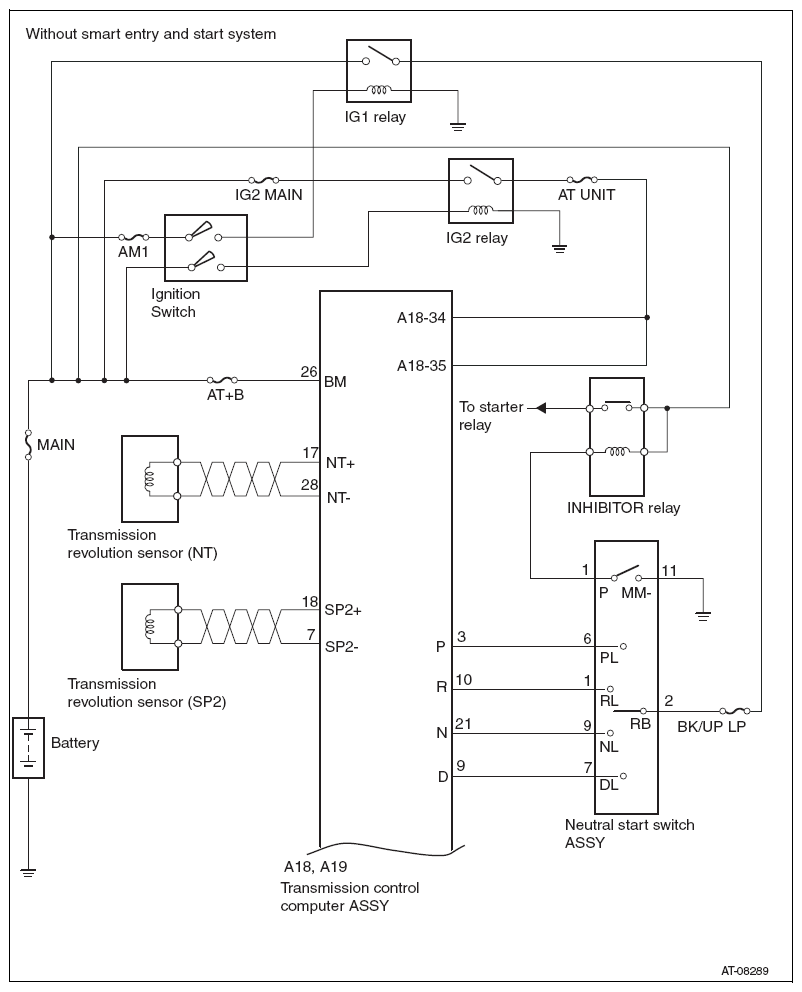

Fig 2: Transmission Control Computer Assembly Circuit Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

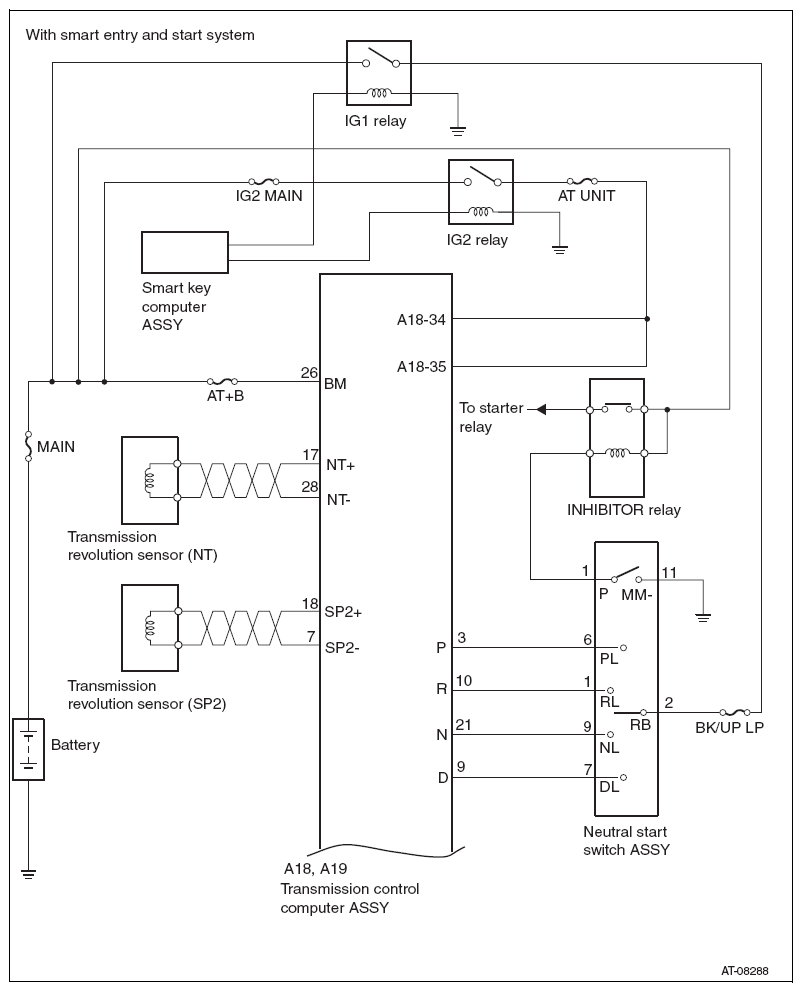

Fig 3: Transmission Control Computer Assembly Circuit Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

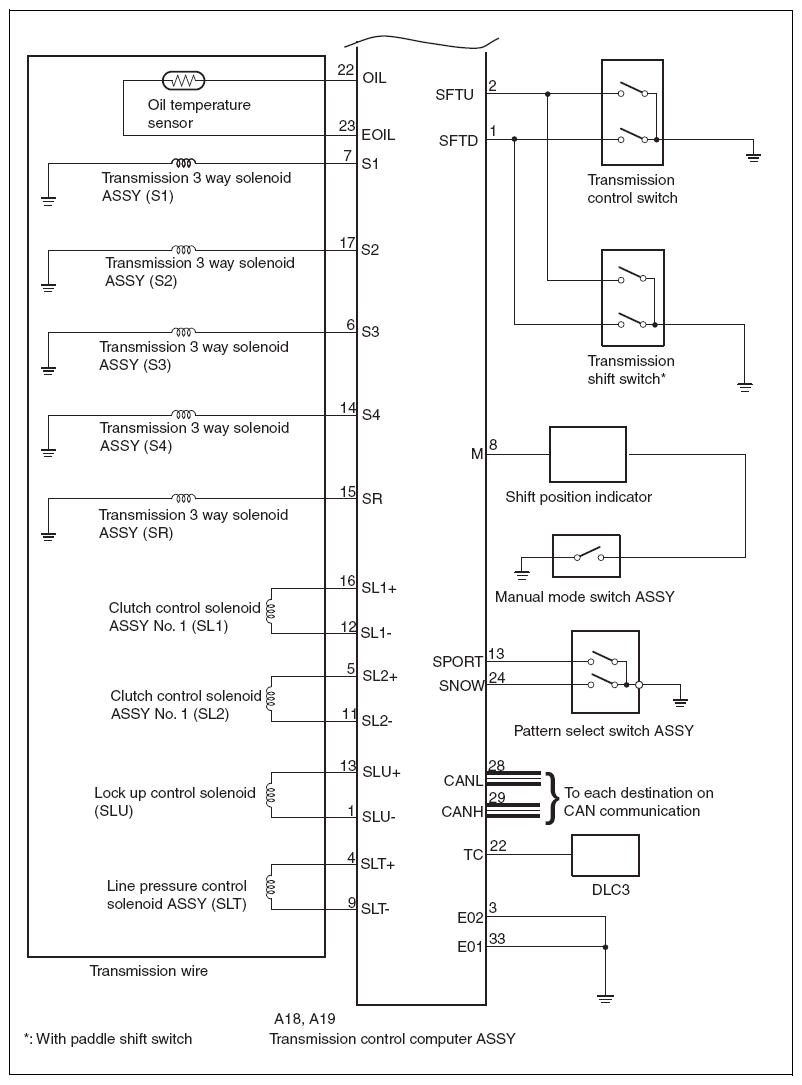

Fig 4: Transmission Control Computer Assembly Circuit Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
