Starter Assembly (Fa20): Removal

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Removal of under cover COMPL T/M (Refer to REMOVAL )
Removal of exhaust pipe assembly FR (Refer to INSTALLATION )
Removal of starter assembly
1. Disconnect the connector and terminal from the starter assembly.

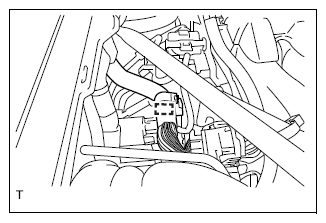

  Fig 1: Locating Starter Assembly Connector And Terminal
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the wiring harness clamp.

  Fig 2: Identifying Wiring Harness Clamp
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the upper mounting bolt.

  Fig 3: Locating Upper Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the lower mounting bolt.
  1. Remove the ground cable fixing bolt A.
  2. Remove the lower mounting bolt B.
  3. Remove the starter assembly.

    Fig 4: Locating Ground Cable Fixing Bolt And Lower Mounting Bolt
    Courtesy of SUBARU OF AMERICA, INC.
