Exhaust Manifold (Fa20): Removal

Removal of air/fuel ratio sensor (Refer to AIR/FUEL RATIO SENSOR (FA20) )
Removal of oxygen sensor (Refer to REMOVAL )
Removal of under cover Compl T/M (Refer to REMOVAL )
Removal of exhaust pipe assembly FR (Refer to REMOVAL )
Exhaust manifold removal
1. Remove the two nuts and remove the exhaust pipe sub-assembly FR.
2. Remove the gasket.

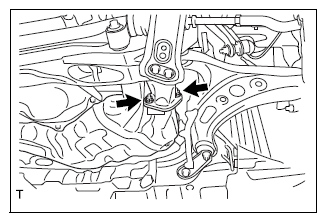

  Fig 1: Locating Exhaust Pipe Sub-Assembly Nuts
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the six nuts and remove the exhaust manifold.
4. Remove the two gaskets.

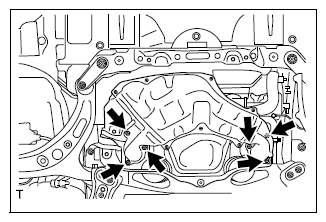

  Fig 2: Locating Exhaust Manifold Nuts
  Courtesy of SUBARU OF AMERICA, INC.
