Roof Head Lining: Installation

1. Bring the roof head lining assembly into the vehicle through the passenger's door as shown in the figure so that the assembly does not interfere with the body interior.
   CAUTION:

   • To prevent distortion of the roof head lining assembly, bring in the assembly with at least two persons.
   • Do not allow the roof head lining to be stuck, resulting in bent or damaged lining.
   • Do not damage the roof head lining assembly and body interior.
2. Engage the clip at the front of the vehicle.
3. Connect the connector of antenna code sub-assembly No. 3.
4. Install the 3 clips at the rear of the vehicle.
5. Connect the connector of the front pillar RH and the 3 clamps.
6. Connect the connector of the front pillar LH and the 2 clamps.
   Fig 1: Installing Roof Head Lining Assembly

   Courtesy of SUBARU OF AMERICA, INC.

1. Engage the 2 claws and install the 2 visor holders.

1. Connect the connector.
2. With the 2 screws, install the visor assembly RH.

1. Engage the clip (A) and the 2 guides.
2. With the clip (B) and 2 bolts, install the center pillar garnish LH.

   Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

   CAUTION: Do not reuse the upper clip (A) of the center pillar garnish RH.
   Once it is removed, the clip looses its affixing capability. Be sure to replace it with a new clip.

1. Engage the clip and claw.
2. With the 2 bolts, install the quarter rear trim garnish front LH.

   Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

1. Engage the 2 clips and insert the guide.
2. With the bolt, install the rear window side garnish LH.

   Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

1. Install the 2 tether clips on the quarter trim lid LH.
   Fig 2: Installing Tether Clips On Quarter Trim Lid LH

   Courtesy of SUBARU OF AMERICA, INC.
   CAUTION: If it is damaged, be sure to replace the tether clip with a new one.
2. Fit in the 2 guides.
3. Engage the 2 clips and 6 claws and install the quarter trim lid LH.

1. Engage the 8 clips and 8 claws and install the quarter lower trim LH.
2. Install the clip.

1. Tilt the rear seat backrest assembly forward.
2. Install the 2 clips and install the trunk trim cover inner LH.

1. Engage the 2 clips and install the cowl side trim board LH.
2. Install the clip.

1. Engage the 6 claws and install the front door scuff plate LH.

1. Install the front door opening trim weather strip LH.
   CAUTION: After installation, make sure no lifting on any corner.
   NOTE: Install the paint marked part on the center of the body flange cutout. Pushing into the corner makes the installation easy.

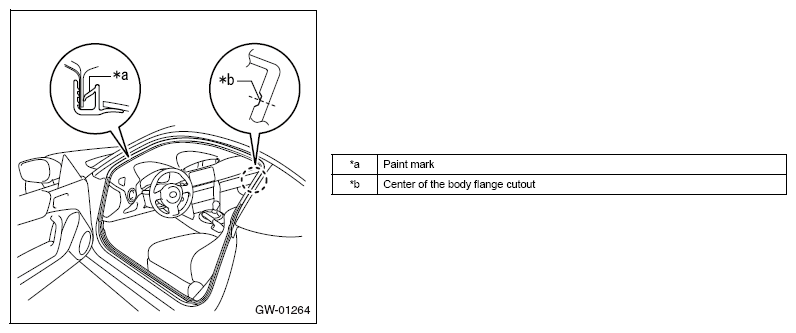

   Fig 3: Locating Paint Mark And Center Of Body Flange Cutout

   Courtesy of SUBARU OF AMERICA, INC.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
